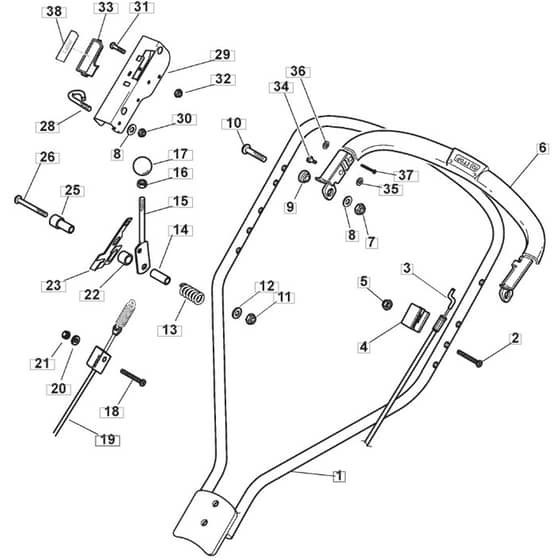

5030 PD INOX - 2009 - 291562033/M09 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield 5030 PD INOX Parts Diagram

Product Name - MULCHING 5030 PD INOX

Model Year - 2009

Model Type - MCS 504 TR

Art.N - 291562033/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006367/2 Out of stock	Handle. Upper Part Black Black From 01-9-2011 To 31-8-2013	£108.22 £90.18

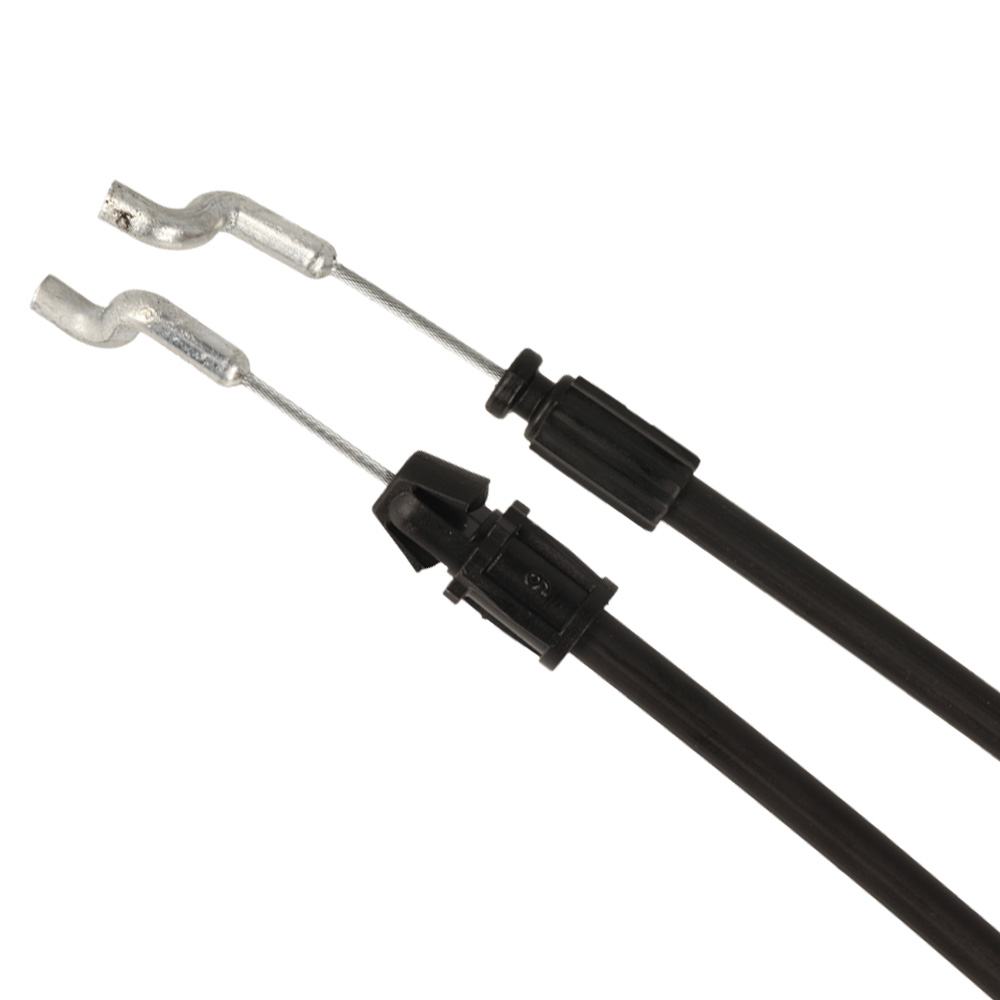

3	MO181000733/0 Out of stock	Cable. Thread Engine Brake - Honda Engine	£12.05 £10.04
4	MO322551639/0 In stock	Cable Holder	£13.50 £11.25
6	MO381003318/1 Out of stock	Lever. Engine Brake	£31.82 £26.52
9	MO122671660/1 Out of stock	Washer	£3.89 £3.24
10	MO112727784/0 Out of stock	Screw	£1.34 £1.12
11	MO112154510/0 In stock	Nut	£1.48 £1.23
12	MO112521330/0 Out of stock	Washer	£1.48 £1.23
13	MO122450446/0 Out of stock	Spring	£1.48 £1.23
14	MO122170840/0 Out of stock	Spacer	£5.89 £4.91
15	MO381003313/0 Out of stock	Driving Lever	£14.89 £12.41
16	MO112293200/0 In stock	Nut	£1.48 £1.23
17	MO322399812/0 Out of stock	Knob	£2.93 £2.44
18	MO112727791/0 Out of stock	Screw	£1.48 £1.23
19	MO381030095/0 Out of stock	Cable Rear Drive From 01-9-2012	£21.52 £17.93
19	MO381000745/1 Out of stock	Cable Rear Drive From 01-9-2008 To 31-8-2012	£21.38 £17.82
22	MO122170843/0 Out of stock	Spacer	£1.52 £1.27
23	MO322551653/0 Out of stock	Plate	£3.95 £3.29
25	MO122170842/0 Out of stock	Spacer	£2.54 £2.12
26	MO112727786/0 Out of stock	Screw	£1.87 £1.56
28	MO122430314/0 Out of stock	Starting Rope Guide Spring	£5.63 £4.69
29	MO381004405/0 Out of stock	Dashboard	£19.61 £16.34
31	MO112727792/0 Out of stock	Screw	£1.48 £1.23
33	MO322500050/0 Out of stock	Shoe	£1.66 £1.38
34	MO122524342/0 Out of stock	Pin	£1.61 £1.34
35	MO112604897/0 Out of stock	Elastic Washer	£1.48 £1.23
36	MO112154330/0 Out of stock	Nut	£1.48 £1.23
37	MO112727796/0 Out of stock	Screw	£1.48 £1.23
