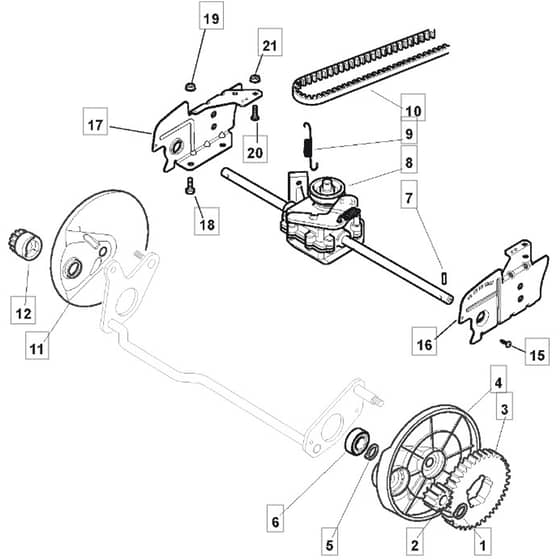

5010 PD SILENT - 2009 - 291552043/M09 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield 5010 PD SILENT Parts Diagram

Product Name - MULCHING 5010 PD SILENT

Model Year - 2009

Model Type - MCS 504 TR SIL

Art.N - 291552043/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 Out of stock	Seeger	£1.48 £1.23
2	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
3	MO122120105/2 Out of stock	Ring Gear	£9.44 £7.87
4	MO122600092/0 Out of stock	Right Wheel Protection	£3.22 £2.68
6	MO119216035/0 Out of stock	Bearing	£3.35 £2.79
7	MO122753000/0 In stock	Pin	£1.48 £1.23
8	MO181003095/0 Out of stock	Gear Box	£91.06 £75.88
9	MO122450437/0 Out of stock	Spring	£2.94 £2.45
10	MO135063902/1 In stock	Belt	£9.44 £7.87
11	MO122600093/0 Out of stock	Left Wheel Protection	£3.22 £2.68
12	MO122570110/1 In stock	Right Pinion	£7.03 £5.86
15	MO112728450/0 In stock	Screw	£1.48 £1.23
16	MO322778421/0 Out of stock	Left Bracket	£13.24 £11.03
17	MO322778419/0 Out of stock	Right Bracket	£13.24 £11.03
18	MO112792611/0 Out of stock	Screw	£1.48 £1.23
19	MO112293201/0 In stock	Nut	£1.61 £1.34
20	MO112815200/0 In stock	Screw	£1.48 £1.23
21	MO112292102/0 In stock	Flanged Hexagonal Nut M6	£1.61 £1.34
