483R - 2007 - 292505043/MOR - Mountfield Rotary Mower Roller Assembly Diagram

Description

Mountfield 483R Parts Diagram

Product Name - 483R

Model Year - 2007

Model Type - TU 504 TR-R 4S

Art.N - 292505043/MOR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.49 £1.24
1	MO112000957/0 Out of stock	Benzing Ring	£1.49 £1.24
2	MO122671659/0 Out of stock	Washer To 31-8-2014	£1.49 £1.24
2	MO112521370/0 Out of stock	Washer From 01-9-2014	£1.49 £1.24
3	MO112520032/0 Out of stock	Washer	£1.49 £1.24
4	MO119035152/0 Out of stock	Grommet	£4.60 £3.83
5	MO322785153/0 In stock	Gear Box Support	£15.04 £12.53

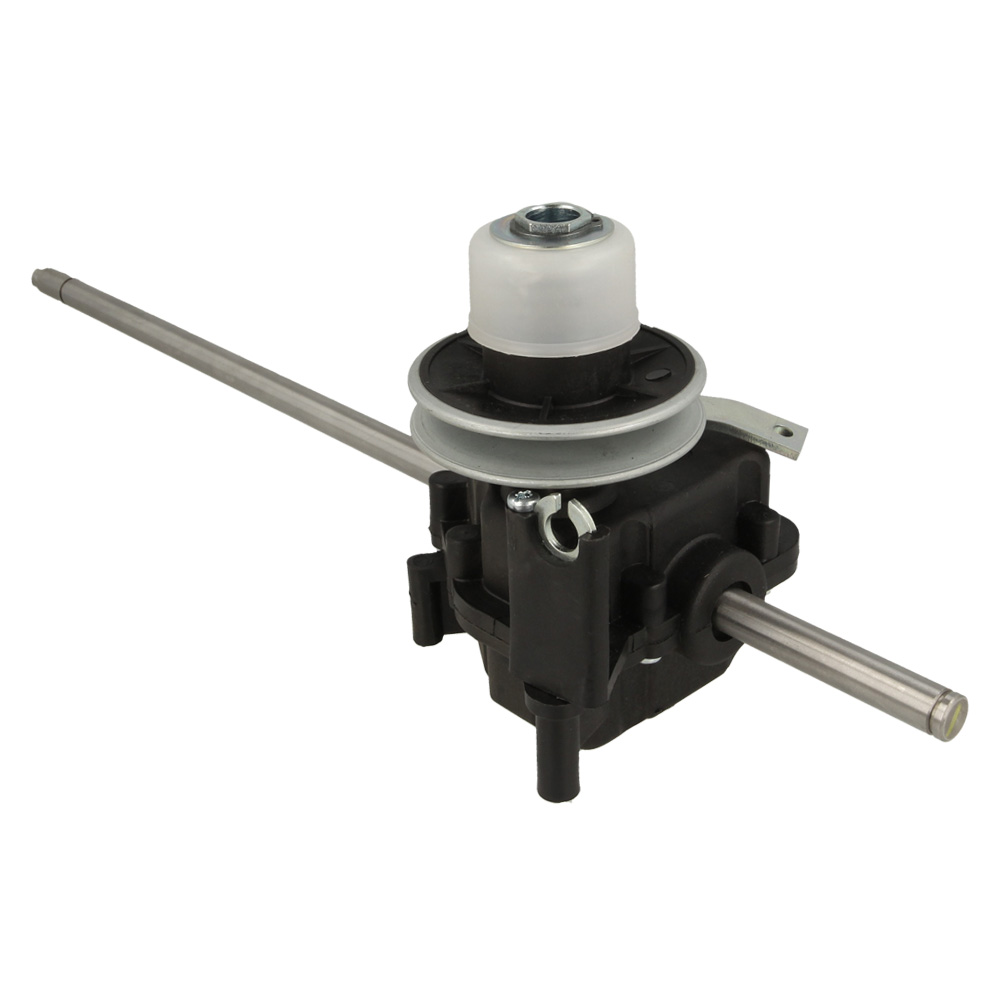

6	MO181003087/1 Out of stock	Gear Box F.R.	£230.26 £191.88

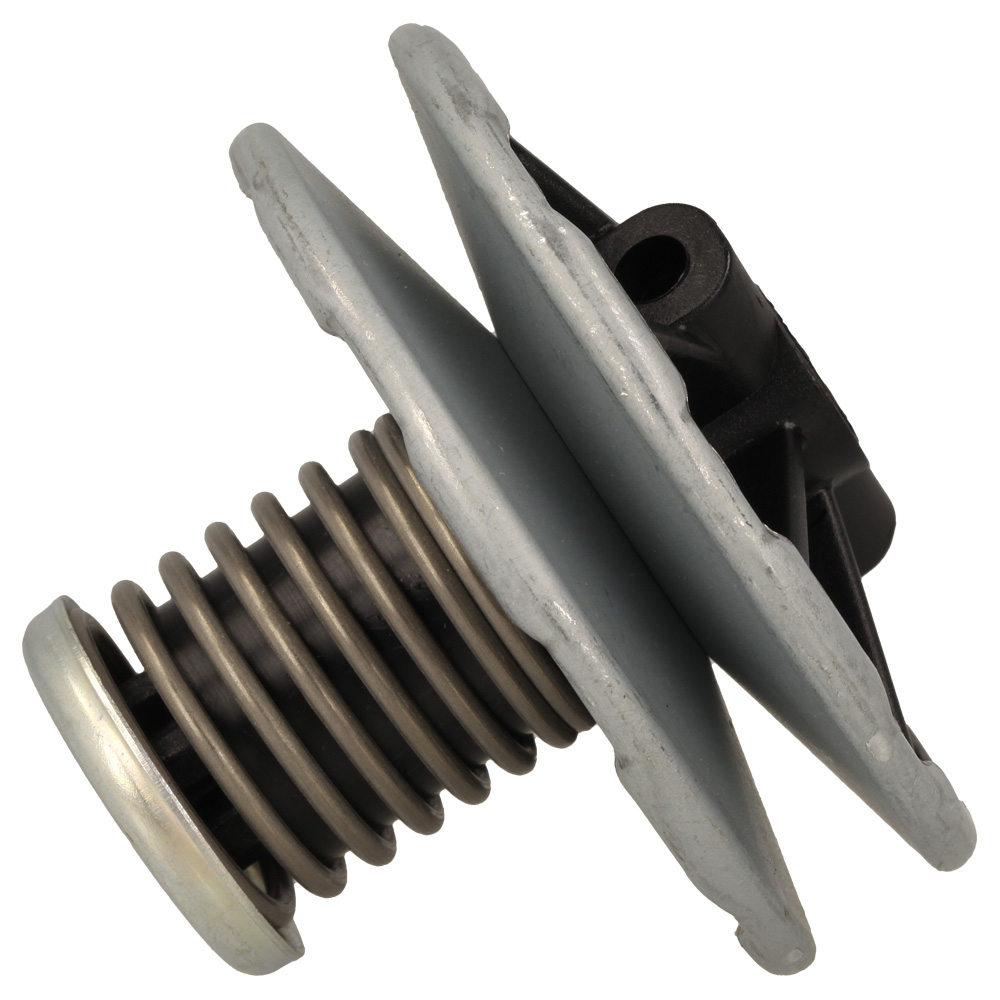

7	MO122601932/0 Out of stock	Pulley From 01-9-2013	£55.26 £46.05
7	MO122601916/0 Out of stock	Belt Pulley To 31-8-2013	£61.33 £51.11
8	MO112645700/0 Out of stock	Elastic Pin	£1.49 £1.24
9	MO1111-3423-01 Out of stock	Ring Gear	£14.23 £11.86
10	MO1111-3424-01 In stock	Ring Gear	£17.62 £14.68
11	MO1111-3562-01 In stock	Chain	£19.31 £16.09
12	MO112735662/1 Out of stock	Screw	£2.30 £1.92
13	MO112523040/0 In stock	Washer	£1.49 £1.24
14	MO112735664/0 In stock	Screw	£1.36 £1.13
15	MO122601917/0 Out of stock	Pulley. Crankshaft Ø 22.2	£23.44 £19.53
16	MO112714312/0 Out of stock	Grub Screw	£1.49 £1.24
17	MO112735669/0 Out of stock	Screw	£1.49 £1.24
18	MO122671656/0 Out of stock	Washer	£7.03 £5.86
20	MO122601915/0 In stock	Pulley	£20.58 £17.15
22	MO112674550/0 Out of stock	Screw	£1.49 £1.24
23	MO122601914/0 In stock	Pulley	£20.72 £17.27
24	MO112154510/0 In stock	Nut	£1.49 £1.24
25	MO112728300/0 Out of stock	Screw	£1.49 £1.24
27	MO322778409/0 Out of stock	Clamp	£14.89 £12.41
29	MO322806619/0 Out of stock	Support	£4.48 £3.73
30	MO135064378/0 In stock	Belt	£13.09 £10.91
31	MO112735592/0 Out of stock	Self-Tap Screw M6 X 20	£1.90 £1.58
