4830 PD BW - 2009 - 294487033/M09 - Mountfield Rotary Mower Lower Handle Diagram

Description

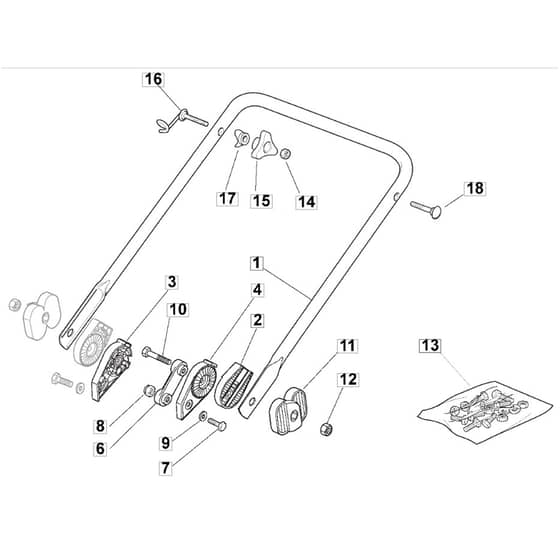

Mountfield 4830 PD BW Parts Diagram

Product Name - 4830 PD BW

Model Year - 2009

Model Type - TDL 484 W TR

Art.N - 294487033/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006532/0 In stock	Handle	£36.56 £30.47
2	MO322785081/1 Out of stock	Support. External From 01-9-2003	£4.60 £3.83
3	MO122785082/0 Out of stock	Right Internal Support	£3.25 £2.71
4	MO122785083/1 Out of stock	Left Internal Support	£3.25 £2.71
6	MO122551575/0 Out of stock	Inside Plaque	£1.49 £1.24
7	MO112793301/0 Out of stock	Screw	£1.49 £1.24
8	MO112155000/0 In stock	Nut	£1.49 £1.24
9	MO112521350/0 In stock	Washer	£1.49 £1.24
10	MO112691810/0 Out of stock	Screw	£1.75 £1.46
11	MO122399803/0 Out of stock	Knob	£1.63 £1.36
12	MO112293202/0 Out of stock	Nut	£1.90 £1.58
13	MO381008596/1 Out of stock	Outfit. Screws To 31-8-2002	£24.11 £20.09
13	MO181008623/1 Out of stock	Outfit. Screws From 01-9-2003	£8.93 £7.44
14	MO112293200/0 In stock	Nut	£1.49 £1.24
15	MO122399900/0 In stock	Black Knob	£1.49 £1.24
16	MO181003801/1 In stock	Guide Spring	£3.25 £2.71
17	MO122680006/1 In stock	Washer	£1.75 £1.46
18	MO112819201/0 Out of stock	Carriage Bolt M8 X 60	£2.70 £2.25
