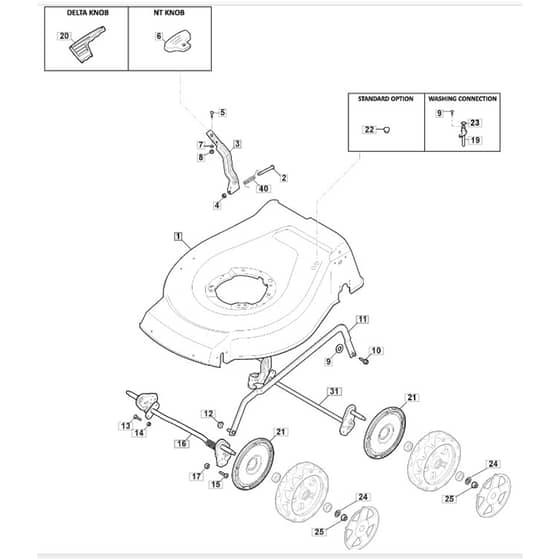

4830 HP - 2021-2022 - 299482238/MTF - Mountfield Rotary Mower Deck Diagram

Name: 4830 HP - 2021-2022 - 299482238/MTF - Mountfield Rotary Mower Deck Diagram
SKU: 4830_hp_299482238_mtf_deck-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4830 HP - 2021-2022 - 299482238/MTF - Mountfield Rotary Mower Deck Diagram

Description

Mountfield 4830 HP Parts Diagram

Product Name - 4830 HP

Model Year - 2021-2022

Model Type - NTL 484

Art.N - 299482238/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004536/0 Out of stock	Red Deck From 01-9-2011	£203.17 £169.31
1	MO381004741/0 Out of stock	Grey Deck From 01-9-2013	£174.72 £145.60
1	MO381003908/0 Out of stock	Red Deck To 31-August-2011	£174.72 £145.60
2	MO122534131/0 Out of stock	Pin	£1.49 £1.24
3	MO322322851/0 Out of stock	Lever. Height Adjustment Galvanized - Black To 31-8-2017	£7.72 £6.43
3	MO322322857/0 Out of stock	Lever. Height Adjustment Galvanized - White	£5.69 £4.74
5	MO112788512/0 Out of stock	Screw	£1.49 £1.24
6	MO322394503/0 Out of stock	Knob NT Knob	£1.75 £1.46
7	MO112521310/0 Out of stock	Washer	£1.36 £1.13
8	MO112150000/0 Out of stock	Nut	£1.36 £1.13
9	MO112369500/0 Out of stock	Elastic Washer	£1.36 £1.13
10	MO122943013/0 Out of stock	Screw	£4.60 £3.83
11	MO381002036/0 Out of stock	Rod	£40.63 £33.86
12	MO112436050/0 In stock	Plate	£1.75 £1.46
13	MO112727803/0 Out of stock	Screw	£1.49 £1.24
14	MO112154510/0 In stock	Nut	£1.49 £1.24
15	MO112727801/0 Out of stock	Screw	£1.49 £1.24
16	MO381302805/1 Out of stock	Front Wheel Axle	£39.28 £32.73
18	MO112728450/0 In stock	Screw From 01-9-2011	£1.49 £1.24
19	MO322034002/0 Out of stock	Washing Connection From 01-9-2011	£1.63 £1.36
20	MO322394522/0 Out of stock	Knob Delta Knob	£8.06 £6.72
21	MO322600145/0 Out of stock	Protection. Wheel	£1.63 £1.36
22	MO322820077/1 Out of stock	Cap	£1.49 £1.24
23	MO119035000/0 Out of stock	Or Ring	£4.87 £4.06
24	MO112521350/0 In stock	Washer	£1.49 £1.24
25	MO112155000/0 In stock	Nut	£1.49 £1.24
31	MO381302825/0 Out of stock	Axle	£31.19 £25.99
40	MO122446192/0 Out of stock	Spring	£2.04 £1.70
