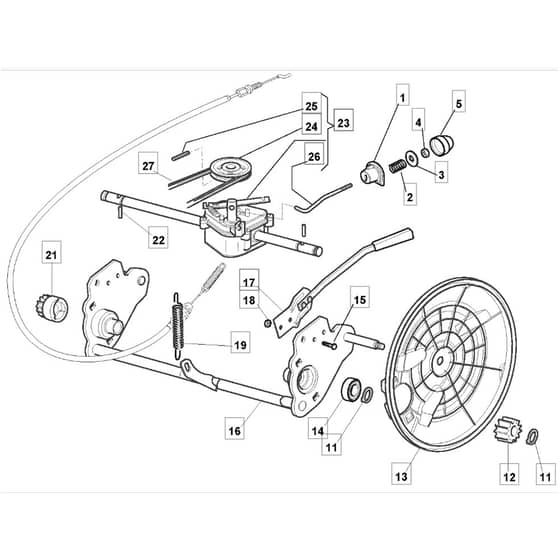

4820 PD INOX - 2009 - 291477023/M09 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield 4820 PD INOX Parts Diagram

Product Name - 4820 PD INOX

Model Year - 2009

Model Type - CAL 484 W TR

Art.N - 291477023/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122041957/1 Out of stock	Bushing	£1.48 £1.23
2	MO122450063/0 Out of stock	Spring	£1.48 £1.23
3	MO322680009/0 Out of stock	Washer	£1.52 £1.27
4	MO112154510/0 In stock	Nut	£1.48 £1.23
5	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
11	MO112608600/0 In stock	Seeger	£1.48 £1.23
12	MO122570110/1 In stock	Right Pinion	£7.03 £5.86
13	MO322600160/0 Out of stock	Protection. Wheel	£4.97 £4.14
14	MO119216035/0 In stock	Bearing	£3.35 £2.79
15	MO112789000/0 Out of stock	Screw	£1.48 £1.23
16	MO381002853/2 Out of stock	Rear Wheel Axle	£81.48 £67.90
17	MO381003326/1 Out of stock	Lever	£31.82 £26.52
18	MO112154330/0 Out of stock	Nut	£1.48 £1.23
19	MO122450460/0 Out of stock	Spring	£4.42 £3.68
21	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
22	MO122753000/0 In stock	Pin	£1.48 £1.23
23	MO181003092/0 Out of stock	Gear Box (General Transmission) From 01-9-2010	£107.80 £89.83
23	MO181003076/1 Out of stock	G.T. Gear Box (General Transmission) To 31-8-2008	£115.16 £95.97
23	MO181003081/1 Out of stock	Gear Box Bi.Ci.Di (Bi. Ci. Di.) To 31-8-2010	£137.95 £114.96
24	MO122601909/0 Out of stock	Pulley	£5.35 £4.46
25	MO112645705/0 Out of stock	Elastic Pin	£1.48 £1.23
26	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.43 £3.69
27	MO135063800/0 In stock	Trapezoidal Belt Z 27 Lp.710	£9.11 £7.59
