4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Transmission Diagram

4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Transmission Diagram
4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Transmission Diagram

Description

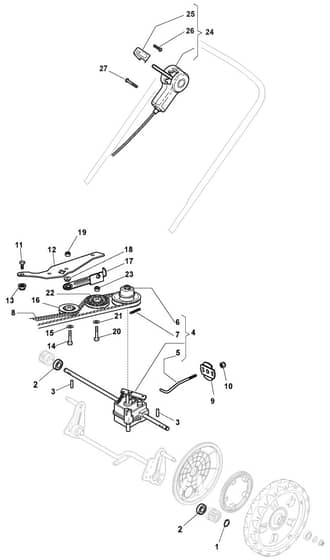

Mountfield 4820 PD BW EL 4S Parts Diagram

Model Year - 2015

Model Type - NTL 484 W TR/E 4S

Art.N - 299487523/MTF

Ref. Img. Part No. Details
  1 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.48 £1.23

  2 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.35 £2.79

  3 Pin
Pin
MO122753000/0 In stock
Pin
£1.48 £1.23

  4 Gear Box From 01-9-2010
Gear Box From 01-9-2010
MO2135030 In stock
Gear Box From 01-9-2010
£1.40 £1.17

  4 Gear Box To 31-8-2010
Gear Box To 31-8-2010
MO181003096/3 Out of stock
Gear Box To 31-8-2010
£140.60 £117.17

  4 Gear Box Only for Models with
Gear Box Only for Models with
MO181003102/1 Out of stock
Gear Box Only for Models with "Flat" handle
£147.30 £122.75

  5 Adjustment Rod
Adjustment Rod
MO122033285/0 Out of stock
Adjustment Rod
£6.56 £5.47

  6 Pulley From 01-9-2013
Pulley From 01-9-2013
MO122601932/0 Out of stock
Pulley From 01-9-2013
£54.64 £45.53

  6 Pulley To 31-8-2013
Pulley To 31-8-2013
MO122601925/0 Out of stock
Pulley To 31-8-2013
£62.94 £52.45

  7 Elastic Pin
Elastic Pin
MO112645700/0 Out of stock
Elastic Pin
£1.48 £1.23

  8 Belt
Belt
MO135064005/0 Out of stock
Belt
£12.92 £10.77

  9 Washer
Washer
MO322675113/0 Out of stock
Washer
£1.66 £1.38

  11 Screw
Screw
MO112791011/0 Out of stock
Screw
£1.34 £1.12

  12 Support
Support
MO322806625/2 Out of stock
Support
£5.22 £4.35

  13 Nut
Nut
MO112292102/0 In stock
Nut
£1.61 £1.34

  14 Screw
Screw
MO112689500/0 Out of stock
Screw
£1.48 £1.23

  16 Pulley
Pulley
MO122601915/0 In stock
Pulley
£20.35 £16.96

  17 Pulley Support
Pulley Support
MO322806623/0 Out of stock
Pulley Support
£3.95 £3.29

  18 Washer
Washer
MO122671656/0 Out of stock
Washer
£6.96 £5.80

  20 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.48 £1.23

  21 Washer
Washer
MO112523050/0 In stock
Washer
£1.48 £1.23

  22 Pulley
Pulley
MO122601914/0 In stock
Pulley
£20.48 £17.07

  23 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  24 Speed Control Ass.Y
Speed Control Ass.Y
MO381007109/0 Out of stock
Speed Control Ass.Y
£39.47 £32.89

  25 Knob
Knob
MO322399809/0 Out of stock
Knob
£1.66 £1.38

  26 Screw
Screw
MO112728300/0 Out of stock
Screw
£1.48 £1.23

  27 Self-Tap Screw Pt Torx Wn1451 K50 X 40
Self-Tap Screw Pt Torx Wn1451 K50 X 40
MO112728702/0 Out of stock
Self-Tap Screw Pt Torx Wn1451 K50 X 40
£1.48 £1.23


Description

Mountfield 4820 PD BW EL 4S Parts Diagram

Model Year - 2015

Model Type - NTL 484 W TR/E 4S

Art.N - 299487523/MTF
