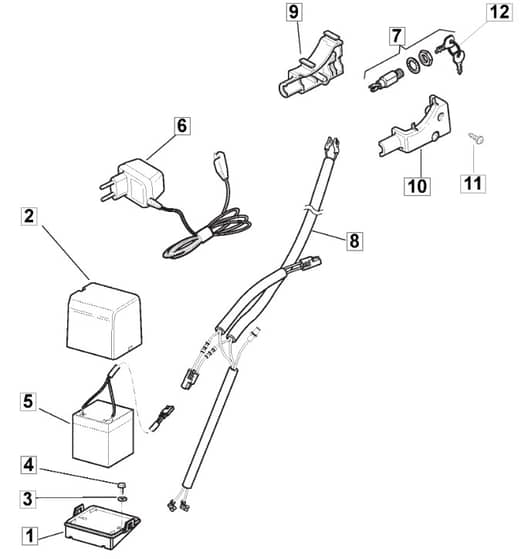

4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Electric Start Diagram

4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Electric Start Diagram
4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Electric Start Diagram

Description

Mountfield 4820 PD BW EL 4S Parts Diagram

Model Year - 2015

Model Type - NTL 484 W TR/E 4S

Art.N - 299487523/MTF

Ref. Img. Part No. Details
  1 Battery Support
Battery Support
MO322785122/0 Out of stock
Battery Support
£3.70 £3.08

  1 Battery Support Inclined Support
Battery Support Inclined Support
MO322785123/0 In stock
Battery Support Inclined Support
£4.72 £3.93

  2 Battery Cover
Battery Cover
MO322109530/0 Out of stock
Battery Cover
£4.72 £3.93

  3 Washer
Washer
MO112521310/0 Out of stock
Washer
£1.34 £1.12

  4 Screw To 31-8-2003
Screw To 31-8-2003
MO112735105/0 Out of stock
Screw To 31-8-2003
£1.48 £1.23

  4 Screw From 01-9-2003
Screw From 01-9-2003
MO112731590/0 Out of stock
Screw From 01-9-2003
£1.66 £1.38

  5 Battery
Battery
MO118120064/0 In stock
Battery
£44.18 £36.82

  6 Battery Charger
Battery Charger
MO118204120/1LC In stock
Battery Charger
£25.72 £21.43

  7 Switch
Switch
MO118450051/0 In stock
Switch
£17.68 £14.73

  8 Electric Start Wire
Electric Start Wire
MO118204192/3 Out of stock
Electric Start Wire
£37.49 £31.24

  9 Starting Block Inner Half-Bearing From 01-9-2010
Starting Block Inner Half-Bearing From 01-9-2010
MO322722804/1 Out of stock
Starting Block Inner Half-Bearing From 01-9-2010
£3.18 £2.65

  10 Starting Block Inner Half-Bearing From 01-9-2010
Starting Block Inner Half-Bearing From 01-9-2010
MO322722805/1 Out of stock
Starting Block Inner Half-Bearing From 01-9-2010
£3.82 £3.18

  11 Screw
Screw
MO112728300/0 Out of stock
Screw
£1.48 £1.23

  12 Ignition Key [Pair]
Ignition Key [Pair]
MO118210016/1 Out of stock
Ignition Key [Pair]
£12.18 £10.15


Description

Mountfield 4820 PD BW EL 4S Parts Diagram

Model Year - 2015

Model Type - NTL 484 W TR/E 4S

Art.N - 299487523/MTF
