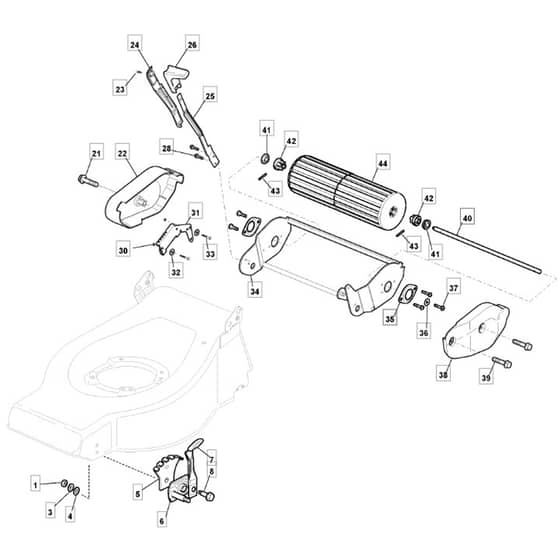

4810 R PD - 2008 - 294489043/M08 - Mountfield Rotary Mower Roller Assembly Diagram

Name: 4810 R PD - 2008 - 294489043/M08 - Mountfield Rotary Mower Roller Assembly Diagram
SKU: 4810_r_pd_294489043_m08_roller_assembly-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4810 R PD - 2008 - 294489043/M08 - Mountfield Rotary Mower Roller Assembly Diagram

Description

Mountfield 4810 R PD Parts Diagram

Product Name - 4810 R PD

Model Year - 2008

Model Type - TD 484 TR

Art.N - 294489043/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.49 £1.24
3	MO112583500/0 Out of stock	Grower	£1.49 £1.24
4	MO112523070/0 Out of stock	Washer	£1.49 £1.24
5	MO322735547/0 Out of stock	Sector. Height Adjustment	£2.17 £1.81
6	MO381005082/0 In stock	Wheel Support	£16.54 £13.78
7	MO481003285/1 In stock	Lever	£18.79 £15.66
8	MO122519811/0 Out of stock	Pin	£1.49 £1.24
21	MO112735594/0 Out of stock	Screw	£1.49 £1.24
22	MO322060201/0 In stock	Red Right Roller Prot. Carter Dark Red	£2.10 £1.75
23	MO112728722/0 Out of stock	Screw	£1.49 £1.24
24	MO322109722/0 Out of stock	Lever Cover Red	£3.65 £3.04
25	MO322321505/0 In stock	Lever. Height Adjustment	£35.08 £29.23
26	MO322399805/0 In stock	Knob	£13.20 £11.00
28	MO112735122/0 Out of stock	Screw	£1.49 £1.24
30	MO112154330/0 Out of stock	Nut	£1.49 £1.24
32	MO112521331/0 Out of stock	Washer	£1.49 £1.24
33	MO112789000/0 Out of stock	Screw	£1.49 £1.24
34	MO381005109/1 Out of stock	Roller Support	£131.38 £109.48
35	MO322207323/0 Out of stock	Bearing Flange To 31-8-2003	£17.82 £14.85
35	MO322207325/0 Out of stock	Bearing Flange From 01-9-2003	£1.90 £1.58
36	MO122671650/0 Out of stock	Washer	£1.49 £1.24
38	MO322060202/0 Out of stock	Red Left Roller Prot. Carter Dark Red	£2.30 £1.92
39	MO112735592/0 Out of stock	Screw	£1.90 £1.58
40	MO322060198/1 Out of stock	Belt Protection To 31-8-2009	£10.30 £8.58
40	MO122033361/0 Out of stock	Axle. Roller From 01-9-2010	£15.84 £13.20
41	MO119216036/0 In stock	Bearing	£9.22 £7.68
42	MO322855000/0 In stock	Tractor Roller	£2.58 £2.15
43	MO112620210/0 In stock	Elastic Pin	£1.49 £1.24
44	MO381007401/0 In stock	Drive Roller Assembly	£36.56 £30.47
