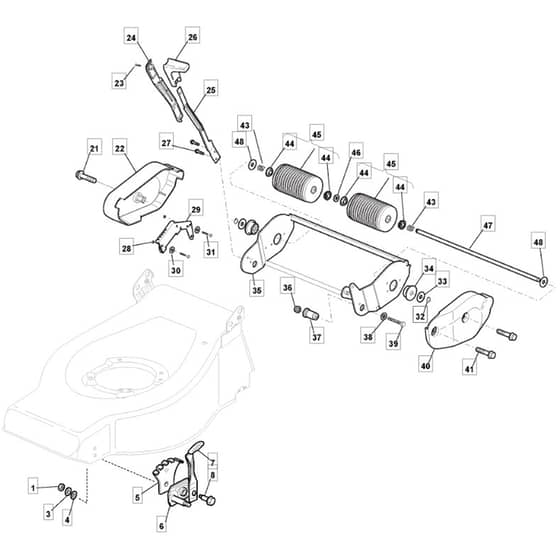

4810 R HP - 2008 - 294486043/M08 - Mountfield Rotary Mower Roller Assembly Diagram

Description

Mountfield 4810 R HP Parts Diagram

Product Name - 4810 R HP

Model Year - 2008

Model Type - TD 484

Art.N - 294486043/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.48 £1.23
3	MO112583500/0 Out of stock	Grower	£1.48 £1.23
4	MO112523070/0 Out of stock	Washer	£1.48 £1.23
5	MO322735547/0 In stock	Sector. Height Adjustment	£2.29 £1.91
6	MO381005082/0 In stock	Wheel Support	£16.32 £13.60
7	MO481003285/1 In stock	Lever	£8.65 £7.21
8	MO122519811/0 Out of stock	Pin	£1.48 £1.23
21	MO112735594/0 Out of stock	Screw	£1.48 £1.23
22	MO322060201/0 In stock	Red Right Roller Prot. Carter Dark Red	£2.04 £1.70
23	MO112728680/0 Out of stock	Screw	£1.48 £1.23
24	MO322109722/0 Out of stock	Lever Cover Red	£3.70 £3.08
25	MO322321505/0 In stock	Lever. Height Adjustment	£34.69 £28.91
26	MO322399805/0 Out of stock	Knob	£12.86 £10.72
27	MO112735122/0 Out of stock	Screw	£1.56 £1.30
28	MO112154330/0 Out of stock	Nut	£1.48 £1.23
30	MO112521331/0 Out of stock	Washer	£1.48 £1.23
31	MO112789000/0 Out of stock	Screw	£1.48 £1.23
32	MO112000957/0 Out of stock	Benzing Ring From 01-9-2006	£1.48 £1.23
32	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.48 £1.23
33	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
34	MO322034512/0 Out of stock	Bushing	£1.66 £1.38
35	MO381005109/1 Out of stock	Roller Support	£133.67 £111.39
36	MO112293201/0 In stock	Nut	£1.61 £1.34
37	MO122785132/0 Out of stock	Roller Support	£4.02 £3.35
38	MO112523060/0 In stock	Washer	£1.48 £1.23
39	MO112691700/0 Out of stock	Screw	£1.74 £1.45
40	MO322060202/0 Out of stock	Red Left Roller Prot. Carter Dark Red	£2.42 £2.02
41	MO112735592/0 Out of stock	Screw	£1.87 £1.56
43	MO122430210/0 Out of stock	Bearing	£1.61 £1.34
44	MO122122206/0 In stock	Bearing	£1.74 £1.45
45	MO381007400/0 Out of stock	Roller	£18.97 £15.81
46	MO112521370/0 Out of stock	Washer	£1.48 £1.23
47	MO122033360/0 Out of stock	Axle. Roller	£6.02 £5.02
