4810 PD ES - 2009 - 294485943/M09 - Mountfield Rotary Mower Deck Diagram

Name: 4810 PD ES - 2009 - 294485943/M09 - Mountfield Rotary Mower Deck Diagram
SKU: 4810_pd_es_294485943_m09_deck-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

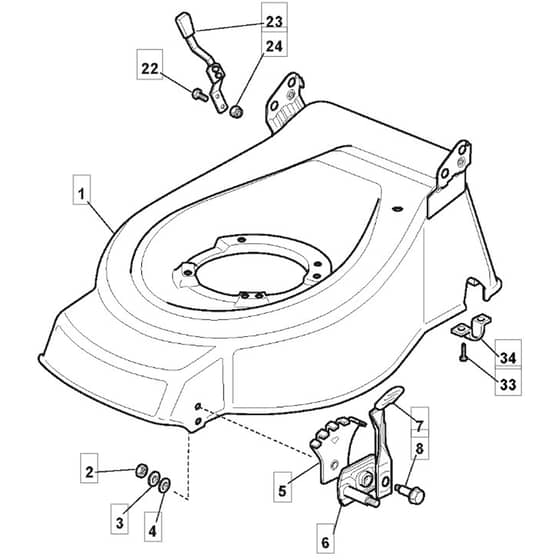

4810 PD ES - 2009 - 294485943/M09 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield 4810 PD ES Parts Diagram

Product Name - 4810 PD ES

Model Year - 2009

Model Type - TD 484 TR/E

Art.N - 294485943/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002429/1 Out of stock	Red Deck To 31-August-2009	£197.33 £164.44
2	MO112293200/0 In stock	Nut	£1.49 £1.24
3	MO112583500/0 Out of stock	Grower	£1.49 £1.24
4	MO112523070/0 Out of stock	Washer	£1.49 £1.24
5	MO322735547/0 Out of stock	Sector. Height Adjustment	£2.17 £1.81
6	MO381005082/0 In stock	Wheel Support	£16.54 £13.78
7	MO481003285/1 In stock	Lever	£18.79 £15.66
8	MO122519811/0 Out of stock	Pin	£1.49 £1.24
22	MO112789000/0 Out of stock	Screw	£1.49 £1.24
23	MO381003279/2 Out of stock	Adjustment Lever	£31.15 £25.96
24	MO112154330/0 Out of stock	Nut	£1.49 £1.24
33	MO112731350/0 Out of stock	Screw	£1.49 £1.24
34	MO322545152/0 Out of stock	Axle Bracket	£1.49 £1.24
