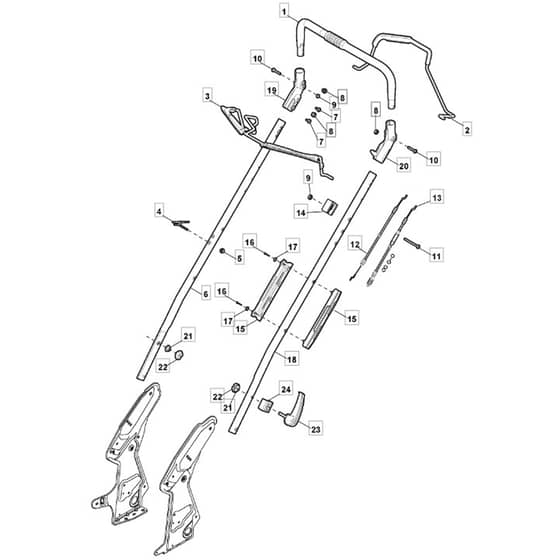

481 PD 4S AVS - 2010 - 290503043/M10 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield 481 PD 4S AVS Parts Diagram

Product Name - 481 PD 4S AVS

Model Year - 2010

Model Type -

Art.N - 290503043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006670/2 Out of stock	Handle Tube	£26.82 £22.35
2	MO381003349/0 Out of stock	Lever. Driving	£46.06 £38.38
3	MO381003344/1 Out of stock	Lever. Engine Brake Red	£47.40 £39.50
4	MO122430309/0 Out of stock	Spring	£2.98 £2.48
5	MO112154330/0 Out of stock	Nut	£1.49 £1.24
6	MO381006821/0 Out of stock	Handle Grey. Right	£33.66 £28.05
7	MO112735662/1 Out of stock	Screw	£2.30 £1.92
8	MO322041967/1 Out of stock	Bushing	£1.49 £1.24
9	MO112154510/0 Out of stock	Nut	£1.49 £1.24
10	MO112728721/0 Out of stock	Screw	£1.75 £1.46
11	MO112727786/0 Out of stock	Screw	£1.90 £1.58
12	MO181030066/0 Out of stock	Cable. Thread Engine Brake	£16.55 £13.79
13	MO381030068/0 Out of stock	Cable Rear Drive	£21.80 £18.17
14	MO322551639/0 In stock	Cable Holder	£13.88 £11.57
15	MO322806644/0 Out of stock	Protection	£2.30 £1.92
16	MO112727812/0 Out of stock	Screw	£1.49 £1.24
17	MO112523000/1 Out of stock	Washer	£1.49 £1.24
18	MO381006823/0 Out of stock	Handle Grey. Left	£47.40 £39.50
19	MO322488301/0 Out of stock	Joint Sleeve Grey Right	£23.30 £19.42
20	MO322488303/0 Out of stock	Joining Sleeve Grey Left	£23.30 £19.42
21	MO112154220/0 Out of stock	Nut	£1.49 £1.24
22	MO322399835/0 Out of stock	Black Knob	£1.90 £1.58
23	MO381103359/1 In stock	Locking Handle Lever	£4.87 £4.06
24	MO322680017/0 Out of stock	Handle Bracket	£1.90 £1.58
