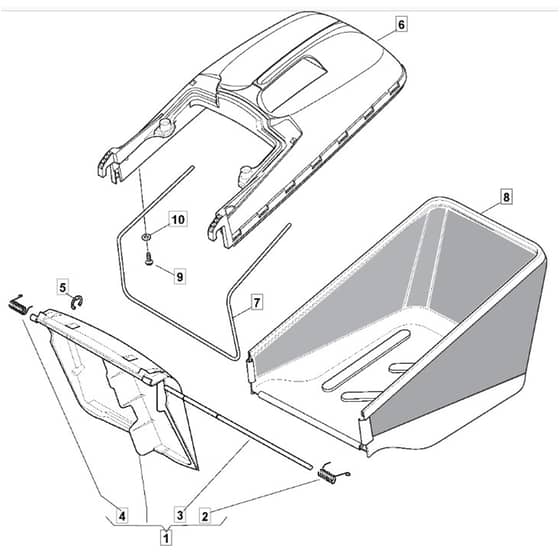

463R PD_ES - 2008 - 294489543/UM8 - Mountfield Rotary Mower Grass Bag Diagram

Name: 463R PD_ES - 2008 - 294489543/UM8 - Mountfield Rotary Mower Grass Bag Diagram
SKU: 463r_pd_es_294489543_um8_grass_bag-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

463R PD_ES - 2008 - 294489543/UM8 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield 463R PD_ES Parts Diagram

Product Name - 463R PD/ES

Model Year - 2008

Model Type - TD 484 TR/E

Art.N - 294489543/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381008021/3 Out of stock	Stone Guard	£19.98 £16.65
2	MO122450420/1 Out of stock	Left Protection Spring	£1.90 £1.58
3	MO122517906/1 Out of stock	Fulcrum Pin	£14.11 £11.76
4	MO122450410/1 Out of stock	Right Spring	£11.66 £9.72
5	MO112000930/0 In stock	Benzing Ring	£1.49 £1.24
6	MO381486013/0 Out of stock	Grass-Box. Upper Part To 31-8-2004	£21.47 £17.89
6	MO322486104/1 Out of stock	Grasscatcher Upper Part From 01-9-2004	£33.10 £27.58
7	MO122608525/2 Out of stock	Lower Stiffening To 31-8-2004	£12.61 £10.51
7	MO122608527/0 Out of stock	Grassc. Lower Stiff. 48 Roller From 01-9-2004	£10.97 £9.14
8	MO181002227/0 Out of stock	Fabric Grasscatcher Wip Roller Black From 01-9-2007	£50.11 £41.76
9	MO112728722/0 Out of stock	Screw	£1.49 £1.24
10	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.49 £1.24
