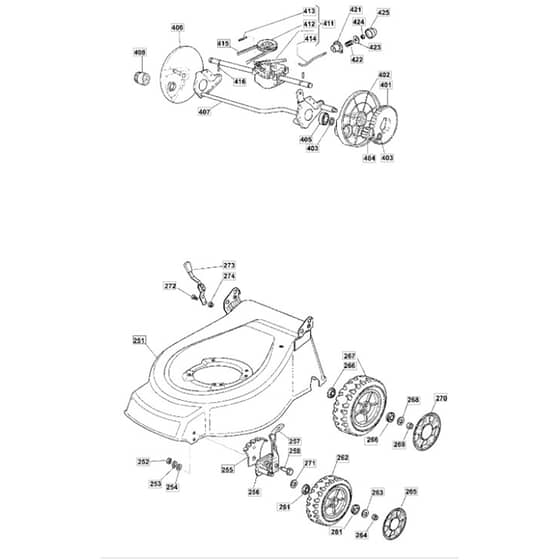

462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Wheels Diagram

462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Wheels Diagram
462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2008-2009

Model Type - TD 484 TR 4S

Art.N - 294485038/UM8

Ref. Img. Part No. Details
  251 Red Deck
Red Deck
MO381001979/1 Out of stock
Red Deck
£197.33 £164.44

  252 Nut 460PD. 461PD. 462PD
Nut 460PD. 461PD. 462PD
MO112293200/0 In stock
Nut 460PD. 461PD. 462PD
£1.48 £1.23

  253 Grower 460PD. 461PD. 462PD
Grower 460PD. 461PD. 462PD
MO112583500/0 Out of stock
Grower 460PD. 461PD. 462PD
£1.48 £1.23

  254 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO112523070/0 Out of stock
Washer 460PD. 461PD. 462PD
£1.48 £1.23

  256 Wheel Support 460PD. 461PD. 462PD
Wheel Support 460PD. 461PD. 462PD
MO381005082/0 In stock
Wheel Support 460PD. 461PD. 462PD
£16.32 £13.60

  257 Lever. Height Adjustment 460PD. 461PD. 462PD
Lever. Height Adjustment 460PD. 461PD. 462PD
MO381003284/0 Out of stock
Lever. Height Adjustment 460PD. 461PD. 462PD
£12.10 £10.08

  258 Pin 460PD. 461PD. 462PD
Pin 460PD. 461PD. 462PD
MO122519811/0 Out of stock
Pin 460PD. 461PD. 462PD
£1.48 £1.23

  262 Wheel Ø 170 460PD. 461PD. 462PD
Wheel Ø 170 460PD. 461PD. 462PD
MO381007351/0 In stock
Wheel Ø 170 460PD. 461PD. 462PD
£12.86 £10.72

  263 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO112521350/0 In stock
Washer 460PD. 461PD. 462PD
£1.48 £1.23

  265 Hub Cap Grey 460PD. 461PD. 462PD
Hub Cap Grey 460PD. 461PD. 462PD
MO322110381/0 Out of stock
Hub Cap Grey 460PD. 461PD. 462PD
£3.18 £2.65

  266 Bearing 460PD. 461PD. 462PD
Bearing 460PD. 461PD. 462PD
MO122122206/0 In stock
Bearing 460PD. 461PD. 462PD
£1.74 £1.45

  267 Wheel 460PD. 461PD. 462PD
Wheel 460PD. 461PD. 462PD
MO381007360/0 Out of stock
Wheel 460PD. 461PD. 462PD
£15.66 £13.05

  268 Elastic Washer 460PD. 461PD. 462PD
Elastic Washer 460PD. 461PD. 462PD
MO112369500/0 Out of stock
Elastic Washer 460PD. 461PD. 462PD
£1.34 £1.12

  269 Nut 460PD. 461PD. 462PD
Nut 460PD. 461PD. 462PD
MO112155000/0 In stock
Nut 460PD. 461PD. 462PD
£1.48 £1.23

  270 Hub Cap Grey 460PD. 461PD. 462PD
Hub Cap Grey 460PD. 461PD. 462PD
MO322110687/0 Out of stock
Hub Cap Grey 460PD. 461PD. 462PD
£2.42 £2.02

  271 Spring Washer 460PD. 461PD. 462PD
Spring Washer 460PD. 461PD. 462PD
MO112530150/0 Out of stock
Spring Washer 460PD. 461PD. 462PD
£1.34 £1.12

  272 Screw 460PD. 461PD. 462PD
Screw 460PD. 461PD. 462PD
MO112789000/0 Out of stock
Screw 460PD. 461PD. 462PD
£1.48 £1.23

  273 Adjustment Lever 460PD. 461PD. 462PD
Adjustment Lever 460PD. 461PD. 462PD
MO381003279/2 Out of stock
Adjustment Lever 460PD. 461PD. 462PD
£25.21 £21.01

  274 Nut 460PD. 461PD. 462PD
Nut 460PD. 461PD. 462PD
MO112154330/0 Out of stock
Nut 460PD. 461PD. 462PD
£1.48 £1.23

  401 Ring Gear 460PD. 461PD. 462PD
Ring Gear 460PD. 461PD. 462PD
MO122120105/2 Out of stock
Ring Gear 460PD. 461PD. 462PD
£9.44 £7.87

  402 Left Wheel Protection 460PD. 461PD. 462PD
Left Wheel Protection 460PD. 461PD. 462PD
MO122600093/0 Out of stock
Left Wheel Protection 460PD. 461PD. 462PD
£3.22 £2.68

  403 Seeger 460PD. 461PD. 462PD
Seeger 460PD. 461PD. 462PD
MO112608600/0 In stock
Seeger 460PD. 461PD. 462PD
£1.48 £1.23

  404 Left Pinion 460PD. 461PD. 462PD
Left Pinion 460PD. 461PD. 462PD
MO122570120/1 In stock
Left Pinion 460PD. 461PD. 462PD
£7.03 £5.86

  405 Bearing 460PD. 461PD. 462PD
Bearing 460PD. 461PD. 462PD
MO119216035/0 In stock
Bearing 460PD. 461PD. 462PD
£3.35 £2.79

  406 Right Wheel Protection 460PD. 461PD. 462PD
Right Wheel Protection 460PD. 461PD. 462PD
MO122600092/0 Out of stock
Right Wheel Protection 460PD. 461PD. 462PD
£3.22 £2.68

  407 Rear Wheel Axle 460PD. 461PD. 462PD
Rear Wheel Axle 460PD. 461PD. 462PD
MO381000147/0 In stock
Rear Wheel Axle 460PD. 461PD. 462PD
Was £26.74 £22.28 Special Price £17.23 £14.36

  408 Right Pinion 460PD. 461PD. 462PD
Right Pinion 460PD. 461PD. 462PD
MO322570138/0 In stock
Right Pinion 460PD. 461PD. 462PD
£7.03 £5.86

  411 G.T. Gear Box Pos 412 - 414 incl. _ 460PD. 461PD. 462PD
G.T. Gear Box Pos 412 - 414 incl. _ 460PD. 461PD. 462PD
MO181003076/1 Out of stock
G.T. Gear Box Pos 412 - 414 incl. _ 460PD. 461PD. 462PD
£115.16 £95.97

  412 Pulley 460PD. 461PD. 462PD
Pulley 460PD. 461PD. 462PD
MO122601909/0 In stock
Pulley 460PD. 461PD. 462PD
£5.35 £4.46

  413 Elastic Pin 460PD. 461PD. 462PD
Elastic Pin 460PD. 461PD. 462PD
MO112645705/0 Out of stock
Elastic Pin 460PD. 461PD. 462PD
£1.48 £1.23

  414 Adjustment Rod 460PD. 461PD. 462PD
Adjustment Rod 460PD. 461PD. 462PD
MO122033283/0 In stock
Adjustment Rod 460PD. 461PD. 462PD
£4.43 £3.69

  415 Trapezoidal Belt
Trapezoidal Belt
MO135063800/0 In stock
Trapezoidal Belt
£9.11 £7.59

  415 Belt
Belt
MO135063902/1 In stock
Belt
£9.44 £7.87

  416 Pin 460PD. 461PD. 462PD
Pin 460PD. 461PD. 462PD
MO122753000/0 In stock
Pin 460PD. 461PD. 462PD
£1.48 £1.23

  421 Bushing 460PD. 461PD. 462PD
Bushing 460PD. 461PD. 462PD
MO122041957/1 Out of stock
Bushing 460PD. 461PD. 462PD
£1.48 £1.23

  422 Spring 460PD. 461PD. 462PD
Spring 460PD. 461PD. 462PD
MO122450063/0 Out of stock
Spring 460PD. 461PD. 462PD
£1.48 £1.23

  423 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO322680009/0 Out of stock
Washer 460PD. 461PD. 462PD
£1.52 £1.27

  424 Nut 460PD. 461PD. 462PD
Nut 460PD. 461PD. 462PD
MO112154510/0 In stock
Nut 460PD. 461PD. 462PD
£1.48 £1.23

  425 Hub Cover
Hub Cover
MO122110230/0 In stock
Hub Cover
£1.48 £1.23


Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2008-2009

Model Type - TD 484 TR 4S

Art.N - 294485038/UM8
