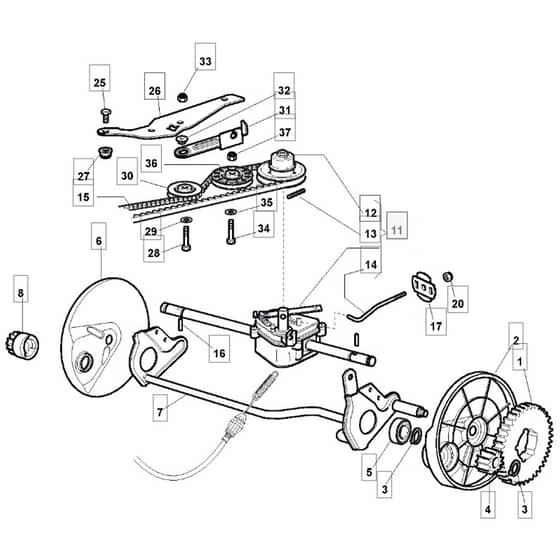

462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Transmission Diagram

462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Transmission Diagram
462 PD - 2008-2009 - 294485038/UM8 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2008-2009

Model Type - TD 484 TR 4S

Art.N - 294485038/UM8

Ref. Img. Part No. Details
  1 Ring Gear
Ring Gear
MO122120105/2 Out of stock
Ring Gear
£9.44 £7.87

  2 Left Wheel Protection
Left Wheel Protection
MO122600093/0 Out of stock
Left Wheel Protection
£3.22 £2.68

  3 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.48 £1.23

  4 Left Pinion
Left Pinion
MO122570120/1 In stock
Left Pinion
£7.03 £5.86

  5 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.35 £2.79

  6 Right Wheel Protection
Right Wheel Protection
MO122600092/0 Out of stock
Right Wheel Protection
£3.22 £2.68

  7 Rear Wheel Axle
Rear Wheel Axle
MO381000147/0 In stock
Rear Wheel Axle
Was £26.74 £22.28 Special Price £17.23 £14.36

  8 Right Pinion
Right Pinion
MO322570138/0 In stock
Right Pinion
£7.03 £5.86

  11 Gear Box
Gear Box
MO181003096/3 Out of stock
Gear Box
£140.60 £117.17

  12 Pulley To 31-8-2013
Pulley To 31-8-2013
MO122601925/0 Out of stock
Pulley To 31-8-2013
£62.94 £52.45

  12 Pulley From 01-9-2013
Pulley From 01-9-2013
MO122601932/0 Out of stock
Pulley From 01-9-2013
£54.64 £45.53

  13 Elastic Pin
Elastic Pin
MO112645700/0 Out of stock
Elastic Pin
£1.48 £1.23

  14 Adjustment Rod
Adjustment Rod
MO122033285/0 Out of stock
Adjustment Rod
£6.56 £5.47

  15 Belt
Belt
MO135064005/0 Out of stock
Belt
£12.92 £10.77

  16 Pin
Pin
MO122753000/0 In stock
Pin
£1.48 £1.23

  17 Washer
Washer
MO322675113/0 Out of stock
Washer
£1.66 £1.38

  25 Screw
Screw
MO112791011/0 Out of stock
Screw
£1.34 £1.12

  26 Support From 01-9-2009
Support From 01-9-2009
MO322806625/2 Out of stock
Support From 01-9-2009
£5.22 £4.35

  27 Nut
Nut
MO112292102/0 Out of stock
Nut
£1.61 £1.34

  28 Screw
Screw
MO112689500/0 Out of stock
Screw
£1.48 £1.23

  30 Pulley
Pulley
MO122601915/0 In stock
Pulley
£20.35 £16.96

  31 Pulley Support
Pulley Support
MO322806623/0 Out of stock
Pulley Support
£3.95 £3.29

  32 Washer
Washer
MO122671656/0 Out of stock
Washer
£6.96 £5.80

  34 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.48 £1.23

  35 Washer
Washer
MO112523050/0 In stock
Washer
£1.48 £1.23

  36 Pulley
Pulley
MO122601914/0 In stock
Pulley
£20.48 £17.07

  37 Low Self-Locking Nut M6 Uni7474 Acc.6S
Low Self-Locking Nut M6 Uni7474 Acc.6S
MO112154510/0 In stock
Low Self-Locking Nut M6 Uni7474 Acc.6S
£1.48 £1.23


Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2008-2009

Model Type - TD 484 TR 4S

Art.N - 294485038/UM8
