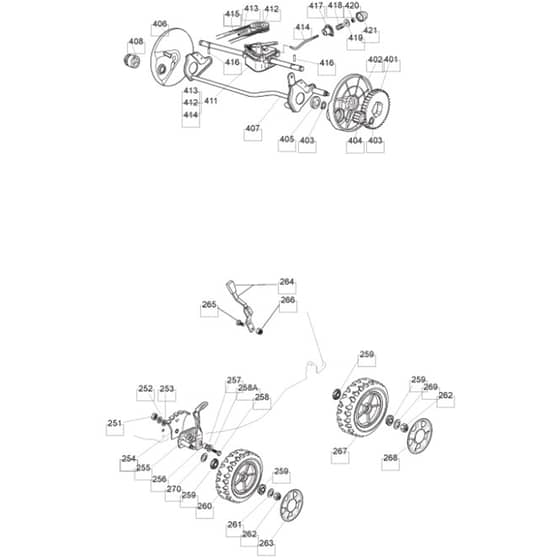

462 PD - 2006-2007 - 294485033/MOU - Mountfield Rotary Mower Wheels Diagram

462 PD - 2006-2007 - 294485033/MOU - Mountfield Rotary Mower Wheels Diagram
462 PD - 2006-2007 - 294485033/MOU - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2006-2007

Model Type - TD 484 TR

Art.N - 294485033/MOU

Ref. Img. Part No. Details
  1 Nut
Nut
MO112293200/0 In stock
Nut
£1.48 £1.23

  252 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO112583500/0 Out of stock
Washer 460PD. 461PD. 462PD
£1.48 £1.23

  253 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO112523070/0 Out of stock
Washer 460PD. 461PD. 462PD
£1.48 £1.23

  255 Wheel Support 460PD. 461PD. 462PD
Wheel Support 460PD. 461PD. 462PD
MO381005082/0 In stock
Wheel Support 460PD. 461PD. 462PD
£16.32 £13.60

  256 Lever. Height Adjustment 460PD. 461PD. 462PD
Lever. Height Adjustment 460PD. 461PD. 462PD
MO481003285/1 In stock
Lever. Height Adjustment 460PD. 461PD. 462PD
£8.65 £7.21

  257 Spacer 460PD. 461PD. 462PD
Spacer 460PD. 461PD. 462PD
MO122171001/0 Out of stock
Spacer 460PD. 461PD. 462PD
£1.87 £1.56

  258 Screw 460PD. 461PD. 462PD
Screw 460PD. 461PD. 462PD
MO112793701/0 Out of stock
Screw 460PD. 461PD. 462PD
£1.48 £1.23

  259 Ball Bearing 460PD. 461PD. 462PD
Ball Bearing 460PD. 461PD. 462PD
MO122122206/0 In stock
Ball Bearing 460PD. 461PD. 462PD
£1.74 £1.45

  260 Wheel 460PD. 461PD. 462PD
Wheel 460PD. 461PD. 462PD
MO381007351/0 In stock
Wheel 460PD. 461PD. 462PD
£12.86 £10.72

  261 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO112521350/0 In stock
Washer 460PD. 461PD. 462PD
£1.48 £1.23

  262 Lock Nut 460PD. 461PD. 462PD
Lock Nut 460PD. 461PD. 462PD
MO112155000/0 In stock
Lock Nut 460PD. 461PD. 462PD
£1.48 £1.23

  263 Hub Cap-Grey 460PD. 461PD. 462PD
Hub Cap-Grey 460PD. 461PD. 462PD
MO322110381/0 Out of stock
Hub Cap-Grey 460PD. 461PD. 462PD
£3.18 £2.65

  264 Lever. Height Adjustment 460PD. 461PD. 462PD
Lever. Height Adjustment 460PD. 461PD. 462PD
MO381003279/2 Out of stock
Lever. Height Adjustment 460PD. 461PD. 462PD
£25.21 £21.01

  265 Screw 460PD. 461PD. 462PD
Screw 460PD. 461PD. 462PD
MO112789000/0 Out of stock
Screw 460PD. 461PD. 462PD
£1.48 £1.23

  266 Nut 460PD. 461PD. 462PD
Nut 460PD. 461PD. 462PD
MO112154330/0 Out of stock
Nut 460PD. 461PD. 462PD
£1.48 £1.23

  267 Wheel 460PD. 461PD. 462PD
Wheel 460PD. 461PD. 462PD
MO381007360/0 Out of stock
Wheel 460PD. 461PD. 462PD
£15.66 £13.05

  269 Elastic Washer 460PD. 461PD. 462PD
Elastic Washer 460PD. 461PD. 462PD
MO112369500/0 Out of stock
Elastic Washer 460PD. 461PD. 462PD
£1.34 £1.12

  270 Elastic Washer 460PD. 461PD. 462PD
Elastic Washer 460PD. 461PD. 462PD
MO112530150/0 Out of stock
Elastic Washer 460PD. 461PD. 462PD
£1.34 £1.12

  401 Ring Gear 460PD. 461PD. 462PD
Ring Gear 460PD. 461PD. 462PD
MO122120105/2 Out of stock
Ring Gear 460PD. 461PD. 462PD
£9.44 £7.87

  402 Wheel Protection-Lh 460PD. 461PD. 462PD
Wheel Protection-Lh 460PD. 461PD. 462PD
MO122600093/0 Out of stock
Wheel Protection-Lh 460PD. 461PD. 462PD
£3.22 £2.68

  403 Circlip 460PD. 461PD. 462PD
Circlip 460PD. 461PD. 462PD
MO112608600/0 In stock
Circlip 460PD. 461PD. 462PD
£1.48 £1.23

  404 Pinion-Lh 460PD. 461PD. 462PD
Pinion-Lh 460PD. 461PD. 462PD
MO122570120/1 In stock
Pinion-Lh 460PD. 461PD. 462PD
£7.03 £5.86

  405 Bearing 460PD. 461PD. 462PD
Bearing 460PD. 461PD. 462PD
MO119216035/0 In stock
Bearing 460PD. 461PD. 462PD
£3.35 £2.79

  406 Wheel Protection-Rh 460PD. 461PD. 462PD
Wheel Protection-Rh 460PD. 461PD. 462PD
MO122600092/0 Out of stock
Wheel Protection-Rh 460PD. 461PD. 462PD
£3.22 £2.68

  407 Rear Wheel Axle 460PD. 461PD. 462PD
Rear Wheel Axle 460PD. 461PD. 462PD
MO381000147/0 In stock
Rear Wheel Axle 460PD. 461PD. 462PD
Was £26.74 £22.28 Special Price £17.23 £14.36

  408 Pinion-Rh 460PD. 461PD. 462PD
Pinion-Rh 460PD. 461PD. 462PD
MO322570138/0 In stock
Pinion-Rh 460PD. 461PD. 462PD
£7.03 £5.86

  411 Gear Box (Fr.Red.) France Reducteurs _ 460PD. 461PD. 462PD
Gear Box (Fr.Red.) France Reducteurs _ 460PD. 461PD. 462PD
MO181003076/1 Out of stock
Gear Box (Fr.Red.) France Reducteurs _ 460PD. 461PD. 462PD
£115.16 £95.97

  412 Belt Pulley 460PD. 461PD. 462PD
Belt Pulley 460PD. 461PD. 462PD
MO122601909/0 In stock
Belt Pulley 460PD. 461PD. 462PD
£5.35 £4.46

  413 Pin 460PD. 461PD. 462PD
Pin 460PD. 461PD. 462PD
MO112645705/0 Out of stock
Pin 460PD. 461PD. 462PD
£1.48 £1.23

  414 Adjustment Rod France Reducteurs _ 460PD. 461PD. 462PD
Adjustment Rod France Reducteurs _ 460PD. 461PD. 462PD
MO122033283/0 In stock
Adjustment Rod France Reducteurs _ 460PD. 461PD. 462PD
£4.43 £3.69

  415 Belt 460PD. 461PD. 462PD
Belt 460PD. 461PD. 462PD
MO135063800/0 In stock
Belt 460PD. 461PD. 462PD
£9.11 £7.59

  415 Belt 510PD . 511PD
Belt 510PD . 511PD
MO135063902/1 In stock
Belt 510PD . 511PD
£9.44 £7.87

  416 Pin 460PD. 461PD. 462PD
Pin 460PD. 461PD. 462PD
MO122753000/0 In stock
Pin 460PD. 461PD. 462PD
£1.48 £1.23

  417 Bushing 460PD. 461PD. 462PD
Bushing 460PD. 461PD. 462PD
MO122041957/1 Out of stock
Bushing 460PD. 461PD. 462PD
£1.48 £1.23

  418 Spring 460PD. 461PD. 462PD
Spring 460PD. 461PD. 462PD
MO122450063/0 Out of stock
Spring 460PD. 461PD. 462PD
£1.48 £1.23

  419 Washer 460PD. 461PD. 462PD
Washer 460PD. 461PD. 462PD
MO322680009/0 Out of stock
Washer 460PD. 461PD. 462PD
£1.52 £1.27

  420 Lock Nut 460PD. 461PD. 462PD
Lock Nut 460PD. 461PD. 462PD
MO112154510/0 In stock
Lock Nut 460PD. 461PD. 462PD
£1.48 £1.23

  421 Hub Cap
Hub Cap
MO122110230/0 In stock
Hub Cap
£1.48 £1.23


Description

Mountfield 462 PD Parts Diagram

Product Name - 462 PD

Model Year - 2006-2007

Model Type - TD 484 TR

Art.N - 294485033/MOU
