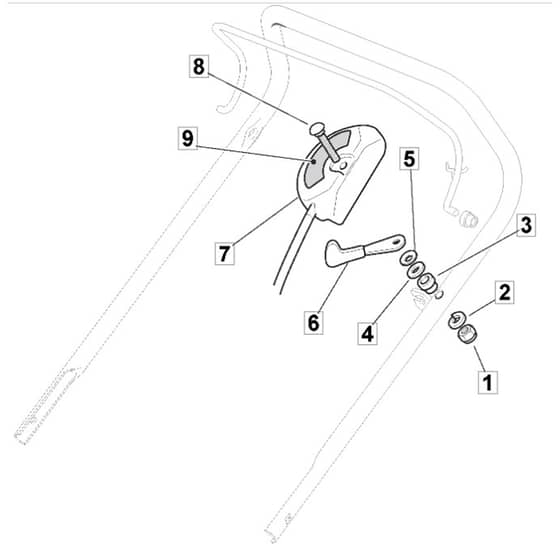

462 HP - 2008 - 294484038/UM8 - Mountfield Rotary Mower Throttle Diagram

Description

Mountfield 462 HP Parts Diagram

Product Name - 462 HP

Model Year - 2008

Model Type - TD 484

Art.N - 294484038/UM8

	Part No.	Details
1	MO112291000/0 Out of stock	Nut	£1.49 £1.24
2	MO112581500/0 Out of stock	Grower	£1.49 £1.24
3	MO122171005/0 Out of stock	Spacer	£1.48 £1.23
4	MO112521360/0 In stock	Washer	£1.49 £1.24
5	MO112508100/0 Out of stock	Cup Spring	£1.49 £1.24
6	MO381007279/1 Out of stock	Throttle Lever - St.Honda.Tecumseh.B&S 625-675-675Es-700-750 Series To 31-8-2017	£1.49 £1.24
7	MO481007080/0 In stock	Throttle Cable	£23.57 £19.64
8	MO112815000/0 Out of stock	Screw	£1.49 £1.24
9	MO114356702/0 Out of stock	Throttle Decal	£1.90 £1.58
