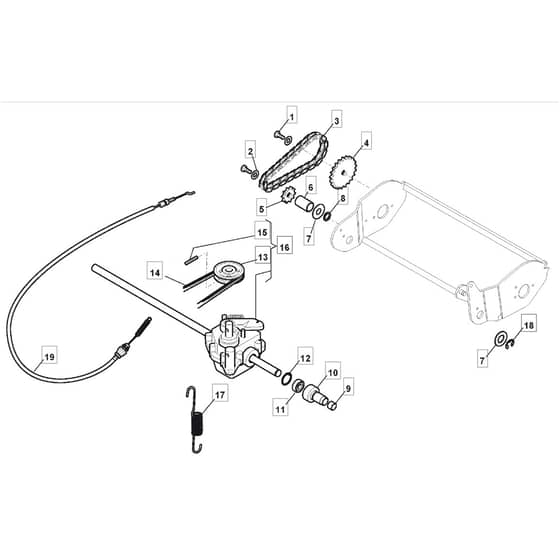

460R PD ES - 2008 - 294489523/UM8 - Mountfield Rotary Mower Roller Diagram

Description

Mountfield 460R PD ES Parts Diagram

Product Name - 460R PD ES

Model Year - 2008

Model Type - TD 484 TR/E

Art.N - 294489523/UM8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112523040/0 In stock	Washer	£1.48 £1.23
3	MO1111-3562-01 In stock	Chain	£19.08 £15.90
4	MO1111-3424-01 Out of stock	Ring Gear	£17.41 £14.51
5	MO1111-3423-01 Out of stock	Ring Gear	£14.06 £11.72
6	MO122170970/0 Out of stock	Spacer	£2.41 £2.01
7	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
8	MO321660100/0 Out of stock	Washer	£1.91 £1.59
9	MO322038404/0 Out of stock	Brass	£1.66 £1.38
10	MO322785126/0 In stock	Gear Box Support	£10.94 £9.12
11	MO119216035/0 In stock	Bearing	£3.35 £2.79
12	MO112610095/0 Out of stock	Snap Ring	£1.61 £1.34
13	MO122601909/0 In stock	Pulley	£5.35 £4.46
14	MO135063800/0 In stock	Trapezoidal Belt	£9.11 £7.59
15	MO112645705/0 Out of stock	Elastic Pin	£1.48 £1.23
16	MO181003077/1 In stock	F.R. Gear Box Roller	£99.10 £82.58
17	MO125430220/0 Out of stock	Brake Spring	£3.89 £3.24
18	MO112000957/0 Out of stock	Benzing Ring From 01-9-2006	£1.48 £1.23
18	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.48 £1.23
19	MO381000668/1 In stock		£19.61 £16.34
