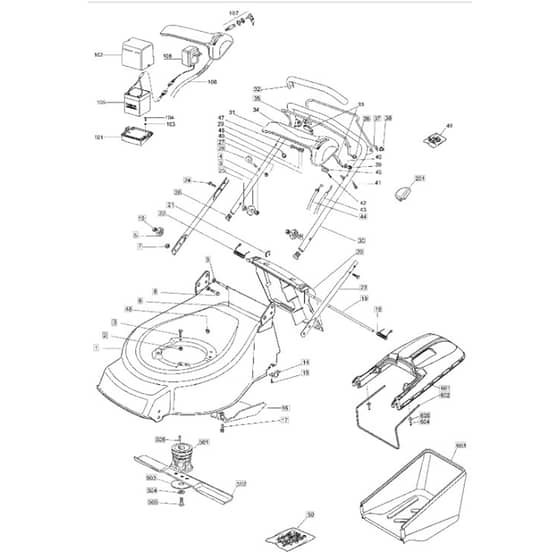

460R PD - 2005 - 23-3781-74 - Mountfield Rotary Mower Handle Diagram

460R PD - 2005 - 23-3781-74 - Mountfield Rotary Mower Handle Diagram
460R PD - 2005 - 23-3781-74 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield 460R PD Parts Diagram

Product Name - 460R PD

Model Year - 2005

Model Type -

Art.N - 23-3781-74

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  2 Lock Nut MO112155000/0
Lock Nut
 In stock
£1.49 £1.24

  3 Screw L . 60 mm MO9997-0860-16
Screw L . 60 mm
 Out of stock
£1.49 £1.24

  3 Screw L . 30 mm MO112793701/0
Screw L . 30 mm
 Out of stock
£1.49 £1.24

  4 Nut MO112293202/0
Nut
 Out of stock
£1.90 £1.58

  5 Knob MO122399900/0
Knob
 In stock
£1.49 £1.24

  8 Screw MO9997-0816-16
Screw
 Out of stock
£1.49 £1.24

  9 Bushing MO322041955/0
Bushing
 Out of stock
£1.49 £1.24

  10 Nut MO112293200/0
Nut
 Out of stock
£1.49 £1.24

  14 Plate MO322545154/0
Plate
 Out of stock
£1.49 £1.24

  15 Screw MO112731350/0
Screw
 Out of stock
£1.49 £1.24

  16 Belt Protection MO122060195/0
Belt Protection
 In stock
£4.60 £3.83

  17 Screw MO112728903/0
Screw
 In stock
£1.36 £1.13

  18 Spring-Lh MO122450420/1
Spring-Lh
 Out of stock
£1.90 £1.58

  19 Pivot Pin MO122517906/1
Pivot Pin
 Out of stock
£14.11 £11.76

  20 Flap MO381008021/3
Flap
 Out of stock
£19.98 £16.65

  21 Circlip MO112000930/0
Circlip
 In stock
£1.49 £1.24

  22 Spring-Rh MO122450410/1
Spring-Rh
 Out of stock
£11.66 £9.72

  24 Screw MO112819125/0
Screw
 Out of stock
£1.39 £1.16

  25 Washer MO122680006/1
Washer
 In stock
£1.75 £1.46

  26 Cap MO118566112/0
Cap
 Out of stock
£1.49 £1.24

  27 Nut MO112154330/0
Nut
 Out of stock
£1.49 £1.24

  28 Rope Guide MO122430309/0
Rope Guide
 Out of stock
£2.98 £2.48

  32 Hand Grip-Black MO122291050/0
Hand Grip-Black
 Out of stock
£13.68 £11.40

  35 Lever. Thread Engine Brake MO181003291/3
Lever. Thread Engine Brake
 Out of stock
£14.35 £11.96

  36 Bushing MO122041966/0
Bushing
 In stock
£1.49 £1.24

  37 Drive Lever MO181003288/1
Drive Lever
 Out of stock
£11.17 £9.31

  38 Bushing MO322041965/1
Bushing
 Out of stock
£1.49 £1.24

  44 Cable. Thread Engine Brake MO181000625/0
Cable. Thread Engine Brake
 In stock
£12.19 £10.16

  48 Rubber Insert MO322291150/0
Rubber Insert
 Out of stock
£1.49 £1.24

  50 Outfit. Screws MO381008642/0
Outfit. Screws
 Out of stock
£26.74 £22.28

  201 Protection MO122601000/0
Protection
 Out of stock
£1.49 £1.24

  501 Blade Holder W.Pulley MO122465607/4
Blade Holder W.Pulley
 In stock
£9.02 £7.52

  502 Blade MO181004346/3
Blade
 In stock
£13.75 £11.46

  503 Elastic Washer MO122160400/0
Elastic Washer
 In stock
£1.75 £1.46

  504 Washer MO112523080/0
Washer
 In stock
£1.49 £1.24

  505 Screw MO112735698/0
Screw
 In stock
£1.75 £1.46

  506 Key MO112139100/0
Key
 In stock
£1.49 £1.24

  601 Top Collector-Black MO322486104/1
Top Collector-Black
 Out of stock
£33.10 £27.58

  602 Wire Frame MO122608527/0
Wire Frame
 Out of stock
£10.97 £9.14

  603 Grass Bag MO181002227/0
Grass Bag
 Out of stock
£50.11 £41.76

  604 Screw MO112728705/0
Screw
 Out of stock
£2.58 £2.15

  605 Washer MO112523050/0
Washer
 In stock
£1.49 £1.24


Description

Mountfield 460R PD Parts Diagram

Product Name - 460R PD

Model Year - 2005

Model Type -

Art.N - 23-3781-74
