460R HP - 2010 - 294486023/M10 - Mountfield Rotary Mower Roller Assembly Diagram

Name: 460R HP - 2010 - 294486023/M10 - Mountfield Rotary Mower Roller Assembly Diagram
SKU: 460r_hp_294486023_m10_roller_assembly-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

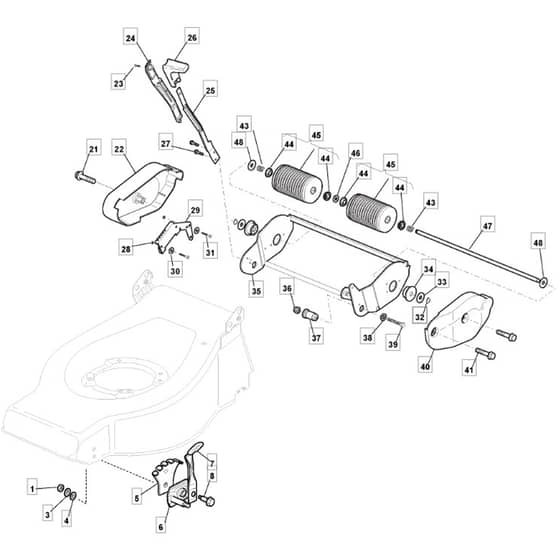

460R HP - 2010 - 294486023/M10 - Mountfield Rotary Mower Roller Assembly Diagram

Description

Mountfield 460R HP Parts Diagram

Product Name - 460 R HP

Model Year - 2010

Model Type - TD 484

Art.N - 294486023/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.49 £1.24
3	MO112583500/0 Out of stock	Grower	£1.49 £1.24
4	MO112523070/0 Out of stock	Washer	£1.49 £1.24
5	MO322735547/0 Out of stock	Sector. Height Adjustment	£2.17 £1.81
6	MO381005082/0 In stock	Wheel Support	£16.54 £13.78
7	MO481003285/1 In stock	Lever	£18.79 £15.66
8	MO122519811/0 Out of stock	Pin	£1.49 £1.24
21	MO112735594/0 Out of stock	Screw	£1.49 £1.24
22	MO322060201/0 In stock	Red Right Roller Prot. Carter Dark Red	£2.10 £1.75
23	MO112728722/0 Out of stock	Screw	£1.49 £1.24
24	MO322109722/0 Out of stock	Lever Cover Red	£3.65 £3.04
25	MO322321505/0 In stock	Lever. Height Adjustment	£35.08 £29.23
26	MO322399805/0 In stock	Knob	£13.20 £11.00
27	MO112735122/0 Out of stock	Screw	£1.49 £1.24
28	MO112154330/0 Out of stock	Nut	£1.49 £1.24
30	MO112521331/0 Out of stock	Washer	£1.49 £1.24
31	MO112789000/0 Out of stock	Screw	£1.49 £1.24
32	MO112000957/0 Out of stock	Benzing Ring From 01-9-2006	£1.49 £1.24
32	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.49 £1.24
33	MO322672151/0 Out of stock	Antifriction Washer	£1.75 £1.46
34	MO322034512/0 Out of stock	Bushing	£1.90 £1.58
35	MO381005109/1 Out of stock	Roller Support	£131.38 £109.48
36	MO112293201/0 In stock	Nut	£1.63 £1.36
37	MO122785132/0 Out of stock	Roller Support	£4.07 £3.39
38	MO112523060/0 In stock	Washer	£1.49 £1.24
39	MO112691700/0 Out of stock	Screw	£1.75 £1.46
40	MO322060202/0 Out of stock	Red Left Roller Prot. Carter Dark Red	£2.30 £1.92
41	MO112735592/0 Out of stock	Screw	£1.90 £1.58
43	MO122430210/0 Out of stock	Bearing	£1.63 £1.36
44	MO122122206/0 In stock	Bearing	£1.75 £1.46
45	MO381007400/0 In stock	Roller	£20.17 £16.81
46	MO112521370/0 Out of stock	Washer	£1.49 £1.24
47	MO122033360/0 Out of stock	Axle. Roller	£6.10 £5.08
