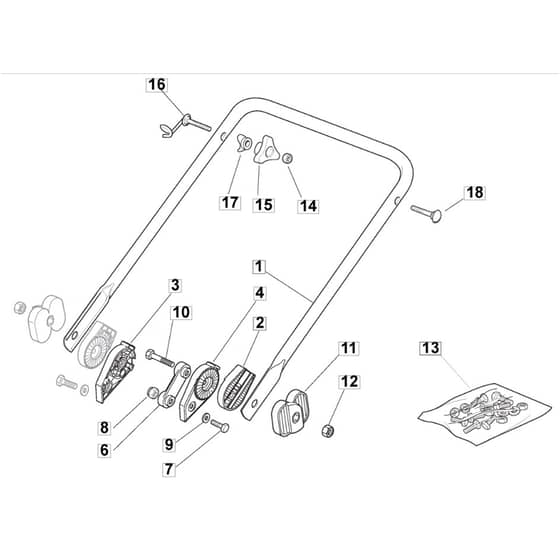

460 PD - 2008 - 294485023/UM8 - Mountfield Rotary Mower Lower Handle Diagram

Name: 460 PD - 2008 - 294485023/UM8 - Mountfield Rotary Mower Lower Handle Diagram
SKU: 460_pd_294485023_um8_lower_handle-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

460 PD - 2008 - 294485023/UM8 - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield 460 PD Parts Diagram

Product Name - 460 PD

Model Year - 2008

Model Type - TD 484 TR 4S

Art.N - 294485023/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006532/0 In stock	Handle Lower Part	£36.56 £30.47
2	MO322785081/1 Out of stock	Support. External From 01-9-2003	£4.60 £3.83
3	MO122785082/0 Out of stock	Right Internal Support	£3.25 £2.71
4	MO122785083/1 Out of stock	Left Internal Support	£3.25 £2.71
6	MO122551575/0 Out of stock	Inside Plaque	£1.49 £1.24
7	MO112793301/0 Out of stock	Screw	£1.49 £1.24
8	MO112155000/0 In stock	Nut	£1.49 £1.24
9	MO112521350/0 In stock	Washer	£1.49 £1.24
10	MO112691810/0 Out of stock	Screw	£1.75 £1.46
11	MO122399803/0 Out of stock	Knob	£1.63 £1.36
12	MO112293202/0 Out of stock	Nut	£1.90 £1.58
13	MO181008623/1 Out of stock	Outfit. Screws From 01-9-2003	£8.93 £7.44
13	MO381008596/1 Out of stock	Outfit. Screws To 31-8-2002	£24.11 £20.09
14	MO112293200/0 In stock	Nut	£1.49 £1.24
15	MO122399900/0 In stock	Black Knob	£1.49 £1.24
16	MO181003801/1 In stock	Guide Spring	£3.25 £2.71
17	MO122680006/1 In stock	Washer	£1.75 £1.46
18	MO112819201/0 Out of stock	Carriage Bolt M8 X 60	£2.70 £2.25
