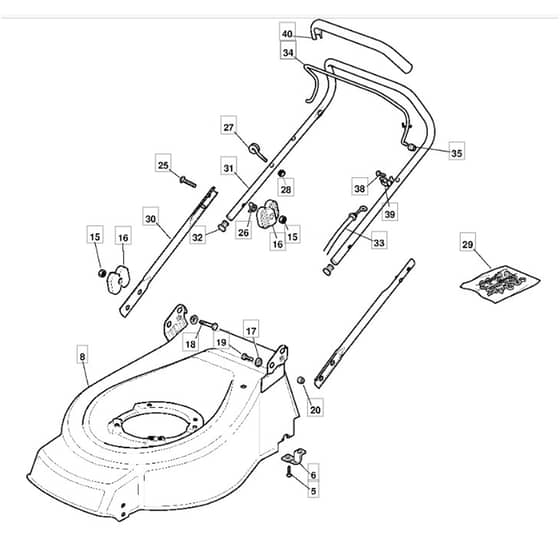

46 R HP - 2006 - 294486043/MO6 - Mountfield Rotary Mower Upper Handle Diagram

46 R HP - 2006 - 294486043/MO6 - Mountfield Rotary Mower Upper Handle Diagram
46 R HP - 2006 - 294486043/MO6 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield 46 R HP Parts Diagram

Product Name - 46 R HP

Model Year - 2006

Model Type - TD 484

Art.N - 294486043/MO6

Ref. Img. Part No. Details
  1 Screw To 31-August-2004
Screw To 31-August-2004
MO112731350/0 Out of stock
Screw To 31-August-2004
£1.48 £1.23

  6 Plate
Plate
MO322545154/0 Out of stock
Plate
£1.66 £1.38

  15 Nut
Nut
MO112293202/0 Out of stock
Nut
£1.87 £1.56

  16 Knob
Knob
MO122399803/0 Out of stock
Knob
£1.61 £1.34

  17 Bushing
Bushing
MO322041955/0 Out of stock
Bushing
£1.66 £1.38

  19 Screw
Screw
MO112792610/0 Out of stock
Screw
£1.66 £1.38

  20 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  25 Screw
Screw
MO112819125/0 Out of stock
Screw
£1.48 £1.23

  26 Washer
Washer
MO122680006/1 In stock
Washer
£1.74 £1.45

  27 Spring
Spring
MO122430309/0 Out of stock
Spring
£2.94 £2.45

  28 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.48 £1.23

  31 Handle Lower Part
Handle Lower Part
MO381006977/1 Out of stock
Handle Lower Part
£33.10 £27.58

  32 Polyethylene Push Road D.20Inch
Polyethylene Push Road D.20Inch
MO118566112/0 Out of stock
Polyethylene Push Road D.20Inch
£1.48 £1.23

  33 Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine
Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine
MO181000611/0 In stock
Cable. Thread Engine Brake SV40 . RV 40 . V35 Engine
£13.19 £10.99

  34 Lever. Engine Brake From 01-9-2006
Lever. Engine Brake From 01-9-2006
MO181003291/3 Out of stock
Lever. Engine Brake From 01-9-2006
£14.14 £11.78

  35 Bushing
Bushing
MO122041966/0 In stock
Bushing
£1.48 £1.23

  38 Screw
Screw
MO112728518/0 Out of stock
Screw
£1.48 £1.23

  39 Support
Support
MO322806612/0 Out of stock
Support
£3.06 £2.55

  40 Soft Hand Grip [Black]
Soft Hand Grip [Black]
MO122291050/0 Out of stock
Soft Hand Grip [Black]
£13.52 £11.27


Description

Mountfield 46 R HP Parts Diagram

Product Name - 46 R HP

Model Year - 2006

Model Type - TD 484

Art.N - 294486043/MO6
