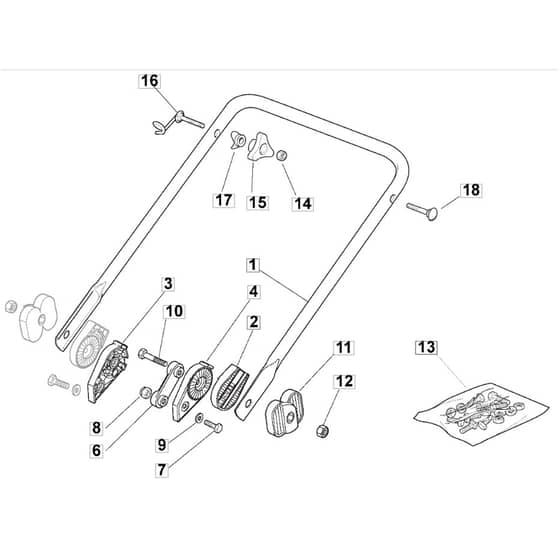

4310 HP - 2009 - 294434043/M09 - Mountfield Rotary Mower Lower Handle Diagram

Name: 4310 HP - 2009 - 294434043/M09 - Mountfield Rotary Mower Lower Handle Diagram
SKU: 4310_hp_294434043_m09_lower_handle-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4310 HP - 2009 - 294434043/M09 - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield 4310 HP Parts Diagram

Product Name - 4310 HP

Model Year - 2009

Model Type - TD 434

Art.N - 294434043/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006532/0 In stock	Handle	£34.28 £28.57
2	MO322785081/1 Out of stock	Support. External From 01-9-2003	£4.31 £3.59
3	MO122785082/0 Out of stock	Right Internal Support	£3.04 £2.53
4	MO122785083/1 Out of stock	Left Internal Support	£3.04 £2.53
6	MO122551575/0 Out of stock	Inside Plaque	£1.39 £1.16
7	MO112793301/0 Out of stock	Screw	£1.39 £1.16
8	MO112155000/0 In stock	Nut	£1.39 £1.16
9	MO112521350/0 In stock	Washer	£1.39 £1.16
10	MO112691810/0 Out of stock	Screw	£1.66 £1.38
11	MO122399803/0 Out of stock	Knob	£1.54 £1.28
12	MO112293202/0 Out of stock	Nut	£1.78 £1.48
13	MO381008596/1 Out of stock	Outfit. Screws To 31-8-2002	£22.60 £18.83
13	MO181008623/1 Out of stock	Outfit. Screws From 01-9-2003	£8.38 £6.98
14	MO112293200/0 In stock	Nut	£1.39 £1.16
15	MO122399900/0 In stock	Black Knob	£1.39 £1.16
16	MO181003801/1 In stock	Guide Spring	£3.04 £2.53
17	MO122680006/1 In stock	Washer	£1.66 £1.38
18	MO112819201/0 Out of stock	Carriage Bolt M8 X 60	£2.54 £2.12
