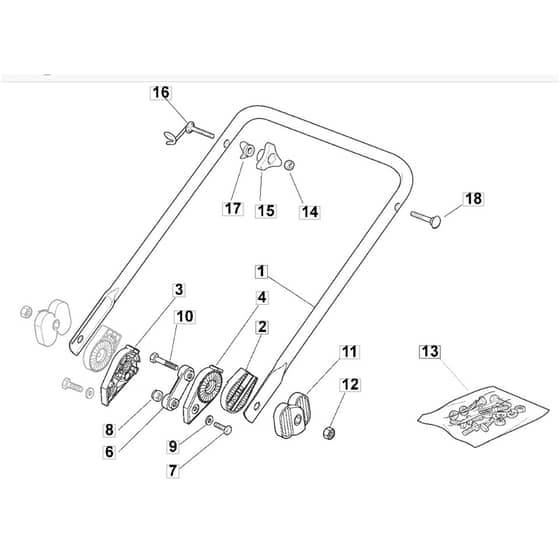

420 HP - 2008 - 294434123/UM8 - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield 420 HP Parts Diagram

Product Name - 420 HP

Model Year - 2008

Model Type - TD 434

Art.N - 294434123/UM8

Engine Model - 420 HP

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006532/0 In stock	Handle Lower Part	£36.92 £30.77
2	MO322785081/1 Out of stock	Support. External From 01-9-2003	£4.58 £3.82
3	MO122785082/0 Out of stock	Right Internal Support	£3.22 £2.68
4	MO122785083/1 Out of stock	Left Internal Support	£3.22 £2.68
6	MO122551575/0 Out of stock	Inside Plaque	£1.48 £1.23
7	MO112793301/0 Out of stock	Screw	£1.48 £1.23
8	MO112155000/0 In stock	Nut	£1.48 £1.23
9	MO112521350/0 In stock	Washer	£1.48 £1.23
10	MO112691810/0 Out of stock	Screw	£1.74 £1.45
11	MO122399803/0 Out of stock	Knob	£1.61 £1.34
12	MO112293202/0 Out of stock	Nut	£1.87 £1.56
13	MO181008623/1 Out of stock	Outfit. Screws From 01-9-2003	£7.26 £6.05
13	MO381008596/1 Out of stock	Outfit. Screws To 31-8-2002	£19.61 £16.34
14	MO112293200/0 In stock	Nut	£1.48 £1.23
15	MO122399900/0 In stock	Black Knob	£1.48 £1.23
16	MO181003801/1 In stock	Guide Spring	£3.18 £2.65
17	MO122680006/1 In stock	Washer	£1.74 £1.45
18	MO112819201/0 Out of stock	Carriage Bolt M8 X 60	£2.68 £2.23
