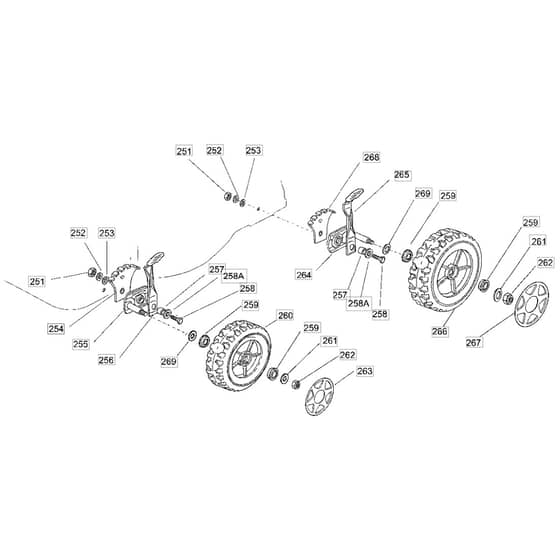

42 HP - 2005 - 23-1581-74 - Mountfield Rotary Mower Wheels Diagram

Name: 42 HP - 2005 - 23-1581-74 - Mountfield Rotary Mower Wheels Diagram
SKU: 42_hp_23_1581_74_wheels-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

42 HP - 2005 - 23-1581-74 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 42 HP Parts Diagram

Product Name - 42 HP

Model Year - 2005

Model Type -

Art.N - 23-1581-74

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112293200/0 In stock	Nut	£1.49 £1.24
252	MO112583500/0 Out of stock	Washer	£1.49 £1.24
253	MO112523070/0 Out of stock	Washer	£1.49 £1.24
255	MO381005082/0 In stock	Wheel Support	£16.54 £13.78
256	MO381003284/0 Out of stock	Lever. Height Adjustment	£12.40 £10.33
257	MO122171001/0 Out of stock	Spacer	£1.90 £1.58
258	MO112521350/0 In stock	258A Washer	£1.49 £1.24
258	MO112793701/0 Out of stock	Screw	£1.49 £1.24
259	MO122034508/0 In stock	Bushing	£1.49 £1.24
260	MO381007351/0 In stock	Wheel	£13.14 £10.95
261	MO112523060/0 In stock	Washer	£1.49 £1.24
262	MO112155000/0 In stock	Lock Nut	£1.49 £1.24
263	MO322110381/0 Out of stock	Hub Cap-Grey	£3.25 £2.71
264	MO381005084/0 Out of stock	Wheel Support	£5.47 £4.56
265	MO481003286/0 Out of stock	Lever. Height Adjustment	£4.60 £3.83
266	MO381007360/0 Out of stock	Wheel	£15.98 £13.32
268	MO322735547/0 Out of stock	Sector. Height Adjustment	£2.17 £1.81
269	MO112530150/0 Out of stock	Elastic Washer	£1.36 £1.13
