394 P-B - 2017-2019 - 297411028/AMZ - Mountfield Rotary Mower Blade Diagram

Name: 394 P-B - 2017-2019 - 297411028/AMZ - Mountfield Rotary Mower Blade Diagram
SKU: 394_p_b_297411028_amz_blade-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

394 P-B - 2017-2019 - 297411028/AMZ - Mountfield Rotary Mower Blade Diagram

Description

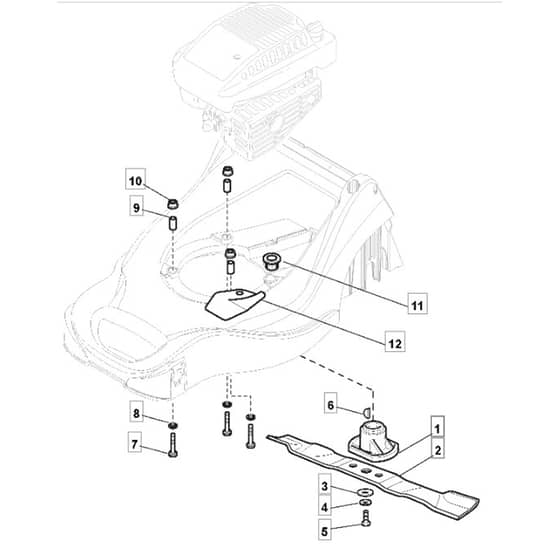

Mountfield 394 P-B Parts Diagram

Product Name - 394 P-B

Model Year - 2017-2019

Model Type - EP 414

Art.N - 297411028/AMZ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122463012/4 In stock	Hub	£7.79 £6.49
2	MO181004360/3 Out of stock	Mulching Blade	£11.92 £9.93
3	MO122160400/0 In stock	Elastic Disc	£1.75 £1.46
4	MO112523080/0 In stock	Washer	£1.49 £1.24
5	MO112735698/0 In stock	Screw	£1.75 £1.46
6	MO112139100/0 In stock	Key	£1.49 £1.24
7	MO112691900/0 Out of stock	Screw	£1.74 £1.45
8	MO112523060/0 In stock	Washer	£1.49 £1.24
9	MO122167842/0 Out of stock	Spacer From 01-9-2010	£3.25 £2.71
10	MO112154210/0 In stock	Nut	£1.63 £1.36
11	MO122040265/0 Out of stock	Bushing	£1.36 £1.13
12	MO322484070/1 Out of stock	Muffler Guard Plate	£2.17 £1.81
