1636H - 2007 - 299964683/MO7 - Mountfield Ride On Mower Body Diagram

Description

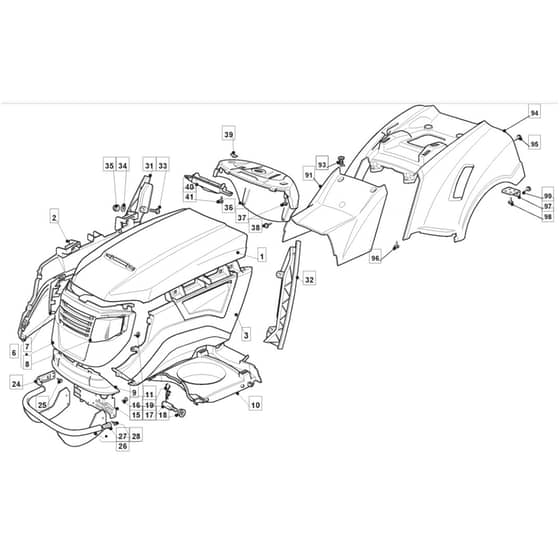

Mountfield 1636H Parts Diagram

Product Name - 1636H

Model Year - 2007

Model Type - NJS 92 Hydro

Art.N - 299964683/MO7

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076871/0 Out of stock	Upper Engine Hood Red	£103.12 £85.93
2	MO382394614/0 Out of stock	Hood. Right	£76.38 £63.65
3	MO382394615/0 Out of stock	Hood. Left	£78.94 £65.78
6	MO382394613/0 Out of stock	Hood. Front	£78.94 £65.78
7	MO325410876/0 Out of stock	Right Grill	£8.28 £6.90
8	MO325410877/0 Out of stock	Left Grill	£8.28 £6.90
9	MO325076870/1 Out of stock	Lower Hood. Front	£15.53 £12.94
10	MO325108031/0 Out of stock	Conveyor	£53.47 £44.56
11	MO112735403/0 In stock	Screw	£1.48 £1.23
15	MO325774301/2 Out of stock	Engine Hood Support	£16.68 £13.90
17	MO125510169/1 Out of stock	Pin	£2.28 £1.90
18	MO112293201/0 In stock	Nut	£1.61 £1.34
19	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
24	MO325547159/1 Out of stock	Plate	£4.45 £3.71
25	MO112731580/0 Out of stock	Screw	£1.48 £1.23
26	MO382869027/0 Out of stock	Muffler Protection	£95.48 £79.57
27	MO118737860/0 Out of stock	Cap	£1.48 £1.23
28	MO112735120/0 Out of stock	Screw	£1.48 £1.23
31	MO325599012/0 Out of stock	Dashboard. Right Profile	£6.62 £5.52
32	MO325599013/0 Out of stock	Dashboard. Left Profile	£6.49 £5.41
33	MO112815221/0 Out of stock	Screw	£1.34 £1.12
34	MO112521330/0 Out of stock	Washer	£1.48 £1.23
35	MO112154510/0 In stock	Nut	£1.48 £1.23
36	MO325120191/2 Out of stock	Dashboard	£33.10 £27.58
37	MO112728440/0 Out of stock	Screw	£1.34 £1.12
38	MO112735402/0 In stock	Screw	£1.48 £1.23
39	MO125260000/0 Out of stock	Grommet	£2.81 £2.34
40	MO325600074/0 Out of stock	Card Protection	£8.65 £7.21
93	MO125580020/2 In stock	Stake	£7.90 £6.58
94	MO325110322/0 Out of stock	Red Wheels Cover	£94.21 £78.51
97	MO325755041/0 Out of stock	Bracket	£1.66 £1.38
98	MO112728686/0 In stock	Screw	£1.48 £1.23
99	MO112735110/0 Out of stock	Flanged Self-Tap Screw 4.8 X 13	£1.48 £1.23
