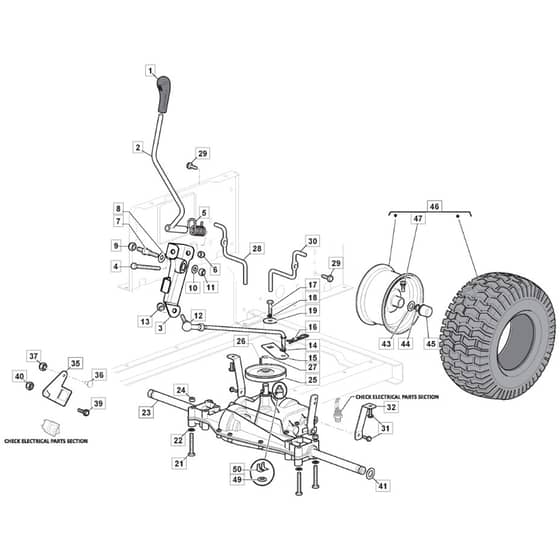

1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram

Name: 1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram
SKU: 1538m_2t2520483_m20_peerless_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Peerless Transmission Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2020

Model Type - MPNS 98

Art.N - 2T2520483/M20

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394532/0 Out of stock	Knob	£4.07 £3.39
2	MO382318257/0 Out of stock	Lever	£16.30 £13.58
3	MO382774259/1 Out of stock	Clamp	£12.60 £10.50
4	MO112692050/0 In stock	Screw	£1.74 £1.45
5	MO125430226/0 Out of stock	Spring	£2.15 £1.79
7	MO125510035/0 Out of stock	Pin	£3.48 £2.90
8	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
10	MO112523060/0 In stock	Washer	£1.48 £1.23
11	MO112155010/0 Out of stock	Nut	£2.00 £1.67
12	MO382000567/1 Out of stock	Gear Rod Assy	£25.21 £21.01
13	MO112154210/0 In stock	Nut	£1.61 £1.34
14	MO112521340/0 Out of stock	Washer	£1.34 £1.12
15	MO325318235/0 Out of stock	Lever	£2.42 £2.02
16	MO112141418/0 In stock	Cotter Pin	£1.48 £1.23
17	MO112735520/0 Out of stock	Screw	£1.48 £1.23
18	MO112540040/0 Out of stock	Washer	£1.34 £1.12
19	MO322680009/0 Out of stock	Washer	£1.52 £1.27
21	MO112691600/0 Out of stock	Screw	£1.74 £1.45
22	MO112521350/0 In stock	Washer	£1.48 £1.23
23	MO118400910/4 Out of stock	Transmission Mst 205-591 From 11-3-2022	£509.23 £424.36
23	MO118400922/0 Out of stock	Transmission Mst 205-535H To 10-3-2022	£582.49 £485.41
24	MO112155000/0 In stock	Nut	£1.48 £1.23
25	MO182601509/0 Out of stock	Pulley	£72.56 £60.47
26	MO112139430/0 Out of stock	Key	£1.87 £1.56
27	MO112608950/0 Out of stock	Seeger	£1.48 £1.23
28	MO125270329/0 Out of stock	Belt Guide	£4.15 £3.46
29	MO112735599/0 Out of stock	Screw	£1.48 £1.23
30	MO125270330/0 Out of stock	Belt Guide	£4.15 £3.46
31	MO125943009/0 Out of stock	Screw	£1.55 £1.29
32	MO325785315/0 Out of stock	Support	£5.35 £4.46
35	MO325785483/1 Out of stock	Support From 01-9-2021	£4.20 £3.50
35	MO325785483/0 Out of stock	Support To 31-8-2021	£3.95 £3.29
36	MO112815200/0 In stock	Screw	£1.48 £1.23
37	MO112154510/0 In stock	Nut	£1.48 £1.23
39	MO112792611/0 Out of stock	Screw	£1.48 £1.23
41	MO125670005/2 Out of stock	Washer	£3.89 £3.24
44	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
45	MO322110233/0 In stock	Hub Cover Standard Black	£1.66 £1.38
46	MO382680104/0 Out of stock	Wheel Assy	£158.46 £132.05
47	MO125950000/0 Out of stock	Valve	£5.09 £4.24
49	MO112540221/0 Out of stock	Washer	£4.42 £3.68
50	MO133800001/0 Out of stock	Male Faston Terminal 250 Gmg40164.51.72.	£1.34 £1.12
