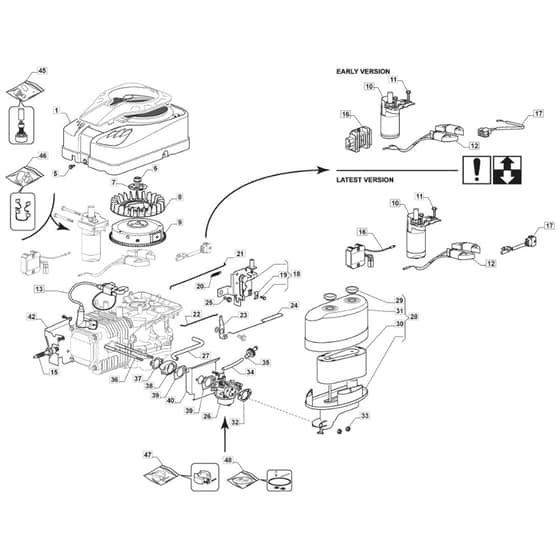

1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Carburettor Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2020

Model Type - MPNS 98

Art.N - 2T2520483/M20

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550516/0 Out of stock	Cover	£28.12 £23.43
5	MO112791213/1 Out of stock	Screw	£1.48 £1.23
6	MO118550237/0 Out of stock	Nut	£3.22 £2.68
7	MO118550236/0 Out of stock	Starter Cup	£6.02 £5.02
8	MO118550235/1 Out of stock	Flywheel Fan	£23.90 £19.92
9	MO118550234/2 Out of stock	Flywheel Ass.Y	£214.25 £178.54
10	MO118551440/0 Out of stock	Start Motor Assy latest version	£154.00 £128.33
10	MO118550214/0 Out of stock	Start Motor Assy early version	£154.00 £128.33
11	MO112691100/0 Out of stock	Screw	£1.48 £1.23
12	MO118551441/0 Out of stock	Coil Assy. Charge latest version	£54.90 £45.75
12	MO118550210/1 Out of stock	Coil Assy. Charge early version	£51.56 £42.97
13	MO118551438/0 Out of stock	Elettronic Coil latest version	£41.51 £34.59
13	MO118550209/1 In stock	Elettronic Coil early version	£41.11 £34.26
15	3381 In stock	Spark Plug	£3.84 £3.20
16	MO118551428/1 Out of stock	Rectfier latest version	£54.90 £45.75
16	MO118550208/1 Out of stock	Rectfier early version	£72.98 £60.82
17	MO118550207/1 Out of stock	Output Wire. Rectifier early version	£12.32 £10.27
17	MO118551439/0 Out of stock	Output Wire. Rectifier latest version	£12.18 £10.15
18	MO118550331/1 Out of stock	Remote Control Assy	£40.18 £33.48
20	MO118550213/0 Out of stock	Spring	£2.00 £1.67
21	MO118551219/0 Out of stock	Governor Link	£5.09 £4.24
22	MO118551218/0 Out of stock	Rod Choke	£4.55 £3.79
24	MO118551221/0 Out of stock	Throttle Rod	£2.81 £2.34
26	MO118551515/0 Out of stock	Carburetor	£79.01 £65.84
27	MO118550225/1 Out of stock	Breather Fuel Pipe	£8.44 £7.03
28	MO118550202/2 Out of stock	Air Cleaner Assy	£44.18 £36.82
29	MO118550201/0 Out of stock	Knob	£8.30 £6.92
30	MO118550199/0 In stock	Air Filter	£23.03 £19.19
31	MO118550200/0 Out of stock	Air Cleaner Cover	£15.94 £13.28
32	MO118550762/0 Out of stock	Air Filter Gasket	£5.35 £4.46
33	MO112292102/0 In stock	Nut	£1.61 £1.34
34	MO118551514/0 Out of stock	Fuel Pipe	£6.02 £5.02
35	MO118550427/0 In stock	Fuel Filter	£5.22 £4.35
36	MO118551279/0 Out of stock	Double-Screw Bolt	£3.61 £3.01
37	MO118551263/0 Out of stock	Intake Manifold Gasket	£1.74 £1.45
38	MO118551265/0 Out of stock	Intake Manifold	£6.96 £5.80
39	MO118551262/0 Out of stock	Carburetor Gasket	£1.74 £1.45
40	MO118551259/0 Out of stock	Guard	£19.81 £16.51
45	MO118550365/1 Out of stock	Kit Repair	£48.20 £40.17
46	MO118550332/1 Out of stock	Brushhold	£33.48 £27.90
47	MO118550440/0 Out of stock	Kit Repair. Carburettor	£9.91 £8.26
48	MO118550442/0 Out of stock	Carburettor Gasket Set	£15.00 £12.50
