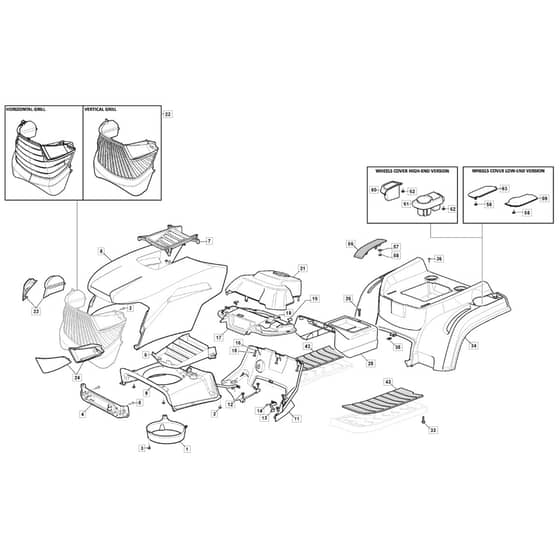

1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2020

Model Type - MPNS 98

Art.N - 2T2520483/M20

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325108105/0 Out of stock	Air Conveyor	£9.29 £7.74
2	MO112728706/0 In stock	Screw	£1.48 £1.23
3	MO112728686/0 In stock	Screw	£1.48 £1.23
4	MO325785551/0 Out of stock	Engine Hood Support	£11.08 £9.23
5	MO112735403/0 In stock	Screw	£1.48 £1.23
6	MO325263312/0 Out of stock	Air Intake Grill Grey NCS	£15.66 £13.05
7	MO325263311/0 Out of stock	Air Intake Grill Grey NCS	£15.66 £13.05
8	MO325077014/0 Out of stock	Engine Hood Red Dark Red	£146.40 £122.00
9	MO325108107/0 Out of stock	Air Conveyor Grey NCS	£52.20 £43.50
11	MO325785298/0 Out of stock	Dashboard Support	£29.28 £24.40
12	MO125943010/0 In stock	Screw	£1.87 £1.56
13	MO325270325/0 Out of stock	Guide	£4.58 £3.82
14	MO112735599/0 Out of stock	Screw	£1.48 £1.23
15	MO112735406/0 Out of stock	Screw	£1.48 £1.23
16	MO112523040/0 In stock	Washer	£1.48 £1.23
17	MO325120259/2 Out of stock	Dashboard	£33.10 £27.58
19	MO325260003/0 Out of stock	Grommet	£1.66 £1.38
21	MO325120203/0 Out of stock	Dashboard Cover for Bonnet MP - Low Dashboard without hole	£17.44 £14.53
22	MO325077004/1 Out of stock	Frontal Bonnet Black - Horizontal Grill	£57.29 £47.74
23	MO382185510/0 Out of stock	Right Lamp Light Assy	£47.10 £39.25
24	MO382185511/0 Out of stock	Left Lamp Light Assy	£47.10 £39.25
25	MO325110478/0 Out of stock	Red Central Cover Dark Red	£31.82 £26.52
34	MO325110480/0 Out of stock	Red Wheels Cover Dark Red	£101.84 £84.87
35	MO112437506/0 Out of stock	Plate	£2.41 £2.01
42	MO325110384/0 Out of stock	Right Footboard Cover As Optional - Not present on all assortment	£14.89 £12.41
43	MO325110385/0 Out of stock	Left Footboard Cover As Optional - Not present on all assortment	£14.89 £12.41
56	MO325207203/0 Out of stock	Cover	£4.45 £3.71
57	MO112523050/0 In stock	Washer	£1.48 £1.23
59	MO325207197/0 Out of stock	Cover	£3.70 £3.08
60	MO325207198/0 Out of stock	Cover	£8.40 £7.00
61	MO325207199/0 Out of stock	Cover	£10.94 £9.12
63	MO325207196/0 Out of stock	R.H Wheel Cover [Black]	£3.43 £2.86
