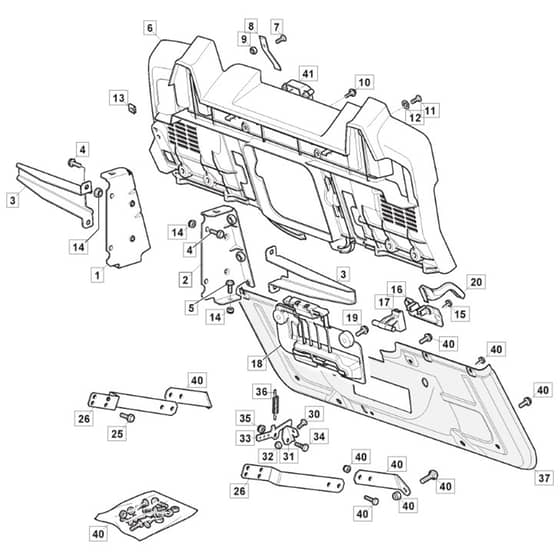

1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Rear Plate Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2016-2019

Model Type - MP 98

Art.N - 2T2520483/M16

Engine Model - Mountfield 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325774501/0 Out of stock	Right Clamp Bracket	£12.73 £10.61
2	MO325774507/1 Out of stock	Left Clamp Bracket From S.N 21JA3RON001268	£12.22 £10.18
2	MO325774507/0 Out of stock	Left Clamp Bracket To S.N 21JA3RON001267	£12.73 £10.61
3	MO325650163/0 Out of stock	Stiffening	£10.44 £8.70
4	MO125943009/0 Out of stock	Screw	£1.55 £1.29
6	MO325547299/2 Out of stock	Rear Plate. Upper Part	£43.28 £36.07
8	MO127430600/0 Out of stock	Spring	£2.68 £2.23
10	MO125943010/0 In stock	Screw	£1.87 £1.56
11	MO112789021/0 Out of stock	Screw	£1.74 £1.45
12	MO112523020/0 Out of stock	Washer	£1.48 £1.23
13	MO112437503/0 Out of stock	Plate	£1.87 £1.56
14	MO112155000/0 In stock	Nut	£1.48 £1.23
15	MO112728697/0 In stock	Screw	£1.48 £1.23
16	MO325109522/0 Out of stock	Protection Cover	£2.42 £2.02
17	MO325318276/0 In stock	Gearshift	£3.31 £2.76
18	MO325785428/0 Out of stock	Support	£9.17 £7.64
20	MO325318277/0 In stock	Lever Also on endowment p40	£1.66 £1.38
25	MO112793102/0 In stock	Screw	£1.48 £1.23
26	MO325774521/0 Out of stock	Clamp	£8.78 £7.32
31	MO325755061/0 Out of stock	Bracket	£2.42 £2.02
32	MO112154330/0 Out of stock	Nut	£1.48 £1.23
33	MO325774533/0 Out of stock	Clamp	£4.45 £3.71
34	MO125510080/2 Out of stock	Pin	£1.34 £1.12
35	MO112154510/0 In stock	Nut	£1.48 £1.23
36	MO125430282/1 Out of stock	Spring	£1.74 £1.45
37	MO382547071/1 Out of stock	Plate	£108.22 £90.18
40	MO382180146/0 Out of stock	Outfit. Screws	£31.82 £26.52
41	MO325600107/0 Out of stock	Bag Switch Protection	£4.72 £3.93
