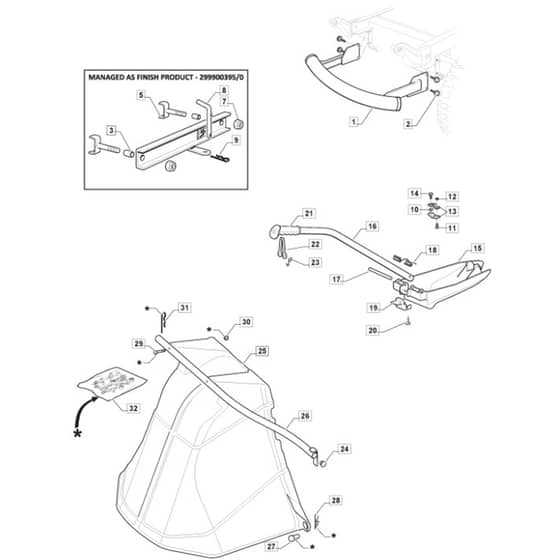

1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Options Diagram

Name: 1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Options Diagram
SKU: 1538m_2t2520483_m16_options-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Options Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2016-2019

Model Type - MP 98

Art.N - 2T2520483/M16

Engine Model - Mountfield 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382869038/0 Out of stock	Muffler Protection	£38.20 £31.83
2	MO112735599/0 Out of stock	Screw	£1.48 £1.23
3	MO125160108/0 Out of stock	Spacer	£2.68 £2.23
5	MO382650211/0 Out of stock	Stiffening	£4.84 £4.03
7	MO112155000/0 In stock	Nut	£1.48 £1.23
8	MO125510021/1 Out of stock	Hitch Pin	£10.58 £8.82
10	MO122170600/0 In stock	Spacer	Was £1.74 £1.45 Special Price £1.15 £0.96
11	MO112792099/0 In stock	Screw	£1.34 £1.12
12	MO112292102/0 In stock	Nut	£1.61 £1.34
13	MO327546015/2 Out of stock	Plate	£1.66 £1.38
14	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
15	MO325140112/0 Out of stock	Deflector	£23.04 £19.20
16	MO325394021/0 Out of stock	Handle	£16.04 £13.37
17	MO125510077/0 Out of stock	Pin	£3.22 £2.68
18	MO125430245/0 Out of stock	Spring	£3.35 £2.79
19	MO325547414/0 Out of stock	Plate	£3.95 £3.29
20	MO112735403/0 In stock	Screw	£1.48 £1.23
21	MO325280000/1 Out of stock	Handgrip	£3.06 £2.55
22	MO125840011/1 In stock	Tie Rod	£6.83 £5.69
23	MO125253004/0 Out of stock	Mulch.Kit Fixing Hook	£1.48 £1.23
24	MO118566112/0 Out of stock	Polyethylene Push Road D.20Inch	£1.48 £1.23
25	MO325600093/1 Out of stock	Ejection Guard	£63.66 £53.05
26	MO382869044/0 Out of stock	Support	£18.20 £15.17
27	MO125510022/1 In stock	Pin	£2.94 £2.45
28	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
29	MO112689515/0 Out of stock	Screw	£1.48 £1.23
30	MO112154510/0 In stock	Nut	£1.48 £1.23
31	MO124487999/0 In stock	Spring Pin	£1.74 £1.45
32	MO382180028/0 Out of stock	Screw Assembly Kit [Deflector]	£12.35 £10.29
