1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Frame Diagram

Name: 1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Frame Diagram
SKU: 1538m_2t2520483_m16_frame-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

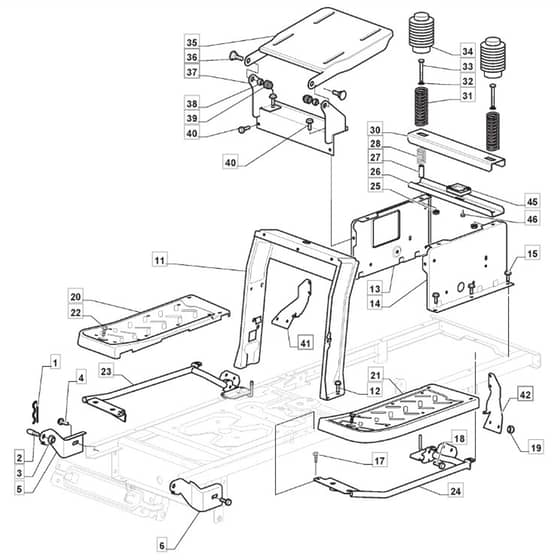

1538M - 2016-2019 - 2T2520483/M16 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2016-2019

Model Type - MP 98

Art.N - 2T2520483/M16

Engine Model - Mountfield 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
2	MO125510169/1 Out of stock	Pin	£2.28 £1.90
5	MO325547225/0 Out of stock	Right Plate	£5.99 £4.99
6	MO325547227/0 Out of stock	Left Plate	£6.36 £5.30
11	MO382785169/1 Out of stock	Steering Column Support	£45.83 £38.19
12	MO125943009/0 Out of stock	Screw	£1.55 £1.29
13	MO325785331/2 Out of stock	Right Seat Support	£35.65 £29.71
14	MO325785333/2 Out of stock	Left Seat Support	£31.82 £26.52
19	MO112155000/0 In stock	Nut	£1.48 £1.23
20	MO325500041/1 Out of stock	Right Footboard	£36.92 £30.77
21	MO325500043/1 Out of stock	Left Footboard	£39.47 £32.89
22	MO112735599/0 Out of stock	Screw	£1.48 £1.23
23	MO382785223/0 Out of stock	Footboard Support	£34.37 £28.64
24	MO382785221/0 Out of stock	Footboard Support	£35.65 £29.71
25	MO112293201/0 In stock	Nut	£1.61 £1.34
26	MO325820109/1 Out of stock	Seat Support	£9.04 £7.53
27	MO125160048/0 Out of stock	Spacer	£1.87 £1.56
28	MO125430263/0 Out of stock	Spring	£1.34 £1.12
30	MO325820111/1 Out of stock	Support	£9.42 £7.85
31	MO125430264/1 Out of stock	Spring	£8.90 £7.42
32	MO112521350/0 In stock	Washer	£1.48 £1.23
33	MO112691400/0 Out of stock	Screw	£1.48 £1.23
34	MO325600148/0 Out of stock	Hood	£1.40 £1.17
35	MO382547061/1 Out of stock	Plate	£35.65 £29.71
36	MO122524970/2 Out of stock	Fulcrum Pin To 31-8-2014	£1.80 £1.50
36	MO122524970/3 Out of stock	Pin From 01-9-2014	£1.61 £1.34
37	MO382820151/1 Out of stock	Seat Support From S.N 20EA3RON000612	£23.04 £19.20
37	MO382820151/0 Out of stock	Seat Support To S.N 20EA3RON000611	£24.19 £20.16
38	MO112155010/0 Out of stock	Nut	£2.00 £1.67
39	MO118203854/0 Out of stock	Cap	£1.48 £1.23
41	MO325650155/1 Out of stock	Support S.N 269797 To S.N 20BA3RON006584	£10.31 £8.59
41	MO325650155/2 Out of stock	Support From S.N 20BA3RON006585	£9.80 £8.17
41	MO325650155/0 Out of stock	Support To S.N 00271854	£10.44 £8.70
42	MO325650157/1 Out of stock	Support From S.N DD325495 To S.N 20AA3RON007470	£10.44 £8.70
42	MO325650157/2 Out of stock	Support From S.N 20AA3RON007537	£10.19 £8.49
42	MO325650157/0 Out of stock	Support To S.N 00271854	£10.44 £8.70
45	MO325785379/1 Out of stock	Support	£1.66 £1.38
46	MO112728686/0 In stock	Self-Tapping Screw Ka50 X 16	£1.48 £1.23
