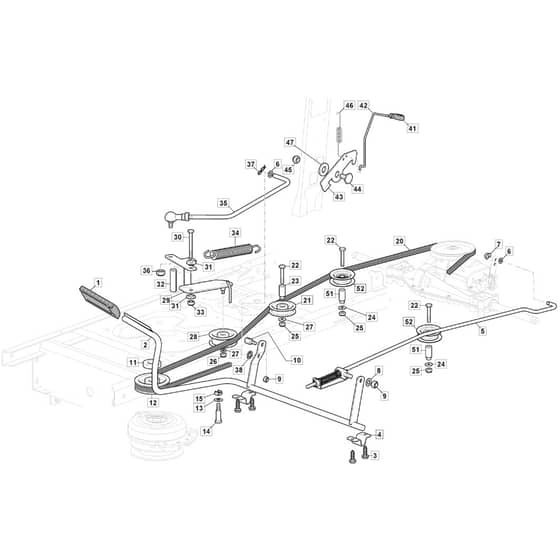

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2016-2019

Model Type - MP 98

Art.N - 2T2520483/M16

Engine Model - Mountfield 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110391/0 Out of stock	Clamp Cover	£6.36 £5.30
2	MO382500047/2 Out of stock	Pedal	£50.93 £42.44
3	MO112735599/0 Out of stock	Screw	£1.48 £1.23
4	MO325547231/1 Out of stock	Plate	£4.20 £3.50
5	MO382000568/0 In stock	Rod	£20.11 £16.76
6	MO112521350/0 In stock	Washer	£1.48 £1.23
7	MO112436050/0 In stock	Plate	£1.74 £1.45
8	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
10	MO125510166/0 Out of stock	Pin	£3.35 £2.79
11	MO125160021/0 Out of stock	Spacer	£5.63 £4.69
12	MO125601567/0 Out of stock	Pulley	£28.12 £23.43
13	MO112524010/0 Out of stock	Washer	£1.74 £1.45
14	MO125580030/0 Out of stock	Belt Guide Peg	£4.28 £3.57
15	MO112360425/0 Out of stock	Nut	£1.74 £1.45
20	MO135062018/0 In stock	Belt	£37.36 £31.13
21	MO325601599/0 In stock	Pulley Bearing hole ø15 (Steel)	£18.07 £15.06
21	MO125601613/0 Out of stock	Pulley Bearing hole ø15 (Plastic)	£12.18 £10.15
22	MO112691400/0 Out of stock	Screw	£1.48 £1.23
23	MO125160107/0 Out of stock	Spacer	£2.68 £2.23
24	MO112523060/0 In stock	Washer	£1.48 £1.23
25	MO112155000/0 In stock	Nut	£1.48 £1.23
28	MO125601554/0 In stock	Pulley	£24.43 £20.36
29	MO382318283/0 Out of stock	Lever	£18.20 £15.17
30	MO112691600/0 Out of stock	Screw	£1.74 £1.45
31	MO125038021/0 Out of stock	Bushing	£1.20 £1.00
32	MO125160027/0 Out of stock	Spacer	£2.41 £2.01
34	MO125430262/0 Out of stock	Spring	£5.50 £4.58
35	MO382820016/1 Out of stock	Tie Rod	£15.66 £13.05
36	MO112293201/0 In stock	Nut	£1.61 £1.34
37	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
38	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
41	MO125394509/1 In stock	Knob	£2.41 £2.01
42	MO125033113/0 Out of stock	Rod	£3.35 £2.79
43	MO325253011/1 Out of stock	Hook	£3.56 £2.97
44	MO122524970/3 Out of stock	Pin	£1.61 £1.34
46	MO125430213/0 Out of stock	Spring	£1.61 £1.34
51	MO125160111/0 Out of stock	Spacer	£4.02 £3.35
52	MO125601612/0 In stock	Pulley (Steel)	£33.48 £27.90
