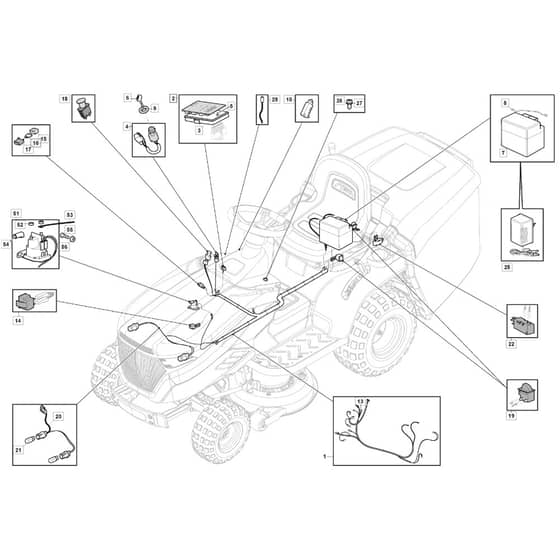

1538H - 2022-2023 - 2T2610483/M22 - Mountfield Ride On Mower Electrics Diagram

Name: 1538H - 2022-2023 - 2T2610483/M22 - Mountfield Ride On Mower Electrics Diagram
SKU: 1538h_2t2610483_m22_electrics-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538H - 2022-2023 - 2T2610483/M22 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield 1538H Parts Diagram

Product Name - 1538H

Model Year - 2022-2023

Model Type - MPNS 98 Hydro

Art.N - 2T2610483/M22

Engine Model - ST 450 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382722472/1 In stock	Electronic Card	£60.83 £50.69
2	MO382722476/1 Out of stock	Electronic Card	£59.04 £49.20
3	MO325600090/1 Out of stock	Card Protection	£4.45 £3.71
4	MO118450075/1 In stock	Starting Switch	£23.03 £19.19
5	MO112735105/0 Out of stock	Screw	£1.48 £1.23
6	MO118210023/0 In stock	Starting Key	£6.70 £5.58
7	MO118120068/0 In stock	Battery 12V 18Ah	£107.95 £89.96
8	MO125430265/1 Out of stock	Spring	£1.74 £1.45
9	MO118400863/0 Out of stock	Screwed Ring	£1.61 £1.34
10	MO119410609/1LC Out of stock	Microswitch	£25.85 £21.54
13	MO133567000/0 Out of stock	Relay Only For Honda Engines	£12.92 £10.77
14	MO119410623/0 Out of stock	Microswitch	£7.24 £6.03
15	MO133215000/0 Out of stock	Cover	£3.35 £2.79
16	MO133340040/0 Out of stock	Fuse 10 A 10A	£2.15 £1.79
16	MO133340036/0 Out of stock	Fuse 25 A 25A	£1.61 £1.34
17	MO133500007/0 Out of stock	Fuse Carrier	£6.96 £5.80
18	MO118450073/0 In stock	Clutch Switch Yellow	£14.20 £11.83
19	MO119410633/0 Out of stock	Microswitch	£5.94 £4.95
20	MO182040186/0 Out of stock	Headlights Cable [Led]	£10.19 £8.49
21	MO118459100/0 Out of stock	Lamp For Lights Headlight Bulb	£2.00 £1.67
22	MO119410605/1 In stock	Microswitch	£37.49 £31.24
25	MO182180190/1 Out of stock	Battery Charger Kit Uk-Ce Plug CE + BS Plug	£48.30 £40.25
26	MO325605003/0 Out of stock	Push Button Reverse Gear	£42.01 £35.01
27	MO325256250/0 Out of stock	Screwed Ring	£2.42 £2.02
28	MO182040174/0 Out of stock	Lamp Holder Cable Assy LED cable for alarm on dashboard	£5.22 £4.35
51	MO118736112/0 In stock	Solenoid	£36.16 £30.13
52	MO112361005/0 Out of stock	Nut	£4.02 £3.35
53	MO125065002/0 Out of stock	Cable	£9.97 £8.31
54	MO118564864/1 Out of stock	Protection	£5.63 £4.69
55	MO112790781/0 Out of stock	Screw	£1.48 £1.23
56	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.48 £1.23
