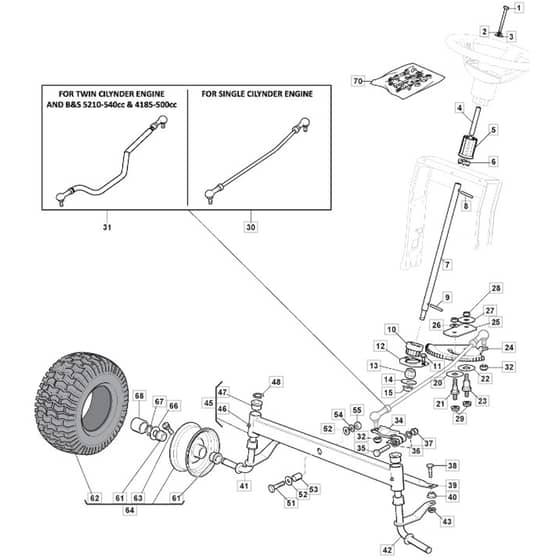

1538H - 2016-2019 - 2T2620483/M16 - Mountfield Ride On Mower Steering Diagram

1538H - 2016-2019 - 2T2620483/M16 - Mountfield Ride On Mower Steering Diagram
1538H - 2016-2019 - 2T2620483/M16 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1538H Parts Diagram

Product Name - 1538H

Model Year - 2016-2019

Model Type - MP 98 Hydro

Art.N - 2T2620483/M16

Engine Model - 7750

Ref. Img. Part No. Details
  1 Screw
Screw
MO112692050/0 In stock
Screw
£1.74 £1.45

  2 Washer
Washer
MO112540260/0 Out of stock
Washer
£1.48 £1.23

  3 Washer
Washer
MO112523070/0 Out of stock
Washer
£1.48 £1.23

  4 Spacer
Spacer
MO125160047/0 Out of stock
Spacer
£2.94 £2.45

  5 Support
Support
MO325785318/0 Out of stock
Support
£7.90 £6.58

  6 Bushing
Bushing
MO325038008/0 Out of stock
Bushing
£1.66 £1.38

  7 Steering Column
Steering Column
MO125520007/0 Out of stock
Steering Column
£18.74 £15.62

  8 Spring Pin 6X50
Spring Pin 6X50
MO112620300/0 In stock
Spring Pin 6X50
£1.74 £1.45

  9 Dowel Pin
Dowel Pin
MO112622650/0 Out of stock
Dowel Pin
£1.61 £1.34

  10 Pinion
Pinion
MO125570003/0 Out of stock
Pinion
£8.17 £6.81

  11 Screw
Screw
MO127943051/0 Out of stock
Screw
£1.74 £1.45

  12 Support
Support
MO325785213/1 Out of stock
Support
£1.91 £1.59

  13 Joint
Joint
MO325743000/0 In stock
Joint
£2.54 £2.12

  14 Washer
Washer
MO112521370/0 Out of stock
Washer
£1.48 £1.23

  15 Plate
Plate
MO112436030/0 Out of stock
Plate
£1.74 £1.45

  20 Antifriction Washer
Antifriction Washer
MO322672151/0 Out of stock
Antifriction Washer
£1.52 £1.27

  21 Pin
Pin
MO125510104/0 Out of stock
Pin
£1.66 £1.38

  22 Washer
Washer
MO125670023/0 Out of stock
Washer
£1.74 £1.45

  23 Pin
Pin
MO125510165/0 Out of stock
Pin
£4.55 £3.79

  24 Steering Sector
Steering Sector
MO325735519/0 Out of stock
Steering Sector
£33.10 £27.58

  25 Plate
Plate
MO325547233/0 Out of stock
Plate
£3.31 £2.76

  26 Elastic Washer
Elastic Washer
MO112369500/0 Out of stock
Elastic Washer
£1.34 £1.12

  27 Elastic Disc
Elastic Disc
MO122160400/0 In stock
Elastic Disc
£1.74 £1.45

  28 Nut
Nut
MO112155010/0 Out of stock
Nut
£2.00 £1.67

  30 Steering Rod For Single Cylinder Engine
Steering Rod For Single Cylinder Engine
MO382000566/2 In stock
Steering Rod For Single Cylinder Engine
£35.65 £29.71

  32 Nut
Nut
MO112156602/0 In stock
Nut
£1.34 £1.12

  34 Lever For Single and Twin Cilynder Engines
Lever For Single and Twin Cilynder Engines
MO382318323/0 In stock
Lever For Single and Twin Cilynder Engines
£7.24 £6.03

  35 Screw
Screw
MO112692390/0 Out of stock
Screw
£1.48 £1.23

  36 Washer
Washer
MO112521360/0 In stock
Washer
£1.48 £1.23

  38 Pin
Pin
MO125510103/0 Out of stock
Pin
£1.48 £1.23

  39 Tie Rod
Tie Rod
MO325840029/0 Out of stock
Tie Rod
£10.19 £8.49

  40 Bushing
Bushing
MO325038007/0 In stock
Bushing
£1.66 £1.38

  41 Right Stub Axle 15
Right Stub Axle 15
MO382230373/1 In stock
Right Stub Axle 15"
£53.47 £44.56

  42 Left Stub Axle 15
Left Stub Axle 15
MO382230375/1 Out of stock
Left Stub Axle 15"
£53.47 £44.56

  43 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  45 Equalizer With Bush And Lubricator
Equalizer With Bush And Lubricator
MO382034030/0 Out of stock
Equalizer With Bush And Lubricator
£101.84 £84.87

  46 Grease Dispenser
Grease Dispenser
MO112379511/0 Out of stock
Grease Dispenser
£1.48 £1.23

  47 Bushing
Bushing
MO125034002/1 In stock
Bushing
£3.61 £3.01

  48 Benzing Ring
Benzing Ring
MO112001010/0 Out of stock
Benzing Ring
£1.74 £1.45

  51 Screw
Screw
MO112692695/0 Out of stock
Screw
£1.48 £1.23

  52 Washer
Washer
MO112523100/0 Out of stock
Washer
£1.87 £1.56

  53 Spacer
Spacer
MO125160016/1 Out of stock
Spacer
£5.89 £4.91

  54 Grower
Grower
MO112587100/0 Out of stock
Grower
£1.48 £1.23

  55 Nut
Nut
MO112295300/0 Out of stock
Nut
£1.48 £1.23

  61 Bearing
Bearing
MO125122200/2 In stock
Bearing
£11.24 £9.37

  62 Tyre 15X6.00-6 P512 Wanda 15
Tyre 15X6.00-6 P512 Wanda 15
MO125590019/0 Out of stock
Tyre 15X6.00-6 P512 Wanda 15"
£64.27 £53.56

  63 Valve
Valve
MO125950000/0 Out of stock
Valve
£5.09 £4.24

  64 Wheel Assy 15
Wheel Assy 15
MO382680051/0 Out of stock
Wheel Assy 15" - P512 . Light Grey Rimm
£109.49 £91.24

  66 Washer
Washer
MO125670005/2 Out of stock
Washer
£3.89 £3.24

  68 Hub Cover Standard Black Cover
Hub Cover Standard Black Cover
MO322110233/0 In stock
Hub Cover Standard Black Cover
£1.66 £1.38

  70 Steering Wheel Assembly Pack
Steering Wheel Assembly Pack
MO382180142/0 Out of stock
Steering Wheel Assembly Pack
£3.95 £3.29
