Description

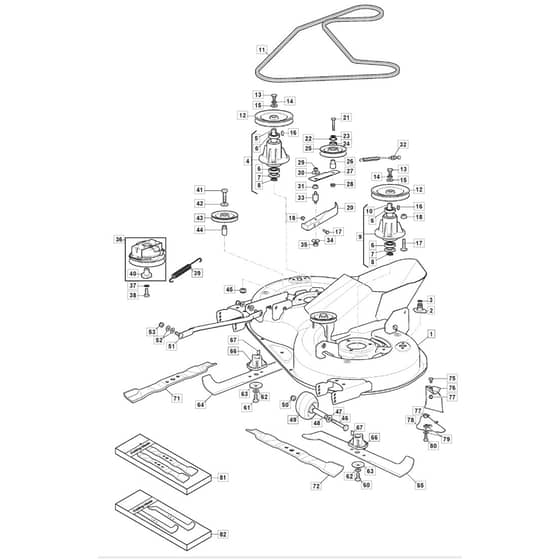

Mountfield 1530M Parts Diagram

Product Name - 1530 M

Model Year - 2020

Model Type - MPNS 84

Art.N - 2T2020483/M20

Engine Model - ST 500

Ref. Img. Part No. Details
  1 Cutting Plate Black
Cutting Plate Black
MO382564113/2 In stock
Cutting Plate Black
£381.62 £318.02

  2 Water Hose Connection
Water Hose Connection
MO325033086/0 Out of stock
Water Hose Connection
£1.66 £1.38

  3 Or Ring
Or Ring
MO119035000/0 Out of stock
Or Ring
£4.82 £4.02

  4 Flange Assy
Flange Assy
MO382207205/1 In stock
Flange Assy
£95.48 £79.57

  5 Right Blade Shaft
Right Blade Shaft
MO125020805/0 Out of stock
Right Blade Shaft
£33.48 £27.90

  6 Bearing
Bearing
MO119216047/0 In stock
Bearing
£15.00 £12.50

  7 Dust Cover Disc
Dust Cover Disc
MO325160501/1 Out of stock
Dust Cover Disc
£1.66 £1.38

  8 Seeger
Seeger
MO112609260/0 Out of stock
Seeger
£1.74 £1.45

  9 Flange Assy
Flange Assy
MO382207204/1 In stock
Flange Assy
£95.48 £79.57

  10 Blade Shaft
Blade Shaft
MO125020804/0 In stock
Blade Shaft
£33.48 £27.90

  11 Drive Belt
Drive Belt
MO135061508/0LC In stock
Drive Belt
£62.94 £52.45

  12 Pulley
Pulley
MO125601585/1 Out of stock
Pulley
£41.51 £34.59

  13 Screw
Screw
MO112793102/0 In stock
Screw
£1.48 £1.23

  14 Washer
Washer
MO112540260/0 Out of stock
Washer
£1.48 £1.23

  15 Washer
Washer
MO125670007/0 Out of stock
Washer
£1.87 £1.56

  16 Feather
Feather
MO112139480/0 In stock
Feather
£1.61 £1.34

  17 Screw
Screw
MO112818690/0 Out of stock
Screw
£1.70 £1.42

  18 Nut
Nut
MO112154210/0 In stock
Nut
£1.61 £1.34

  20 Bracket
Bracket
MO325785391/0 Out of stock
Bracket
£20.50 £17.08

  21 Screw
Screw
MO112691400/0 Out of stock
Screw
£1.48 £1.23

  22 Washer
Washer
MO112524010/0 Out of stock
Washer
£1.74 £1.45

  23 Seeger
Seeger
MO112610800/0 Out of stock
Seeger
£1.61 £1.34

  24 Bearing
Bearing
MO119216048/0 In stock
Bearing
£17.41 £14.51

  25 Pulley
Pulley
MO125601595/0 Out of stock
Pulley
£33.48 £27.90

  26 Spacer
Spacer
MO125160052/0 Out of stock
Spacer
£2.81 £2.34

  27 Lever
Lever
MO325318289/0 Out of stock
Lever
£6.36 £5.30

  28 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  29 Nut
Nut
MO112155020/0 Out of stock
Nut
£1.61 £1.34

  30 Washer
Washer
MO125670022/0 Out of stock
Washer
£1.87 £1.56

  31 Bushing
Bushing
MO125040635/0 Out of stock
Bushing
£4.15 £3.46

  32 Wire
Wire
MO382004618/0 In stock
Wire
£21.38 £17.82

  33 Spacer
Spacer
MO125160049/0 Out of stock
Spacer
£6.96 £5.80

  34 Washer
Washer
MO112523080/0 In stock
Washer
£1.48 £1.23

  35 Nut
Nut
MO112156602/0 In stock
Nut
£1.34 £1.12

  36 Electromagnetic Clutch Ogura
Electromagnetic Clutch Ogura
MO118399075/1 Out of stock
Electromagnetic Clutch Ogura
£281.20 £234.33

  37 Washer
Washer
MO112543000/0 Out of stock
Washer
£1.48 £1.23

  38 Screw
Screw
MO112737320/0 Out of stock
Screw
£4.15 £3.46

  39 Spring
Spring
MO125430277/1 Out of stock
Spring
£2.00 £1.67

  41 Screw
Screw
MO112691115/0 Out of stock
Screw
£1.48 £1.23

  42 Washer
Washer
MO112523060/0 In stock
Washer
£1.48 £1.23

  43 Pulley Bearing hole ø15 (Plastic) From S.N 21KA3RON000771
Pulley Bearing hole ø15 (Plastic) From S.N 21KA3RON000771
MO125601613/0 Out of stock
Pulley Bearing hole ø15 (Plastic) From S.N 21KA3RON000771
£12.18 £10.15

  43 Pulley Bearing hole ø15 (Steel) To S.N 21KA3RON000770
Pulley Bearing hole ø15 (Steel) To S.N 21KA3RON000770
MO325601599/0 In stock
Pulley Bearing hole ø15 (Steel) To S.N 21KA3RON000770
£18.07 £15.06

  44 Spacer From S.N 19FA3RON000413
Spacer From S.N 19FA3RON000413
MO125160110/0 Out of stock
Spacer From S.N 19FA3RON000413
£3.22 £2.68

  45 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  46 Screw
Screw
MO112692100/0 Out of stock
Screw
£2.68 £2.23

  47 Washer
Washer
MO112521350/0 In stock
Washer
£1.48 £1.23

  48 Spacer
Spacer
MO125160072/0 Out of stock
Spacer
£3.74 £3.12

  49 Anti Scalp Wheel Ø90 ø90 To S.N 22FA3RON001029
Anti Scalp Wheel Ø90 ø90 To S.N 22FA3RON001029
MO182700005/0 Out of stock
Anti Scalp Wheel Ø90 ø90 To S.N 22FA3RON001029
£17.18 £14.32

  49 Anti Scalp Wheel Ø95 ø95 From S.N 22FA3RON001030
Anti Scalp Wheel Ø95 ø95 From S.N 22FA3RON001030
MO182700006/0 Out of stock
Anti Scalp Wheel Ø95 ø95 From S.N 22FA3RON001030
£17.18 £14.32

  51 Equalizer Rod
Equalizer Rod
MO382000565/1 Out of stock
Equalizer Rod
£19.36 £16.13

  52 Washer
Washer
MO325670008/1 Out of stock
Washer
£1.66 £1.38

  60 Screw
Screw
MO112735694/0 In stock
Screw
£1.87 £1.56

  61 Screw
Screw
MO112735695/1 In stock
Screw
£3.61 £3.01

  63 Elastic Disc
Elastic Disc
MO122160400/0 In stock
Elastic Disc
£1.74 £1.45

  64 Right Blade. Winged
Right Blade. Winged
MO182004358/0 In stock
Right Blade. Winged
£21.00 £17.50

  65 Left Blade. Winged
Left Blade. Winged
MO182004359/0 In stock
Left Blade. Winged
£21.00 £17.50

  66 Blade Holder
Blade Holder
MO125463200/0 In stock
Blade Holder
£9.04 £7.53

  67 Key
Key
MO112139100/0 In stock
Key
£1.48 £1.23

  71 Right Mulching Blade
Right Mulching Blade
MO182004360/0 In stock
Right Mulching Blade
£19.55 £16.29

  72 Left Mulching Blade
Left Mulching Blade
MO182004361/0 In stock
Left Mulching Blade
£19.36 £16.13

  75 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.48 £1.23

  76 Deflector
Deflector
MO325140108/0 In stock
Deflector
£4.72 £3.93

  77 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  78 Support
Support
MO325785418/0 In stock
Support
£7.90 £6.58

  79 Washer
Washer
MO112523040/0 In stock
Washer
£1.48 £1.23

  80 Screw
Screw
MO112790781/0 Out of stock
Screw
£1.48 £1.23

  81 Mulching Blades Stiga Packed into 182004360.0 + 182004361.0
Mulching Blades Stiga Packed into 182004360.0 + 182004361.0
MO1134-9221-01 Out of stock
Mulching Blades Stiga Packed into 182004360.0 + 182004361.0
£44.18 £36.82

  82 Winged Blade 84cm.30
Winged Blade 84cm.30
MO1134-9220-01 Out of stock
Winged Blade 84cm.30" [Stiga Pack]
£52.22 £43.52
