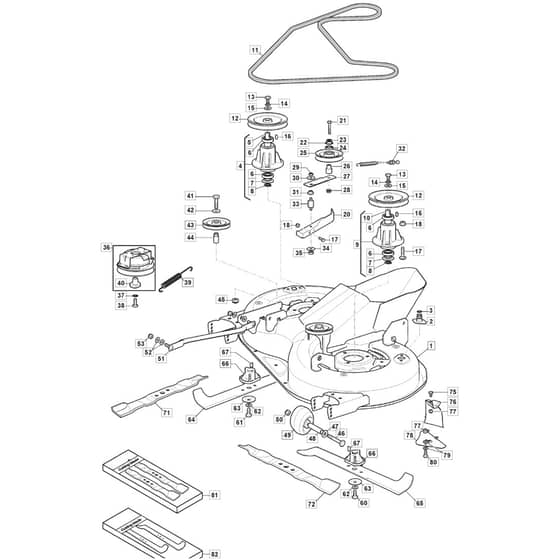

1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower 84cm Deck Diagram

Name: 1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower 84cm Deck Diagram
SKU: 1530h_2t2120483_m20_84cm_deck-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower 84cm Deck Diagram

Description

Mountfield 1530H Parts Diagram

Product Name - 1530 H

Model Year - 2020-2021

Model Type - MPNS 84 Hydro

Art.N - 2T2120483/M20

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564113/2 Out of stock	Cutting Plate Black	£386.02 £321.68
2	MO325033086/0 Out of stock	Water Hose Connection	£1.49 £1.24
3	MO119035000/0 Out of stock	Or Ring	£4.87 £4.06
4	MO382207205/1 Out of stock	Flange Assy	£98.20 £81.83
5	MO125020805/0 Out of stock	Right Blade Shaft	£33.86 £28.22
6	MO119216047/0 In stock	Bearing	£15.18 £12.65
7	MO325160501/1 Out of stock	Dust Cover Disc	£1.49 £1.24
8	MO112609260/0 Out of stock	Seeger	£1.75 £1.46
9	MO382207204/1 In stock	Flange Assy	£98.20 £81.83
10	MO125020804/0 In stock	Blade Shaft	£33.86 £28.22
11	MO135061508/0LC In stock	Drive Belt	£61.50 £51.25
12	MO125601585/1 Out of stock	Pulley	£41.99 £34.99
13	MO112793102/0 In stock	Screw	£1.49 £1.24
14	MO112540260/0 Out of stock	Washer	£1.49 £1.24
15	MO125670007/0 Out of stock	Washer	£1.90 £1.58
16	MO112139480/0 In stock	Feather	£1.63 £1.36
17	MO112818690/0 Out of stock	Screw	£1.61 £1.34
18	MO112154210/0 In stock	Nut	£1.63 £1.36
20	MO325785391/0 Out of stock	Bracket	£21.06 £17.55
21	MO112691400/0 Out of stock	Screw	£1.49 £1.24
22	MO112524010/0 Out of stock	Washer	£1.75 £1.46
23	MO112610800/0 Out of stock	Seeger	£1.63 £1.36
24	MO119216048/0 In stock	Bearing	£17.62 £14.68
25	MO125601595/0 Out of stock	Pulley	£33.86 £28.22
26	MO125160052/0 Out of stock	Spacer	£2.84 £2.37
27	MO325318289/0 Out of stock	Lever	£6.50 £5.42
28	MO112293201/0 In stock	Nut	£1.63 £1.36
29	MO112155020/0 Out of stock	Nut	£1.63 £1.36
30	MO125670022/0 Out of stock	Washer	£1.90 £1.58
31	MO125040635/0 Out of stock	Bushing	£4.20 £3.50
32	MO382004618/0 In stock	Wire	£21.95 £18.29
33	MO125160049/0 Out of stock	Spacer	£7.03 £5.86
34	MO112523080/0 In stock	Washer	£1.49 £1.24
35	MO112156602/0 In stock	Nut	£1.36 £1.13
36	MO118399075/1 Out of stock	Electromagnetic Clutch Ogura	£284.44 £237.03
37	MO112543000/0 Out of stock	Washer	£1.49 £1.24
38	MO112737320/0 Out of stock	Screw	£4.20 £3.50
39	MO125430277/1 Out of stock	Spring	£2.04 £1.70
41	MO112691115/0 Out of stock	Screw	£1.49 £1.24
42	MO112523060/0 In stock	Washer	£1.49 £1.24
43	MO125601613/0 In stock	Pulley Bearing hole ø15 (Plastic) From S.N 21KA3RON000771	£12.34 £10.28
43	MO325601599/0 In stock	Pulley Bearing hole ø15 (Steel) To S.N 21KA3RON000770	£18.42 £15.35
44	MO125160110/0 Out of stock	Spacer From S.N 19FA3RON000413	£3.25 £2.71
45	MO112155000/0 In stock	Nut	£1.49 £1.24
46	MO112692100/0 Out of stock	Screw	£2.70 £2.25
47	MO112521350/0 In stock	Washer	£1.49 £1.24
48	MO125160072/0 Out of stock	Spacer	£3.79 £3.16
49	MO182700006/0 Out of stock	Anti Scalp Wheel Ø95 ø95 From S.N 22FA3RON001030	£17.00 £14.17
49	MO182700005/0 Out of stock	Anti Scalp Wheel Ø90 ø90 To S.N 22FA3RON001029	£17.00 £14.17
51	MO382000565/1 Out of stock	Equalizer Rod	£19.84 £16.53
52	MO325670008/1 Out of stock	Washer	£1.49 £1.24
60	MO112735694/0 In stock	Screw	£1.90 £1.58
61	MO112735695/1 In stock	Screw	£3.65 £3.04
63	MO122160400/0 In stock	Elastic Disc	£1.75 £1.46
64	MO182004358/0 In stock	Right Blade. Winged	£20.81 £17.34
65	MO182004359/0 In stock	Left Blade. Winged	£20.81 £17.34
66	MO125463200/0 In stock	Blade Holder	£8.83 £7.36
67	MO112139100/0 In stock	Key	£1.49 £1.24
71	MO182004360/0 In stock	Right Mulching Blade	£19.10 £15.92
72	MO182004361/0 In stock	Left Mulching Blade	£19.10 £15.92
75	MO112791213/1 Out of stock	Screw	£1.49 £1.24
76	MO325140108/0 In stock	Deflector	£4.74 £3.95
77	MO112154510/0 In stock	Nut	£1.49 £1.24
78	MO325785418/0 In stock	Support	£7.92 £6.60
79	MO112523040/0 Out of stock	Washer	£1.49 £1.24
80	MO112790781/0 Out of stock	Screw	£1.49 £1.24
81	MO1134-9221-01 Out of stock	Mulching Blades Stiga Packed into 182004360.0 + 182004361.0	£43.19 £35.99
82	MO1134-9220-01 In stock	Winged Blade 84cm.30" [Stiga Pack]	£51.04 £42.53
