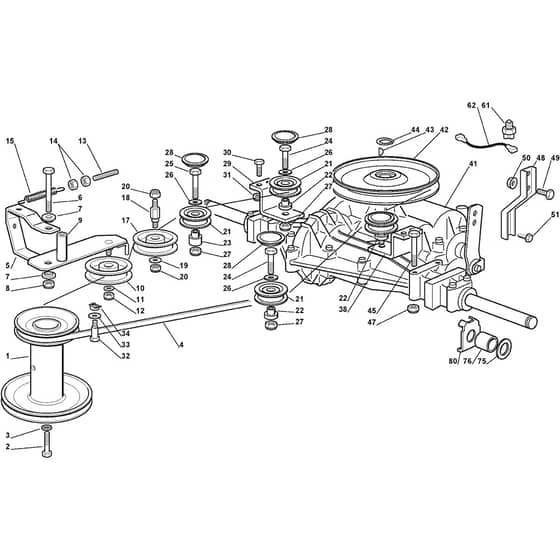

1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Transmission Diagram

Name: 1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Transmission Diagram
SKU: 1440m_299911333_mou_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004-2005

Model Type - TCP 102

Art.N - 299911333/MOU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601569/0 Out of stock	Pulley	£112.42 £93.68
2	MO112737310/0 Out of stock	Screw	£2.84 £2.37
3	MO112543000/0 Out of stock	Washer	£1.49 £1.24
4	MO135062011/0 Out of stock	Belt	£63.73 £53.11
5	MO382318165/2 Out of stock	Lever	£26.69 £22.24
6	MO112692000/0 Out of stock	Screw	£1.90 £1.58
7	MO125038002/1 Out of stock	Bushing	£1.49 £1.24
9	MO125160027/0 Out of stock	Spacer	£2.44 £2.03
10	MO125601554/0 In stock	Pulley	£23.40 £19.50
13	MO125840010/1 Out of stock	Tie Rod	£1.90 £1.58
14	MO112293200/0 Out of stock	Nut	£1.63 £1.36
15	MO125430219/1 Out of stock	Spring	£3.53 £2.94
17	MO125601555/0 In stock	Pulley Bearing hole ø16	£26.76 £22.30
21	MO325601570/1 Out of stock	Pulley From 01-9-2009	£23.44 £19.53
22	MO125160018/1 Out of stock	Spacer From 01-9-2008	£6.50 £5.42
23	MO125160024/2 Out of stock	Spacer From 01-9-2008	£7.98 £6.65
24	MO112691100/0 Out of stock	Screw	£1.63 £1.36
25	MO112691400/0 Out of stock	Screw	£1.49 £1.24
26	MO112523060/0 In stock	Washer	£1.49 £1.24
27	MO112155000/0 Out of stock	Nut	£1.63 £1.36
28	MO125109521/1 Out of stock	Cover	£1.49 £1.24
30	MO112791213/1 Out of stock	Screw From 01-9-2003	£1.63 £1.36
31	MO112154510/0 In stock	Nut	£1.63 £1.36
32	MO125580018/0 Out of stock	Stake	£4.87 £4.06
34	MO112360425/0 Out of stock	Nut	£1.75 £1.46
38	MO325785125/1 Out of stock	Clamp From 01-9-2007	£5.69 £4.74
41	MO118400940/1 Out of stock	Mechanical Transaxle - Peerless (Mst-205-554B)	£1,145.77 £954.81
42	MO182601503/0 Out of stock	Pulley	£97.51 £81.26
43	MO112139430/0 In stock	Key	£1.90 £1.58
44	MO112608950/0 Out of stock	Seeger	£1.63 £1.36
45	MO112691800/0 Out of stock	Screw	£1.49 £1.24
47	MO112154210/0 In stock	Nut	£1.80 £1.50
48	MO325774285/1 Out of stock	Clamp	£5.69 £4.74
49	MO112792611/0 Out of stock	Screw	£1.49 £1.24
50	MO112293201/0 In stock	Nut	£1.63 £1.36
51	MO112735150/0 Out of stock	Screw	£1.63 £1.36
61	MO119410610/0 Out of stock	Microswitch	£51.47 £42.89
62	MO125065026/0 Out of stock	Cable	£8.27 £6.89
75	MO112521410/0 Out of stock	Washer	£1.75 £1.46
76	MO125160028/0 Out of stock	Spacer	£4.87 £4.06
