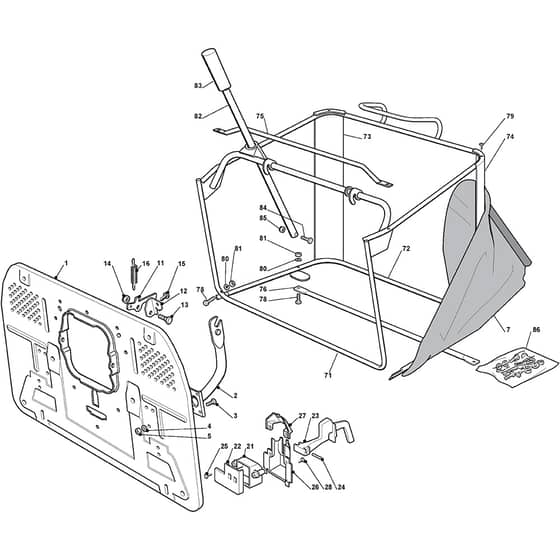

1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1440m_299911333_mou_grasscatcher-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004-2005

Model Type - TCP 102

Art.N - 299911333/MOU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO182774225/1 Out of stock	Clamp	£32.51 £27.09
3	MO112793102/0 In stock	Screw	£1.49 £1.24
4	MO112523060/0 In stock	Washer	£1.49 £1.24
5	MO112293201/0 In stock	Nut	£1.63 £1.36
7	MO182106000/2 Out of stock	Grasscatcher	£117.83 £98.19
11	MO325774417/0 Out of stock	Clamp	£6.77 £5.64
13	MO125510080/2 Out of stock	Pin	£1.36 £1.13
14	MO112292102/0 In stock	Nut	£1.63 £1.36
15	MO112735122/1 Out of stock	Screw	£1.49 £1.24
16	MO127430579/0 Out of stock	Clutch Spring	£12.37 £10.31
21	MO125600041/0 Out of stock	Grassc.Full Micro Protection Tcj-F	£3.77 £3.14
22	MO125600042/0 Out of stock	Grasscatcher Micro Prot Cover	£7.33 £6.11
23	MO125318124/0 Out of stock	Full Grassc. Microswtich Cover	£1.90 £1.58
24	MO112400030/0 Out of stock	Pin	£1.75 £1.46
25	MO112728440/0 Out of stock	Screw	£1.36 £1.13
26	MO125600047/0 Out of stock	Grassc.Full Micro Protection Tc 2000	£1.63 £1.36
27	MO125600048/0 Out of stock	Empty Micro Grassc.Protection Cover	£1.49 £1.24
28	MO112728450/0 In stock	Screw	£1.49 £1.24
71	MO382800051/1 Out of stock	Upper Frame	£189.62 £158.02
72	MO382800002/2 Out of stock	Lower Grasscatcher Frame	£32.51 £27.09
73	MO325032001/1 Out of stock	Right Angular Support	£14.76 £12.30
74	MO325032002/1 Out of stock	Left Angular Support	£14.76 £12.30
75	MO382394001/2 Out of stock	Front Handle	£12.25 £10.21
76	MO382650038/1 Out of stock	Lower Stiffening	£11.78 £9.82
79	MO112729601/1 Out of stock	Screw	£1.48 £1.23
80	MO112582101/0 Out of stock	Grower	£1.66 £1.38
81	MO112292100/0 Out of stock	Nut	£1.36 £1.13
82	MO125869029/1 Out of stock	Grasscatcher Lifting Tube	£28.44 £23.70
83	MO125394508/0 Out of stock	Knob	£4.87 £4.06
84	MO112792099/0 In stock	Screw	£1.28 £1.07
85	MO112154510/0 In stock	Nut	£1.49 £1.24
86	MO382180027/1 Out of stock	Grasscatcher Screw Outfit	£14.23 £11.86
