1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Controls Diagram

Description

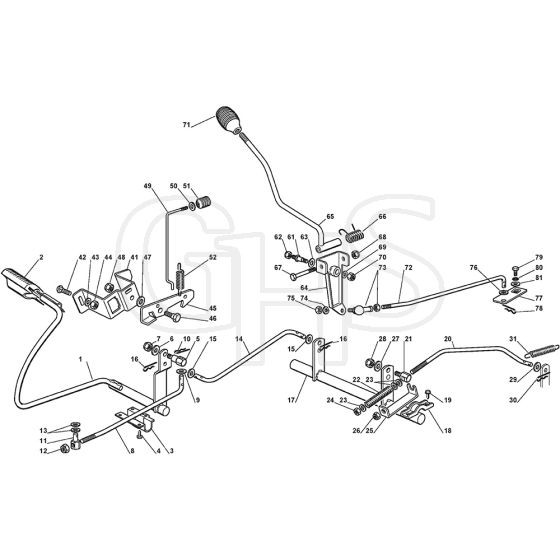

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004-2005

Model Type - TCP 102

Art.N - 299911333/MOU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125110269/0 Out of stock	Clamp Cover	£3.53 £2.94
3	MO325547081/2 Out of stock	Plate From 01-9-2003	£4.87 £4.06
4	MO112731601/0 Out of stock	Screw	£1.90 £1.58
5	MO125510063/0 Out of stock	Pin	£4.60 £3.83
11	MO125510064/0 Out of stock	Pin	£6.62 £5.52
14	MO125033038/0 Out of stock	Rod From 01-9-2002	£7.13 £5.94
15	MO112521350/0 In stock	Washer	£1.49 £1.24
18	MO327546015/2 Out of stock	Plate	£1.49 £1.24
19	MO112731350/0 Out of stock	Screw	£1.49 £1.24
20	MO125033040/0 Out of stock	Rod	£24.11 £20.09
21	MO125510062/0 Out of stock	Pin	£4.74 £3.95
22	MO125430236/1 Out of stock	Spring	£1.49 £1.24
24	MO112295200/0 Out of stock	Nut	£1.36 £1.13
25	MO325774275/1 Out of stock	Clamp	£3.38 £2.82
26	MO112156602/0 In stock	Nut	£1.36 £1.13
29	MO112521360/0 Out of stock	Washer	£1.49 £1.24
31	MO122450500/0 Out of stock	Spring	£2.98 £2.48
41	MO325785143/1 Out of stock	Support	£4.33 £3.61
42	MO112815210/0 Out of stock	Screw	£1.49 £1.24
43	MO112523040/0 Out of stock	Washer	£1.49 £1.24
44	MO112154510/0 In stock	Nut	£1.49 £1.24
45	MO325253001/0 Out of stock	Hook	£3.92 £3.27
46	MO122524970/2 Out of stock	Fulcrum Pin	£1.82 £1.52
47	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
49	MO125033034/0 Out of stock	Rod	£5.02 £4.18
50	MO112523020/0 Out of stock	Washer	£1.49 £1.24
51	MO125394509/1 In stock	Knob	£2.44 £2.03
52	MO125430213/0 Out of stock	Spring	£1.63 £1.36
61	MO125510035/0 Out of stock	Pin	£3.53 £2.94
63	MO322672151/0 Out of stock	Antifriction Washer	£1.75 £1.46
64	MO382774206/0 Out of stock	Clamp Lever	£22.22 £18.52
65	MO182318179/0 Out of stock	Gearshift	£38.26 £31.88
66	MO125430226/0 Out of stock	Spring	£2.17 £1.81
67	MO112692050/0 In stock	Screw	£1.75 £1.46
68	MO112155000/0 In stock	Nut	£1.49 £1.24
69	MO112523060/0 In stock	Washer	£1.49 £1.24
70	MO112155010/0 Out of stock	Nut	£2.04 £1.70
71	MO125394510/0 Out of stock	Knob	£4.07 £3.39
72	MO125033037/0 Out of stock	Rod	£16.39 £13.66
73	MO122746601/0 Out of stock	Joint	£18.42 £15.35
74	MO112583500/0 Out of stock	Grower	£1.49 £1.24
75	MO112293200/0 In stock	Nut	£1.49 £1.24
76	MO112521340/0 Out of stock	Washer	£1.36 £1.13
77	MO325318169/0 Out of stock	Lever	£2.70 £2.25
78	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
79	MO112735520/0 Out of stock	Screw	£1.49 £1.24
80	MO112540040/0 Out of stock	Washer	£1.36 £1.13
81	MO322680009/0 Out of stock	Flat Washer 6.5 X 32 X 4	£1.75 £1.46
