1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Body Diagram

Name: 1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Body Diagram
SKU: 1440m_299911333_mou_body-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2004-2005 - 299911333/MOU - Mountfield Ride On Mower Body Diagram

Description

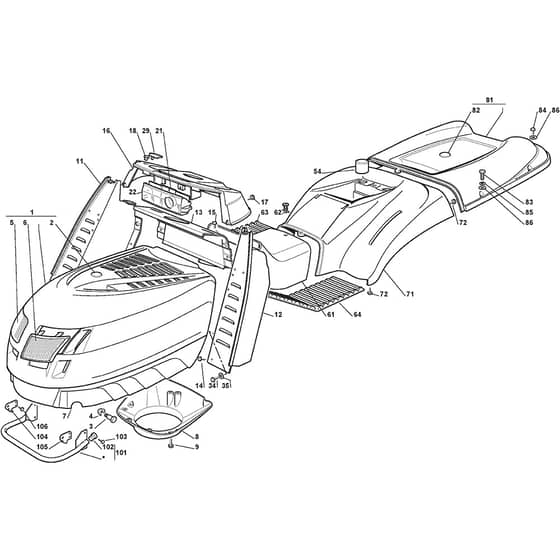

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004-2005

Model Type - TCP 102

Art.N - 299911333/MOU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076841/3 Out of stock	Engine Hood. Red From 01-9-2004	£222.79 £185.66
2	MO325547025/1 Out of stock	Injection Plaque From 01-9-2003	£1.75 £1.46
3	MO125510023/1 Out of stock	Pin	£4.91 £4.09
4	MO112436050/0 In stock	Plate	£1.75 £1.46
7	MO125076808/0 Out of stock	Lower Engine Hood	£75.85 £63.21
8	MO325108028/0 Out of stock	Conveyor	£7.98 £6.65
9	MO112728686/0 Out of stock	Screw	£1.63 £1.36
11	MO382785022/8 Out of stock	Right Dashboard Support To 31-8-2011	£28.44 £23.70
11	MO382785022/10 Out of stock	Right Dashboard Support From 01-9-2011	£40.63 £33.86
12	MO382785021/9 Out of stock	Left Dashboard Support From 01-9-2011	£38.20 £31.83
12	MO382785021/7 Out of stock	Left Dashboard Support To 31-8-2011	£28.44 £23.70
13	MO382785137/1 Out of stock	Central Dashboard Support From 01-9-2003	£12.92 £10.77
15	MO112735110/0 Out of stock	Screw	£1.49 £1.24
16	MO125120153/1 Out of stock	Black Dashboard To 31-8-2013	£36.56 £30.47
17	MO112728440/0 Out of stock	Screw	£1.36 £1.13
18	MO125120200/0 Out of stock	Cap	£1.36 £1.13
21	MO125600009/0 Out of stock	Rear Card Protection	£15.16 £12.63
22	MO125600051/0 Out of stock	Protection	£9.76 £8.13
29	MO125260000/0 Out of stock	Grommet	£2.84 £2.37
34	MO112731350/0 Out of stock	Screw	£1.49 £1.24
35	MO112521330/0 Out of stock	Washer	£1.49 £1.24
54	MO325122000/2 Out of stock	Cap	£1.49 £1.24
61	MO325110136/1 Out of stock	Red Central Cover (Mecc) From 01-9-2003 To 31-8-2014	£29.53 £24.61
62	MO125580020/2 In stock	Stake From 01-9-2010	£7.56 £6.30
63	MO125110270/0 Out of stock	Right Footboard Cover	£52.56 £43.80
64	MO382110314/0 Out of stock	Left Footboard Cover	£52.55 £43.79
71	MO325109702/1 Out of stock	Red Wheels Cover From 01-9-2003 To 31-8-2014	£134.09 £111.74
72	MO112735402/0 In stock	Screw	£1.49 £1.24
81	MO382110200/1 Out of stock	Red Grass-Catcher Cover From 01-9-2003	£155.76 £129.80
83	MO112674701/0 Out of stock	Screw	£1.63 £1.36
84	MO112729601/1 Out of stock	Screw From 01-9-2003	£1.48 £1.23
85	MO112582101/0 Out of stock	Grower	£1.66 £1.38
86	MO112521331/0 Out of stock	Washer	£1.49 £1.24
101	MO382869006/1 Out of stock	Muffler Tube Guard	£31.08 £25.90
102	MO118566110/0 Out of stock	Push Rod	£1.49 £1.24
103	MO112735120/0 Out of stock	Screw	£1.49 £1.24
104	MO325547089/1 Out of stock	Right Plate From 01-9-2010	£3.92 £3.27
105	MO325547091/1 Out of stock	Left Plate From 01-9-2010	£3.92 £3.27
106	MO112731580/0 Out of stock	Self-Tap Screw Te 4.8 X 9.5 C15 Bz	£1.49 £1.24
