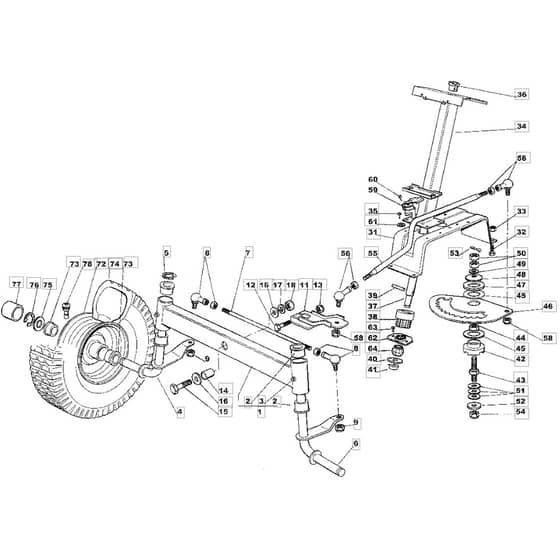

1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Steering Diagram

Name: 1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Steering Diagram
SKU: 1436s_13_2670_11_steering-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1436S Parts Diagram

Product Name - 1436S

Model Year - 2006

Model Type -

Art.N - 13-2670-11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182034008/0 Out of stock	Front Wheel Axle	£109.49 £91.24
2	MO125034002/1 In stock	Bushing	£3.61 £3.01
3	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
4	MO382230355/1 Out of stock	Stub Axle-R	£31.82 £26.52
5	MO112001000/0 Out of stock	Circlip	£1.74 £1.45
6	MO382230357/1 Out of stock	Stub Axle-L	£35.65 £29.71
7	MO125840006/0 Out of stock	Tie Rod	£15.80 £13.17
11	MO325318142/0 Out of stock	Steering Arm	£14.14 £11.78
12	MO112692390/0 Out of stock	Screw	£1.48 £1.23
13	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
14	MO125160016/1 Out of stock	Spacer	£5.89 £4.91
15	MO112692695/0 Out of stock	Screw	£1.48 £1.23
16	MO112523100/0 Out of stock	Washer	£1.87 £1.56
17	MO112587100/0 Out of stock	Washer	£1.48 £1.23
18	MO112295300/0 Out of stock	Nut	£1.48 £1.23
32	MO9997-0816-16 Out of stock	Screw	£1.66 £1.38
33	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
34	MO382785135/0 Out of stock	Support	£73.84 £61.53
36	MO325038004/0 Out of stock	Bushing	£1.91 £1.59
37	MO125520004/1 Out of stock	Steering Column	£24.91 £20.76
38	MO125570000/2 Out of stock	Steering Pinion	£12.18 £10.15
39	MO9595-0262-00 Out of stock	Locating Pin	£1.66 £1.38
40	MO112521370/0 Out of stock	Washer	£1.48 £1.23
41	MO112436030/0 Out of stock	Lock Plate	£1.74 £1.45
42	MO125040617/0 Out of stock	Bushing	£10.18 £8.48
43	MO125510065/3 Out of stock	Stud Bolt	£9.91 £8.26
44	MO112295200/0 Out of stock	Nut	£1.34 £1.12
45	MO325670012/0 Out of stock	Washer	£2.42 £2.02
46	MO325735507/0 Out of stock	Steering Sector	£44.56 £37.13
47	MO325670014/1 Out of stock	Washer	£4.33 £3.61
48	MO122160400/0 In stock	Elastic Washer	£1.74 £1.45
49	MO112521360/0 In stock	Washer	£1.48 £1.23
51	MO322672150/0 Out of stock	Washer	£1.52 £1.27
52	MO112523080/0 In stock	Washer	£1.48 £1.23
55	MO125033025/0 Out of stock	Steering Rod	£53.57 £44.64
56	MO122746609/0 Out of stock	Ball Joint	£20.76 £17.30
62	MO325785213/1 Out of stock	Support	£1.91 £1.59
63	MO112729601/1 Out of stock	Screw	£1.48 £1.23
64	MO325743000/0 In stock	Joint	£2.54 £2.12
72	MO182000590/1 Out of stock	Rim-Front	£64.93 £54.11
73	MO125122200/2 In stock	Bearing	£11.24 £9.37
74	MO125590018/0 Out of stock	Tire (Turf Saver)	£46.87 £39.06
75	MO125670005/2 Out of stock	Washer	£3.89 £3.24
77	MO122110230/0 In stock	Hub Cap	£1.48 £1.23
78	MO9545-0500-00 Out of stock	Valve Assembly	£5.09 £4.24
