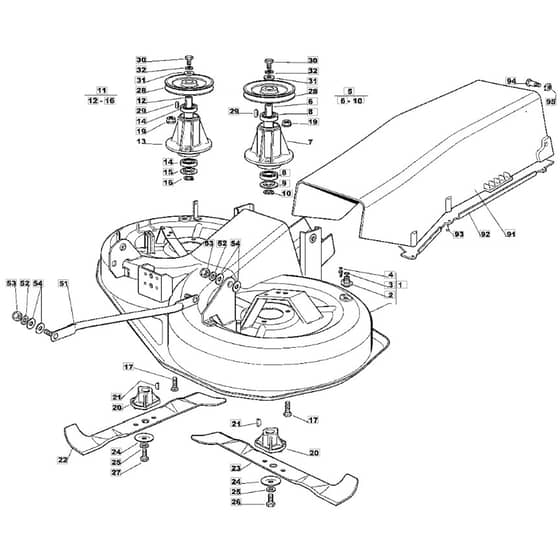

1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower 92cm Deck Diagram

1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower 92cm Deck Diagram
1436S - 2006 - 13-2670-11 - Mountfield Ride On Mower 92cm Deck Diagram

Description

Mountfield 1436S Parts Diagram

Product Name - 1436S

Model Year - 2006

Model Type -

Art.N - 13-2670-11

Ref. Img. Part No. Details
  1 Mower Casing
Mower Casing
MO382564048/1 Out of stock
Mower Casing
£471.04 £392.53

  2 Water Hose Connection
Water Hose Connection
MO125033060/0 In stock
Water Hose Connection
£1.48 £1.23

  3 O-Ring
O-Ring
MO119035000/0 Out of stock
O-Ring
£4.82 £4.02

  4 Rivet
Rivet
MO112500030/0 Out of stock
Rivet
£1.48 £1.23

  5 Bearing Box Assy-L Pos 6 - 10 incl.
Bearing Box Assy-L Pos 6 - 10 incl.
MO382207202/1LC Out of stock
Bearing Box Assy-L Pos 6 - 10 incl.
£101.84 £84.87

  6 Blade Shaft
Blade Shaft
MO125020834/0 Out of stock
Blade Shaft
£34.62 £28.85

  10 Circlip
Circlip
MO112609260/0 Out of stock
Circlip
£1.74 £1.45

  11 Bearing Box Assy-R Pos 12 - 16 incl.
Bearing Box Assy-R Pos 12 - 16 incl.
MO382207203/1LC Out of stock
Bearing Box Assy-R Pos 12 - 16 incl.
£120.95 £100.79

  12 Blade Shaft
Blade Shaft
MO125020803/0 Out of stock
Blade Shaft
£34.62 £28.85

  14 Ball Bearing
Ball Bearing
MO119216047/0 In stock
Ball Bearing
£15.00 £12.50

  15 Dust Cover
Dust Cover
MO325160501/1 Out of stock
Dust Cover
£1.66 £1.38

  17 Screw
Screw
MO112818700/0 In stock
Screw
£1.48 £1.23

  19 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  20 Blade Hub
Blade Hub
MO125463200/0 In stock
Blade Hub
£9.04 £7.53

  21 Key
Key
MO112139100/0 In stock
Key
£1.48 £1.23

  22 Blade-Rh
Blade-Rh
MO182004354/0 In stock
Blade-Rh
£24.19 £20.16

  23 Blade-Lh
Blade-Lh
MO182004353/0 In stock
Blade-Lh
£24.19 £20.16

  24 Elastic Washer
Elastic Washer
MO122160400/0 In stock
Elastic Washer
£1.74 £1.45

  25 Washer
Washer
MO112523080/0 In stock
Washer
£1.48 £1.23

  26 Screw
Screw
MO112735694/0 In stock
Screw
£1.87 £1.56

  27 Blade Bolt (Lh-Thread)
Blade Bolt (Lh-Thread)
MO112735695/1 In stock
Blade Bolt (Lh-Thread)
£3.61 £3.01

  28 Belt Pulley
Belt Pulley
MO125601573/0 Out of stock
Belt Pulley
£72.90 £60.75

  29 Key
Key
MO112139480/0 In stock
Key
£1.61 £1.34

  30 Screw
Screw
MO9997-0820-16 Out of stock
Screw
£1.40 £1.17

  31 Washer
Washer
MO125670007/0 Out of stock
Washer
£1.87 £1.56

  32 Washer
Washer
MO112583500/0 Out of stock
Washer
£1.48 £1.23

  51 Equalizer Rod
Equalizer Rod
MO382000474/1 Out of stock
Equalizer Rod
£31.82 £26.52

  52 Washer
Washer
MO112521360/0 In stock
Washer
£1.48 £1.23

  53 Lock Nut
Lock Nut
MO112156602/0 In stock
Lock Nut
£1.34 £1.12

  54 Washer
Washer
MO325670008/1 Out of stock
Washer
£1.66 £1.38

  91 Discharge Chute
Discharge Chute
MO125108004/0 Out of stock
Discharge Chute
£66.95 £55.79

  92 Deflector
Deflector
MO325190091/0 Out of stock
Deflector
£23.04 £19.20

  93 Screw
Screw
MO112735402/0 In stock
Screw
£1.48 £1.23

  94 Pin Bolt
Pin Bolt
MO125510061/0 Out of stock
Pin Bolt
£8.64 £7.20

  95 Square Nut
Square Nut
MO112360430/0 Out of stock
Square Nut
£2.68 £2.23


Description

Mountfield 1436S Parts Diagram

Product Name - 1436S

Model Year - 2006

Model Type -

Art.N - 13-2670-11
