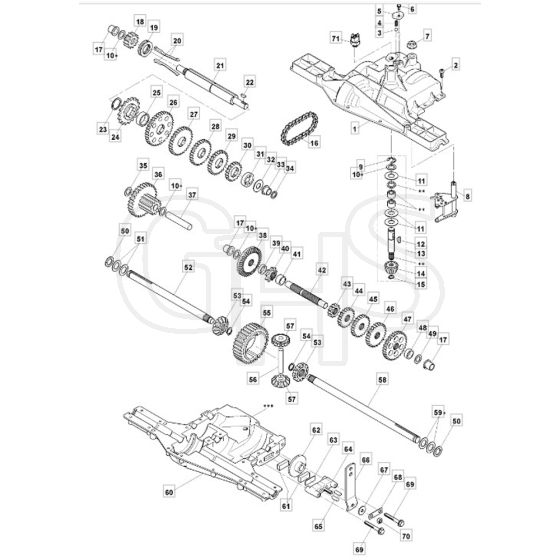

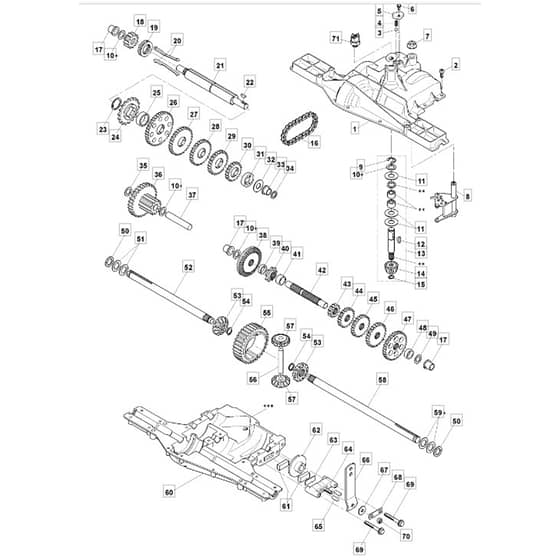

1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Transmission Diagram

1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Transmission Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Transmission Diagram

1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2011-2013

Model Type - NJS 92

Art.N - 2T0320483/M10

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	11		MOF000-3876-00 Out of stock	Washer		£10.16 £8.47
	13		MOF000-6595-01 Out of stock	Assy		£162.53 £135.44
	16		MOF000-3625-00 Out of stock	Chain. 24 Pitches		£107.94 £89.95
	54		MOF000-5270-00 Out of stock	Ring. Retaining		£1.90 £1.58
	61		MO118870066/0 Out of stock	Puck. Friction		£8.64 £7.20
	67		MOF000-3760-00 Out of stock	Washer		£3.95 £3.29
	69		MOF000-5562-00 Out of stock	Screw		£5.74 £4.78
	71		MO119410610/0 Out of stock	Neutral Switch [Mechanical]		£51.47 £42.89

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2011-2013

Model Type - NJS 92

Art.N - 2T0320483/M10
