1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Engine TRE0701 Diagram

Name: 1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Engine TRE0701 Diagram
SKU: 1436m_2t0320483_m10_engine_tre0701-group
Price: 1.70 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2011-2013 - 2T0320483/M10 - Mountfield Ride On Mower Engine TRE0701 Diagram

Description

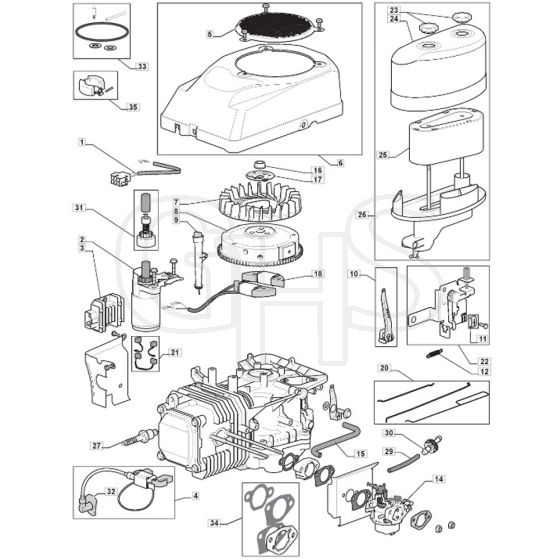

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2011-2013

Model Type - NJS 92

Art.N - 2T0320483/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550207/0	Output Wire. Rectifier	Out of stock	£6.60 £5.50
2	MO118550214/0	Start Motor Assy	Out of stock	£132.48 £110.40
3	MO118550208/1	Rectfier	Out of stock	£44.64 £37.20
4	MO118550209/1	Electronic Coil	In stock	£38.52 £32.10
5	MO118550203/0	Fan Cover	Out of stock	£41.99 £34.99
6	MO118550215/0	Cover Assy	Out of stock	£98.87 £82.39
7	MO118550235/0	Flywheel Fan	Out of stock	£24.08 £20.07
8	MO118550234/2	Flywheel Ass.Y	Out of stock	£209.38 £174.48
9	MO118550205/2	Oil Filler Assy	Out of stock	£23.08 £19.23
12	MO118550213/0	Spring	Out of stock	£2.04 £1.70
14	MO118550375/1	Carburetor	In stock	£90.60 £75.50
15	MO118550225/1	Breather Fuel Pipe	Out of stock	£8.53 £7.11
16	MO118550237/0	Nut	Out of stock	£3.25 £2.71
17	MO118550236/0	Starter Cup	Out of stock	£5.89 £4.91
18	MO118550210/1	Coil Assy. Charge	Out of stock	£54.96 £45.80
20	MO118550239/1	Governor Rod Assy	Out of stock	£13.28 £11.07
21	MO118550332/1	Brushhold	Out of stock	£33.86 £28.22
22	MO118550331/1	Remote Control Assy	Out of stock	£40.63 £33.86
23	MO118550201/0	Knob	Out of stock	£7.88 £6.57
24	MO118550200/0	Air Cleaner Cover	Out of stock	£16.12 £13.43
25	MO118550199/0	Air Filter	In stock	£17.64 £14.70
26	MO118551516/0	Air Cleaner Assy	Out of stock	£35.64 £29.70
27	3381	Spark Plug	In stock	£4.44 £3.70
29	MO118550432/0	Fuel Pipe	Out of stock	£2.70 £2.25
30	MO118550427/0	Fuel Filter	In stock	£5.04 £4.20
31	MO118550365/1	Kit Repair	Out of stock	£48.76 £40.63
32	MO118550448/0	Spark Plug Terminal	Out of stock	£15.71 £13.09
33	MO118550442/0	Carburettor Gasket Set	Out of stock	£15.18 £12.65
34	MO118550217/1	Gasket Set	Out of stock	£10.43 £8.69
35	MO118550440/0	Carburettor Float Kit	Out of stock	£10.02 £8.35
