1436M - 2008 - 299954483/UM8 - Mountfield Ride On Mower Controls Diagram

Description

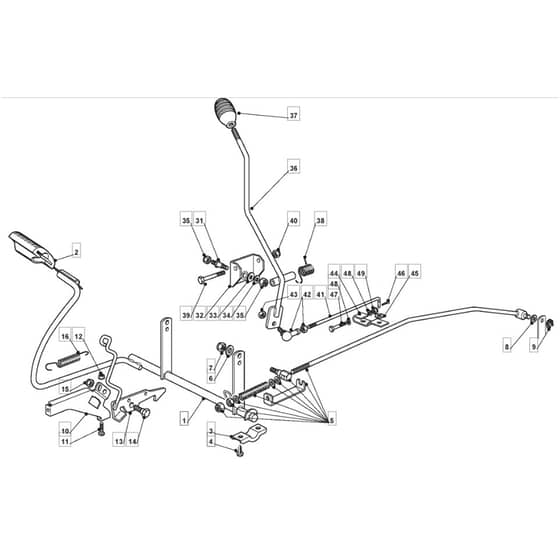

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2008

Model Type - NJS 92

Art.N - 299954483/UM8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125110269/0 Out of stock	Clamp Cover	£3.53 £2.94
3	MO327546015/2 Out of stock	Plate	£1.49 £1.24
4	MO112729601/1 Out of stock	Screw	£1.48 £1.23
5	MO382000541/1 Out of stock	Control Rod	£41.58 £34.65
6	MO112523040/0 In stock	Washer	£1.49 £1.24
8	MO112521350/0 In stock	Washer	£1.49 £1.24
9	MO112436050/0 In stock	Plate	£1.75 £1.46
10	MO325785261/0 Out of stock	Support	£6.37 £5.31
11	MO112815200/0 In stock	Screw	£1.49 £1.24
12	MO112292102/0 In stock	Nut	£1.63 £1.36
13	MO382000531/0 Out of stock	Rod	£335.26 £279.38
14	MO122524970/2 Out of stock	Fulcrum Pin	£1.82 £1.52
15	MO112155000/0 In stock	Nut	£1.49 £1.24
16	MO125430213/0 Out of stock	Spring	£1.63 £1.36
31	MO125510035/0 Out of stock	Pin	£3.53 £2.94
32	MO382774247/0 Out of stock	Clamp	£8.20 £6.83
33	MO322672152/0 Out of stock	Antifriction Washer	£1.75 £1.46
34	MO112523060/0 In stock	Washer	£1.49 £1.24
35	MO112155010/0 Out of stock	Nut	£2.04 £1.70
36	MO382318215/0 Out of stock	Gearshift	£32.21 £26.84
37	MO125394510/0 Out of stock	Knob	£4.07 £3.39
38	MO125430258/0 Out of stock	Spring	£7.66 £6.38
39	MO112692050/0 In stock	Screw	£1.75 £1.46
42	MO122746601/0 Out of stock	Joint	£18.42 £15.35
44	MO325318128/1 Out of stock	Gearshift	£4.48 £3.73
45	MO112521340/0 Out of stock	Washer	£1.36 £1.13
46	MO112141418/0 In stock	Cotter Pin	£1.49 £1.24
47	MO112689500/0 Out of stock	Screw	£1.49 £1.24
48	MO112521330/0 Out of stock	Washer	£1.49 £1.24
49	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.49 £1.24
