1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Transmission Diagram

Name: 1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Transmission Diagram
SKU: 1436m_13_2651_15_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1436M - 2005 - 13-2651-15 - Mountfield Ride On Mower Transmission Diagram

Description

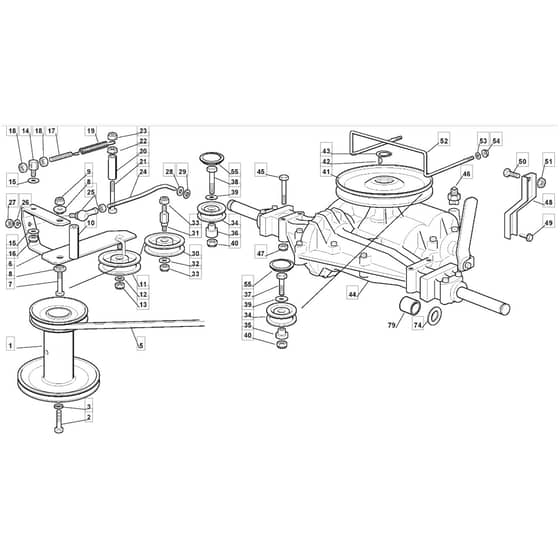

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2005

Model Type - JTP 92

Art.N - 13-2651-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601547/1 Out of stock	Pulley	£211.92 £176.60
2	MO112737310/0 Out of stock	Screw	£2.84 £2.37
3	MO112543000/0 Out of stock	Washer	£1.49 £1.24
5	MO135062000/1 In stock	Belt	£31.40 £26.17
7	MO112692080/0 Out of stock	Screw	£1.49 £1.24
8	MO125038002/1 Out of stock	Bushing	£1.49 £1.24
11	MO125601554/0 In stock	Pulley	£23.40 £19.50
12	MO112523060/0 In stock	Washer	£1.49 £1.24
13	MO112155000/0 Out of stock	Nut	£1.63 £1.36
14	MO125510040/2 Out of stock	Pin	£5.54 £4.62
15	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
17	MO125840005/0 Out of stock	Tie Rod	£2.84 £2.37
18	MO112293200/0 Out of stock	Nut	£1.63 £1.36
19	MO125430219/1 Out of stock	Spring	£3.53 £2.94
21	MO112692050/0 In stock	Screw	£1.75 £1.46
22	MO112293201/0 In stock	Nut	£1.63 £1.36
24	MO125840002/0 Out of stock	Tie Rod	£17.88 £14.90
25	MO122746601/0 Out of stock	Joint	£18.42 £15.35
26	MO112583500/0 Out of stock	Grower	£1.49 £1.24
28	MO112521350/0 Out of stock	Washer	£1.63 £1.36
29	MO112604899/0 Out of stock	Crown Fastener	£1.63 £1.36
30	MO125601555/0 In stock	Pulley	£26.76 £22.30
34	MO325601570/1 Out of stock	Pulley	£23.44 £19.53
35	MO125160018/1 Out of stock	Spacer	£6.50 £5.42
36	MO125160014/1 Out of stock	Spacer	£7.32 £6.10
37	MO112691100/0 Out of stock	Screw	£1.63 £1.36
38	MO112691200/0 Out of stock	Screw	£1.80 £1.50
41	MO182601503/0 Out of stock	Pulley	£97.51 £81.26
42	MO112139430/0 In stock	Key	£1.90 £1.58
43	MO112608950/0 Out of stock	Seeger	£1.63 £1.36
44	MO118400922/1 Out of stock	Transmission Mst 205-535G	£1,405.63 £1,171.36
45	MO112691800/0 Out of stock	Screw	£1.49 £1.24
46	MO119410608/1 Out of stock	Neutral Switch (Mech.)	£59.40 £49.50
47	MO112154210/0 In stock	Nut	£1.80 £1.50
48	MO325774247/0 Out of stock	Bracket	£10.97 £9.14
49	MO112735150/0 Out of stock	Screw	£1.63 £1.36
50	MO112792611/0 Out of stock	Screw	£1.49 £1.24
53	MO112521330/0 Out of stock	Washer	£1.49 £1.24
54	MO112292102/0 In stock	Nut	£1.80 £1.50
55	MO125109521/1 Out of stock	Cover	£1.49 £1.24
74	MO112521410/0 Out of stock	Washer M20 21 X 37 X 3	£1.75 £1.46
