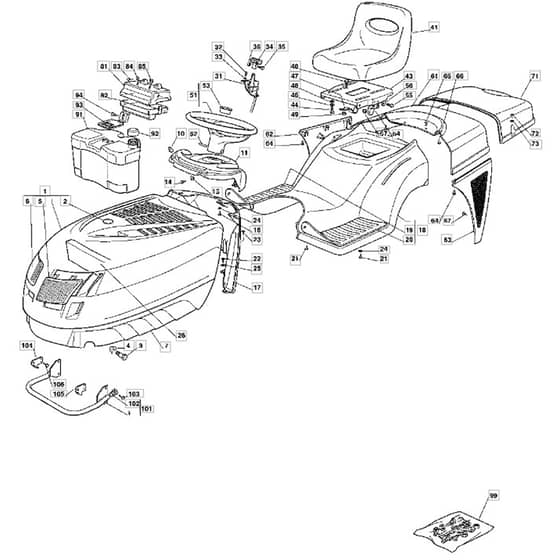

1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Body Diagram

1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Body Diagram
1436M - 2004 - 13-2651-14 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1436M Parts Diagram

Product Name - 1436M

Model Year - 2004

Model Type - NJ 92

Art.N - 13-2651-14

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Engine Hood-Red MO382076841/3
Engine Hood-Red
 Out of stock
£222.79 £185.66

  2 Plate-Red MO325547025/1
Plate-Red
 Out of stock
£1.75 £1.46

  3 Bolt MO125510023/1
Bolt
 Out of stock
£4.91 £4.09

  4 Lock Plate MO112436050/0
Lock Plate
 In stock
£1.75 £1.46

  5 Grill-Lh MO125410861/0
Grill-Lh
 Out of stock
£18.96 £15.80

  6 Grill-Rh MO125410860/0
Grill-Rh
 Out of stock
£18.96 £15.80

  7 Engine Hood-Lower MO125076808/0
Engine Hood-Lower
 Out of stock
£75.85 £63.21

  10 Grommet MO125260000/0
Grommet
 Out of stock
£2.84 £2.37

  14 Screw MO112735110/0
Screw
 Out of stock
£1.49 £1.24

  15 Lock Plate MO112437502/0
Lock Plate
 Out of stock
£1.49 £1.24

  16 Screw MO112735402/0
Screw
 In stock
£1.49 £1.24

  17 Support. Dashboard MO325785053/1
Support. Dashboard
 Out of stock
£98.87 £82.39

  21 Screw MO112735410/0
Screw
 Out of stock
£1.49 £1.24

  23 Screw MO112728705/0
Screw
 Out of stock
£2.58 £2.15

  24 Washer MO112523040/0
Washer
 In stock
£1.63 £1.36

  25 Washer MO112523050/0
Washer
 In stock
£1.49 £1.24

  31 Throttle Control MO182000207/0
Throttle Control
 Out of stock
£32.51 £27.09

  32 Screw MO112788512/0
Screw
 Out of stock
£1.49 £1.24

  33 Washer MO112581200/0
Washer
 Out of stock
£1.90 £1.58

  34 T-Handle MO125394501/0
T-Handle
 Out of stock
£1.49 £1.24

  36 Nut MO112290800/0
Nut
 Out of stock
£1.49 £1.24

  43 Seat Plate MO325547033/1
Seat Plate
 Out of stock
£33.02 £27.52

  44 Screw MO9997-0820-16
Screw
 Out of stock
£1.49 £1.24

  45 Washer MO112583500/0
Washer
 Out of stock
£1.49 £1.24

  46 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  47 Spring MO125430223/2
Spring
 Out of stock
£5.96 £4.97

  48 Screw MO112789000/0
Screw
 Out of stock
£1.49 £1.24

  49 Nut MO112154330/0
Nut
 Out of stock
£1.49 £1.24

  51 Steering Wheel Pos 53 incl. MO125961217/1
Steering Wheel Pos 53 incl.
 Out of stock
£94.81 £79.01

  52 Locating Pin MO112620300/0
Locating Pin
 In stock
£1.75 £1.46

  53 Cap MO325120230/0
Cap
 Out of stock
£2.98 £2.48

  54 Cam MO327063021/1
Cam
 Out of stock
£7.55 £6.29

  55 Screw MO112789100/0
Screw
 Out of stock
£1.49 £1.24

  56 Washer MO112523020/0
Washer
 Out of stock
£1.49 £1.24

  61 Cover-Red MO325110179/1
Cover-Red
 Out of stock
£93.46 £77.88

  62 Guard-R (Black) MO125600033/0
Guard-R (Black)
 Out of stock
£33.86 £28.22

  63 Guard-L (Black) MO125600034/0
Guard-L (Black)
 Out of stock
£33.86 £28.22

  71 Grass Catcher Cover-Red MO325110299/0
Grass Catcher Cover-Red
 Out of stock
£75.11 £62.59

  72 Screw MO112729601/1
Screw
 Out of stock
£1.48 £1.23

  73 Washer MO112521360/0
Washer
 In stock
£1.63 £1.36

  81 Guard-Upper MO125600020/0
Guard-Upper
 Out of stock
£11.92 £9.93

  82 Guard-Lower MO125600021/1
Guard-Lower
 Out of stock
£12.86 £10.72

  83 Screw MO112728460/0
Screw
 Out of stock
£1.49 £1.24

  84 Washer MO112521320/0
Washer
 Out of stock
£1.49 £1.24

  91 Fuel Tank MO125735116/2
Fuel Tank
 Out of stock
£113.82 £94.85

  92 Tank Cap MO125795000/1
Tank Cap
 In stock
£7.08 £5.90

  101 Muffler Protection Pos 102 incl. MO382869006/1
Muffler Protection Pos 102 incl.
 Out of stock
£31.08 £25.90

  102 Cap MO118566110/0
Cap
 Out of stock
£1.49 £1.24

  104 Hood Plate-R MO325547089/1
Hood Plate-R
 Out of stock
£3.92 £3.27

  105 Hood Plate-L MO325547091/1
Hood Plate-L
 Out of stock
£3.92 £3.27
