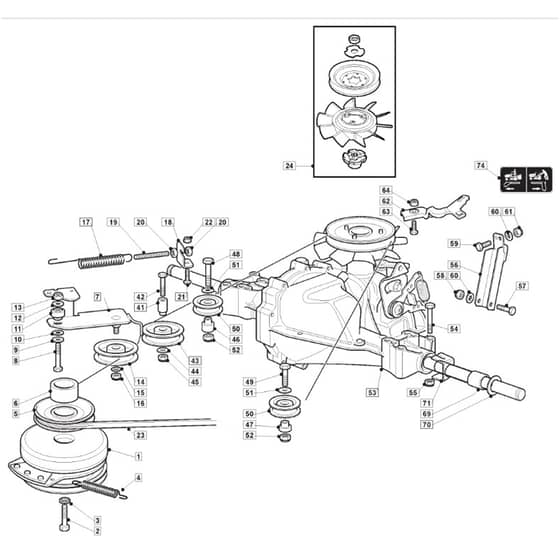

1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Transmission Diagram

1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Transmission Diagram
1436H - 2012-2013 - 2T0420283/MFR - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2012-2013

Model Type - NJS 92 Hydro

Art.N - 2T0420283/MFR

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Electromagnetic Clutch MO118399063/1
Electromagnetic Clutch
 In stock
£328.45 £273.71

  2 Screw MO112737320/0
Screw
 Out of stock
£4.20 £3.50

  3 Washer MO112543000/0
Washer
 Out of stock
£1.49 £1.24

  4 Tension Spring MO122430217/0
Tension Spring
 Out of stock
£9.06 £7.55

  5 Pulley MO125601577/0
Pulley
 Out of stock
£43.33 £36.11

  6 Spacer MO125160021/0
Spacer
 Out of stock
£5.63 £4.69

  7 Lever MO382318217/1
Lever
 Out of stock
£23.44 £19.53

  10 Antifriction Washer MO327670055/0
Antifriction Washer
 Out of stock
£1.90 £1.58

  11 Pin MO125510087/0
Pin
 Out of stock
£4.87 £4.06

  12 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  13 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  14 Pulley MO125601554/0
Pulley
 In stock
£24.71 £20.59

  17 Spring MO125430260/1
Spring
 Out of stock
£6.23 £5.19

  18 Bracket MO325755049/0
Bracket
 Out of stock
£2.98 £2.48

  19 Tie Rod MO125840005/0
Tie Rod
 Out of stock
£2.84 £2.37

  20 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  21 Screw From 01-9-2017 MO9897-0820-16
Screw From 01-9-2017
 Out of stock
£1.90 £1.58

  21 Screw To 31-8-2017 MO112818690/0
Screw To 31-8-2017
 Out of stock
£1.61 £1.34

  22 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

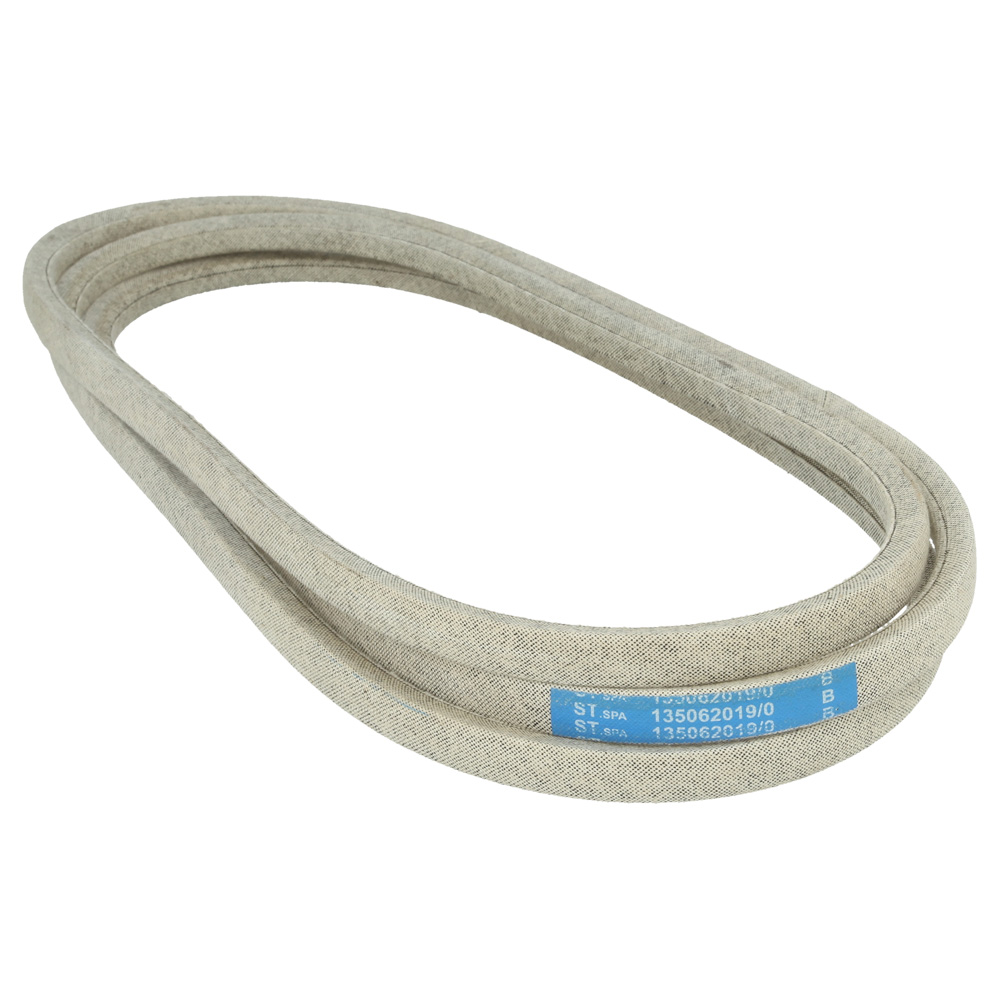

  23 Belt MO135062019/0
Belt
 In stock
£40.57 £33.81

  24 Fan Kit MO118802723/0
Fan Kit
 Out of stock
£155.76 £129.80

  41 Pin From 01-9-2013 MO125160080/0
Pin From 01-9-2013
 Out of stock
£7.72 £6.43

  41 Pin To 31-8-2013 MO125510100/0
Pin To 31-8-2013
 Out of stock
£6.10 £5.08

  42 Screw MO112691800/0
Screw
 Out of stock
£1.49 £1.24

  43 Pulley Bearing hole ø15 From 01-9-2013 MO325601599/0
Pulley Bearing hole ø15 From 01-9-2013
 In stock
£18.42 £15.35

  43 Pulley Bearing hole ø16 To 31-8-2013 MO125601555/0
Pulley Bearing hole ø16 To 31-8-2013
 In stock
£28.18 £23.48

  46 Spacer MO125160024/2
Spacer
 Out of stock
£7.98 £6.65

  47 Left Spacer MO125160030/2
Left Spacer
 Out of stock
£6.23 £5.19

  48 Screw MO112691400/0
Screw
 Out of stock
£1.49 £1.24

  49 Screw MO112691115/0
Screw
 Out of stock
£1.49 £1.24

  50 Pulley MO382601522/0
Pulley
 In stock
£23.02 £19.18

  51 Washer MO122671653/0
Washer
 Out of stock
£1.49 £1.24

  53 Transmission (Hydro-Gear T2-Adbf-2X3C-1Px1) MO118400919/2
Transmission (Hydro-Gear T2-Adbf-2X3C-1Px1)
 Out of stock
£866.88 £722.40

  54 Screw MO112691600/0
Screw
 Out of stock
£1.75 £1.46

  55 Nut MO112154210/0
Nut
 In stock
£1.63 £1.36

  56 Support MO382785199/0
Support
 Out of stock
£25.26 £21.05

  57 Screw MO112691700/0
Screw
 Out of stock
£1.75 £1.46

  59 Screw MO112793701/0
Screw
 Out of stock
£1.49 £1.24

  62 Lever MO325318253/0
Lever
 Out of stock
£4.60 £3.83

  63 Screw MO112791213/1
Screw
 Out of stock
£1.49 £1.24

  69 Spacer MO125160058/1
Spacer
 Out of stock
£3.92 £3.27

  70 Washer MO125670005/2
Washer
 Out of stock
£3.92 £3.27

  71 Washer MO325670025/0
Washer
 Out of stock
£3.92 £3.27

  74 Dump Valve Decal Label [Hydro] MO114361451/0
Dump Valve Decal Label [Hydro]
 Out of stock
£2.98 £2.48


Description

Mountfield 1436H Parts Diagram

Product Name - 1436H

Model Year - 2012-2013

Model Type - NJS 92 Hydro

Art.N - 2T0420283/MFR
